High Flow Double Suction Water Pumps
The CNSME® S serial single stage double-suction centrifugal pump has the high head, large flow characteristics, widely used in engineering. It is late-model energy-saving horizonally spilt pump newly developed by us on the base of the old style double suction pump at home and abroad.
Features
Cast iron, duct alloy, carbon steel,zinc free bronze,silicon brass，stainless steel construction(other materials available upon request)
High efficiency double suction impeller
Durable,low noise,long life bearing
Premium quality mechanical seal
Electric or diesel drive

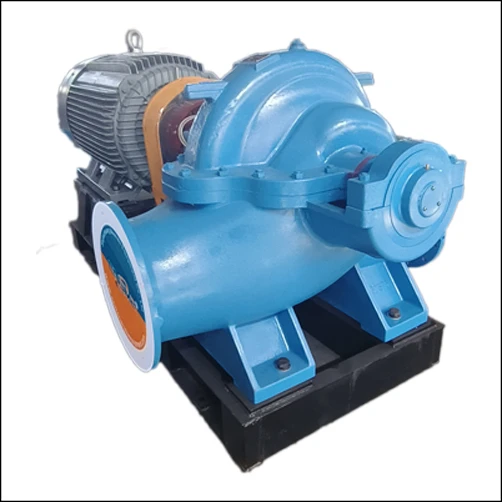

Double Suction Water Pumps picture
Performance Table
Model | Inlet/Outlet(mm) | Capacity（m³/h） | Head(m) | Speed(rpm) | Shaft power(kw) |
150S-78 | 150/150 | 160 | 78 | 2900 | 45 |
150S-50 | 150/150 | 160 | 50 | 2900 | 27.3 |
200S-95 | 200/200 | 280 | 95 | 2900 | 94 |
200S-63 | 200/200 | 280 | 63 | 2900 | 59.3 |
200S-42 | 200/200 | 280 | 42 | 2900 | 37.7 |
250S-65 | 250/250 | 485 | 65 | 1450 | 108.7 |
250S-39 | 250/250 | 485 | 39 | 1450 | 62.1 |
250S-24 | 250/250 | 485 | 24 | 1450 | 36.9 |
250S-14 | 250/250 | 485 | 14 | 1450 | 21.7 |
300S-90 | 300/300 | 790 | 90 | 1450 | 249.8 |
300S-58 | 300/300 | 790 | 58 | 1450 | 148.5 |
300S-32 | 300/300 | 790 | 32 | 1450 | 79 |
300S-19 | 300/300 | 790 | 19 | 1450 | 46.9 |
300S-12 | 300/300 | 790 | 12 | 1450 | 31.1 |
350S-125 | 350/350 | 1260 | 125 | 1450 | 531 |
350S-75 | 350/350 | 1260 | 75 | 1450 | 304 |
350S-44 | 350/350 | 1260 | 44 | 1450 | 177.6 |
350S-26 | 350/350 | 1260 | 26 | 1450 | 101.5 |
350S-16 | 350/350 | 1260 | 16 | 1450 | 63.8 |
500S-13 | 500/500 | 2020 | 13 | 980 | 86.2 |
500S-35 | 500/500 | 2020 | 35 | 980 | 219 |
500S-98 | 500/500 | 2020 | 98 | 980 | 678 |
600S22 | 600/600 | 3241 | 22 | 980 | 231.8 |
600S75 | 600/600 | 3060 | 75 | 980 | 694.4 |
800S32 | 800/800 | 5500 | 32 | 730 | 538.5 |
800S47 | 800/800 | 5500 | 47 | 730 | 782.2 |
