Brand: CNSME
Model Number: SV(R)/100R
Certificate: CE/ISO
Place of Origin: Hebei,China
Minimum Order Quantity: 1set
Delivery Time: 10-14 days
Payment Terms: T/T 100% deposit
Packaging Details: Wooden crate
Series:Vertical Slurry Pumps
General Introduction:

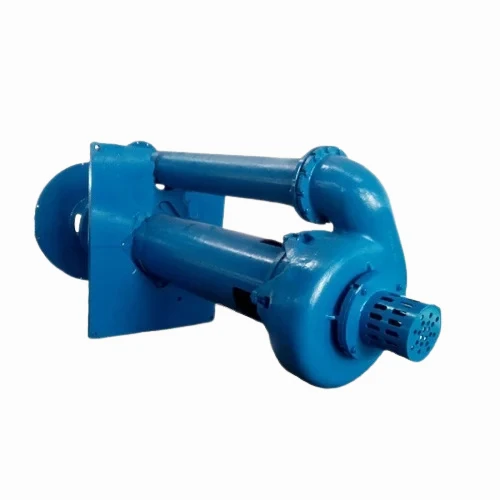

▶ Our SV/SVR series vertical slurry pumps are heavy duty cantilever sump pumps and abrasion/corrosion resistant pumps for extended wear life and reliability in sumps or pits.
▶They are designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer.
▶The heavy duty cantilever design makes the SME sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.
▶This heavy duty rage fetures a cantilever shaft design that eliminates any seals in the fluid end.
▶A full range of material options including complete elastomer lined pumps and hard metal options for corrosive and abrasive media duties.
▶They are ideal for corrosive coarse particles and high concentrations of slag pulp and are widely used in the metallurgicial, mining and coal industries.
Applications:
Minerals processing,Coal preparation,Chemical processing,Effluent handling,Sand and gravel
Specifications:
| Pump Model | S×D (mm) | Allowable Max. Power (kw) | Material | Clear Water Performance | Impeller | ||||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Length Shaft (mm) | No. of Vanes | Vane Dia. (mm) | |||||
| Impeller | m3/h | l/s | |||||||||
| SV/40P | 80×40 | 15 | Metal (A05) | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 |
| SV/65Q | 120×65 | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | ||
| SV/100R | 175×100 | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 1500 | 390 | ||
| SV/150S | 240×150 | 110 | 108-479.16 | 30-133.1 | 8.5-40 | 500-1000 | 52 | 1800 | 480 | ||
| SV/200S | 320×200 | 110 | 189-891 | 152.5-247.5 | 6.5-37 | 400-850 | 64 | 2100 | 550 | ||
| SV/250T | 200 | 180-1080 | 50-300 | 10-35 | 400-750 | 60 | 2400 | 605 | |||
| SV/300T | 200 | 180-1440 | 50-400 | 5-30 | 350-700 | 62.1 | 2400 | 610 | |||
| Pump Model | S×D (mm) | Allowable Max. Power (kw) | Material | Clear Water Performance | Impeller | ||||||
| Capacity Q | Head H(m) | Speed n(r/min) | Max.Eff. η% | Length Shaft (mm) | No. of Vanes | Vane Dia. (mm) | |||||
| Impeller | m3/h | l/s | |||||||||
| SVR/40P | 80×40 | 15 | Rubber (R55) | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 |
| SVR/65Q | 120×65 | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | ||
| SVR/100R | 175×100 | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 1500 | 390 | ||
| SVR/150S | 240×150 | 110 | 72-504 | 20-140 | 10-35 | 500-1000 | 56 | 1800 | 480 | ||
Configuration:
Our vertical slurry pumps shaft length can be custom-designed. Other than the standard shaft length, we can extend the shaft to the required length to suit the pits.
DC: The pump and the engine is directlyconnetced by a coupling.
Belt-driven Types: The pump and the engine is connetced by pulleys and belts --- BD.
