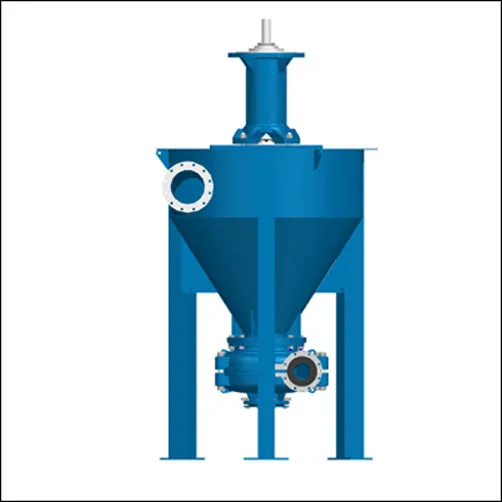

AF Vertical Froth Pump

Discharge size range: 50mm to 200mm [2’’ to 8’’]

Flowrates to: 570m3/hr [2,500GPM]

Heads to: 30m [98ft]

Choose a matching froth pump to contact us

    oops...!

    no product data.

    Go to homepage

    KEY FEATURES

    FROTH PUMPIntegrated unit for layout flexibility

    FROTH PUMPSmooth operation of the open vortex created in the sump and vertical “wet end”  inlet prevents air locking

    FROTH PUMPCantilever design does not require submerged bearings or shaft seals

    FROTH PUMPThe conical tank design with its tangential inlet creates an open vortex

    FROTH PUMPWear resistant wet-end parts guarantees a long performance life

    FROTH PUMPPump shaft is carried in grease lubricated anti-friction bearings

    FROTH PUMP QUICK SELECTION

    Specifications

    Model

    Power

    Capacity

    Head

    Speed

    Eff.

    Inlet dia.

    Outlet dia.

    P(KW)

    Q(m3/h)

    H(m)

    n(r/min)

    ŋ%

    (mm)

    (mm)

    2QV-AF

    3-15

    6-43

    6-30

    800-1800

    45

    100

    50

    3QV-AF

    3-18.5

    23-78

    5-28

    700-1500

    55

    150

    75

    4RV-AF

    5.5-37

    33-187

    5-28

    500-1050

    55

    150

    100

    6SV-AF

    15-75

    80-393

    5-25

    250-680

    55

    200

    150

    8SV-AF

    37-110

    126-575

    5-26

    350-650

    55

    250

    200

    Structure of AF VERTICAL FROTH PUMP

    1 (80)
    1 (80)
    2 (64)
    2 (64)

    CONSTRUCTION OF AF VERTICAL FROTH PUMP

    图片 拷贝 (5)

    Application

    Froth pump 拷贝 2
    Froth pump 拷贝 2
    微信图片_20241212135346 拷贝
    微信图片_20241212135346 拷贝
    照片 003 拷贝
    照片 003 拷贝
