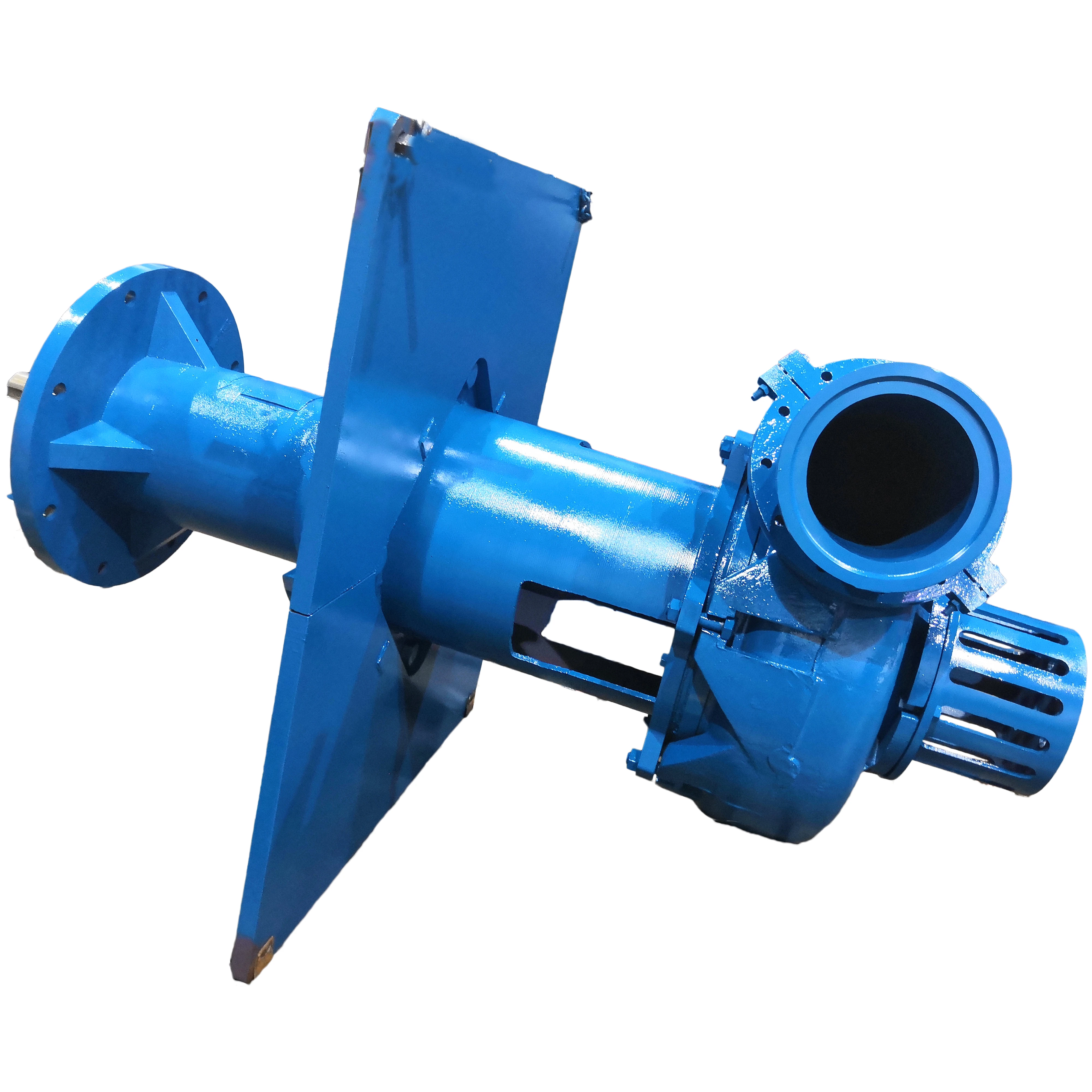

Product Advantages
High power and large flow
Maximum power 200KW: capable of handling high load conditions, suitable for slurry conveying with high flow rate and high head.
Discharge 250mm, Suction 270mm: large diameter inlet and outlet design ensures high flow rate conveying and reduces the risk of clogging.
Abrasion resistant design
Metal Material Sheath and Impeller: Highly wear-resistant metal materials are used to prolong the service life and reduce the need for maintenance.
Open impeller design: suitable for conveying slurry containing solid particles, reducing clogging and facilitating maintenance and cleaning.
High-efficiency impeller design
5 impeller blades: optimize fluid dynamics, improve pump efficiency and reduce energy consumption.
Impeller outer diameter 575mm: larger impeller diameter provides higher head and flow rate, adapting to complex working conditions.
High speed and stable operation
Maximum speed 750rpm: high speed design improves the pump's conveying capacity and adapts to high load conditions.
No shaft seal design: no need for shaft seal and shaft seal water, reduce maintenance and operating costs, avoid leakage problems.
Specifications
Specifications of SP(R) Series Vertical Slurry Pumps |
|||||||||||
Model |
Frame |
Max. |
Sump |
Performance for Clear Water |
Impeller |
||||||
Capacity Q |
Head |
Speed |
Efficiency |
Type |
No. of |
Vane Φ |
Passage |
||||
m3/hr |
m |
r/min |
% |
||||||||
40PV-SP |
PV |
15 |
900 |
10--44 |
5--28 |
1000-2200 |
20-40 |
Open |
5 |
188 |
12 |
10--40 |
9--37 |
1400-2600 |
15-32 |
Cyclo |
8 |
195 |
26 |
||||
40PV-SPR |
PV |
15 |
900 |
10--50 |
8--52 |
1200-3000 |
20-40 |
Open |
5 |
188 |
12 |
65QV-SP |
QV |
30 |
1200 |
20--120 |
4--56 |
600-2000 |
25-51 |
Open |
5 |
280 |
15 |
20--110 |
5--28 |
700-1500 |
20-35 |
Cyclo |
8 |
290 |
40 |
||||
65QV-SPR |
QV |
30 |
1200 |
20--100 |
8--46 |
700-850 |
20-47.5 |
Open |
5 |
280 |
23 |
100RV-SP |
RV |
75 |
1500 |
50--300 |
6--50 |
500-1400 |
20-56 |
Open |
5 |
370 |
32 |
50--250 |
6--31 |
600-1200 |
20-40 |
Cyclo |
8 |
390 |
70 |
||||
100RV-SPR |
RV |
75 |
1500 |
50--270 |
9--46 |
600-1400 |
30-60 |
Open |
5 |
370 |
40 |
150SV-SP |
SV |
110 |
1800 |
100--500 |
7--37 |
500-1000 |
20-55 |
Open |
5 |
450 |
45 |
100--450 |
7--37 |
500-1000 |
20-40 |
Cyclo |
8 |
480 |
80 |
||||
150SV-SPR |
SV |
110 |
1800 |
100--450 |
7--35 |
500-1000 |
20-56 |
Open |
5 |
450 |
45 |
200SV-SP |
SV |
110 |
1800 |
200--800 |
7--38 |
400-850 |
30-64 |
Open |
5 |
520 |
65 |
250TV-SP |
TV |
200 |
1800 |
300--1000 |
8--35 |
400-750 |
20-63 |
Open |
5 |
575 |
65 |
300TV |
TV |
200 |
2100 |
360--1400 |
5--28 |
350-700 |
20-62 |
Open |
5 |
610 |
65 |
Material Options of Wet end Parts: A05, A33, A49, A61, R55 |
CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps
Dimension Drawing
Structure Characteristics
Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry. Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.
