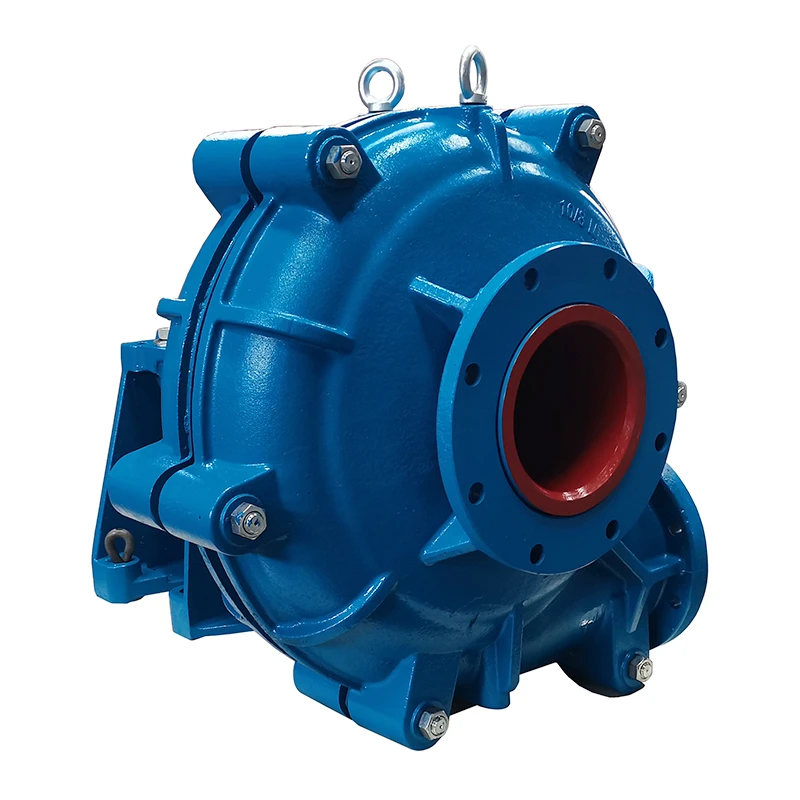

10/8E-M light slurry pump

10/8E-M light slurry pump is a kind of L type slurry pump, which is widely used in many industries, such as beneficiation, metallurgy, coal and building materials. It has the structural characteristics of cantilever and horizontal centrifugal slurry pump. The outlet position can be installed and used at 45 ℃ intervals and rotated at eight different angles as needed, which provides great flexibility for on-site installation.

Structural Features
Cantilever Horizontal Design: It adopts cantilever structure, and the overall layout is compact, which is convenient for installation and maintenance.
Rotatable Outlet: The position of the outlet can be installed at eight different angles at intervals of 45℃ according to the needs of the actual working conditions with strong adaptability.

Inquiry

Write a Review

Material Features

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Wear Resistant Liner: The pump body has replaceable wear resistant metal liner or rubber liner, which can effectively resist wear and extend the service life of the pump.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Wet-end Parts: Impellers, Volute Liner, frame plate liner insert and other wet-end parts are made of wear resistant metal or rubber materials. According to the needs of different working conditions, suitable materials can be selected to improve the wear resistance and corrosion resistance of the pump.

High Speed, Small Volume, Light Weight

Compared with heavy-duty slurry pump, the 10/8E-M light slurry pump has high speed, small volume, light weight, and more flexible and efficient operation.

Wide Range Of Application

It is suitable for delivering fine particles, low-concentration slurry or corrosive slurry, which can meet the transportation needs under a variety of working conditions. The weight concentration of the conveying slurry generally does not exceed 30%, and it can also be used to transport high-concentration and low-abrasive slurry.

Specifications

Model	Allowable	Clear Water Performance
	Max. Power	Capacity Q		Head H	Speed n	Eff. η	NPSH	Impeller Dia.
	(kw)	m3/h	l/s	(m)	(r/min)	(%）	(m)	(mm)
10/8E-M	120	234-910	65-235	9.5-40	600-1100	64	3-6	457

Structure Of 10/8E-M light slurry pump

图片拷贝

jiegou 拷贝 (2)

Construction Of 10/8E-M light slurry pump

Dimension Drawing

Drive Models

The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

Sealing System

Packing Seal

Expelelr Seal
