● Flow rate :50-400m3/hr
● Head H(m): 40-100
● Speed: 980-1480rpm
● Efficiency:Max78%
● Materials: Impeller A05
● Power: Max 300Kw
● Impeller Dia(mm):500
● Color: Depend on customers’ requirements
● Warranty: 1 year Warranty (except wet-end parts)
Introduction:

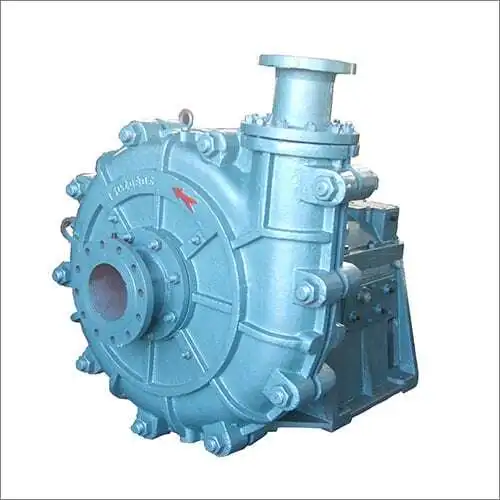

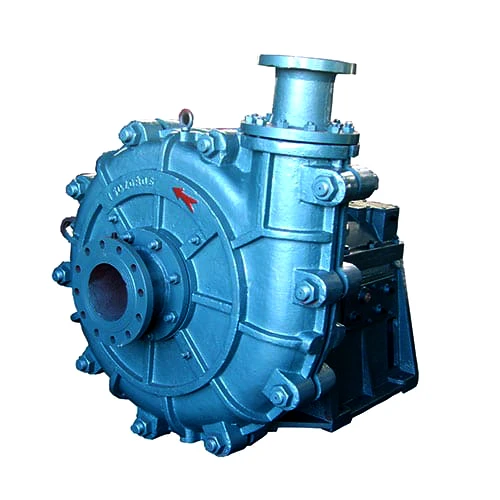

ZGB is our successful abrasive resistant slurry handling pump and combines effective expeller seal with good hydraulic efficiency. From design to installation and beyond, SME engineers are available to give advice on your slurry pumping needs and problems. The ZGB range has been designed to offer a wide choice of pump sizes to suit more slurry pumping applications.
ZGB series slurry pump is a horizontal, single stage, single suction, cantilever, double pump shell, centrifugal slurry pump.
Over-current components can exchange ZGB and ZGBP type slurry pump the same caliber. Dimensions are identical. The transmission part ZGB series slurry pump adopt open standards thin oil lubrication carrier, and is provided with two groups of cooling sys,.
When necessary, cooling water.
Shaft seal type ZGB series slurry pump has two types: expeller seal combined with packing and mechanical seals.
Specifications:
| Model | 100ZGB |
| Capacity | 50-400m3/h |
| TDH | 40-100m |
| Max. Allowable Motor Power | 300Kw |
| Speed | 980r/min or 1480r/min |
| Max. Efficiency | 78% |
| Lubrication | Oil |
Construction of ZGB Slurry Pump:
Materials:
| Description of Parts | Material | Material Code |
| Pump Body, Split-Casing | Grey Iron | G20/G21 |
| Ductile Iron | D20/D21 | |
| Impeller, Volute, Wear Liners, Expeller, Expeller Ring, Stuffing Box | 27% High Chrome | A05 |
| 15/3 Chrome/Moly Iron | A07 | |
| Corrosion-resistant 35% Chrome | A33 | |
| 28% High Chrome, Low Carbon | A49 | |
| Shaft | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Shaft Sleeve | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Aluminum Oxide Coating, White | J04 | |
| Chrome Oxide Coating, Black | J05 |
Standard Configuration:
| Shaft seal type: | Expeller Seal |
| Discharge direction: | Upright |
| Connection type: | Customized (Coupling or Belts) |
| Pump color: | Blue |
| Package: | Fumigation-free wooden Box |
Typical Applications:
Bottom/Fly Ash
Coal Washing
Power Plants
Potash Fertilizer Plant
Iron Ore Dressing Plant
Gold Mine Concentration Plant
Performance Curve:
Projects of ZGB Heavy Duty Slurry Pump:
