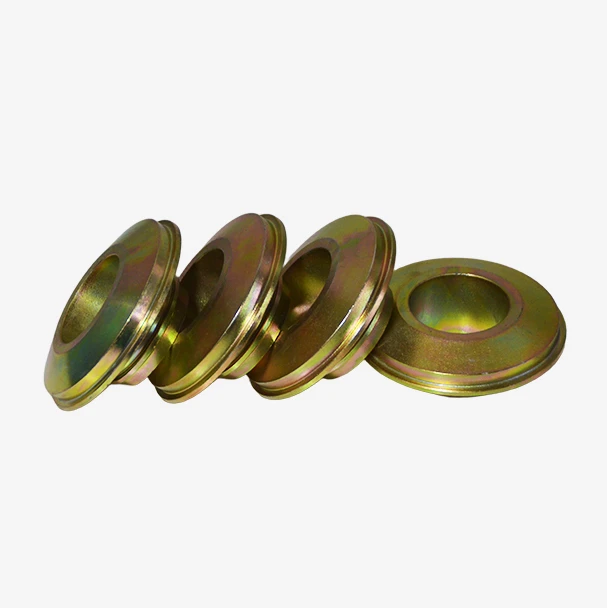

Slurry Pump Labyrinth

Labyrinth seal in the leakage channel with multiple “teeth” or grooves to increase the resistance in the leakage flow. When the leakage channel at both ends of the pressure difference between all the loss, then can realize the non-leakage, labyrinth seal has the features：

1) The normal seal can not be competent for high temperature、high pressure、high speed and large size seal is particularly effective.

2) Good sealing, especially suitable for high-speed sealing.

3) Processing、assembly is good, usually do not need maintenance.

4) Frictionless, low power consumption, long service life.
