Slurry Pump Base

A slurry pump base is usually located at the bottom of the pump or as part of a support structure fixed to the pump's frame or base. It is usually connected to key components such as the motor, pump casing, and bearings.

The slurry pump base is the foundation of the pump system, which directly affects the pump's stability, service life, and operating efficiency. Therefore, special attention must be paid to support, alignment, and safe installation details during installation.

Inquiry

Write a Review

Slurry Pump Base Installation Method and Details

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Installation Location: The base should be installed on a flat, solid surface to ensure the entire pump remains level during operation. If the base is unstable, it can affect the pump's performance and service life.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Fastening: During installation, the base must be bolted securely to the ground or support frame. Bolts should be tightened to the specified torque to prevent loosening.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Alignment: The pump shaft and motor shaft must be precisely aligned to ensure smooth operation and avoid unnecessary wear or abnormal vibration.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Vibration Isolation: In high-vibration environments, rubber pads or other vibration isolation devices can be used to minimize the impact of vibrations on other pump components.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Inspection and Maintenance: After installation, the base and connected components should be regularly inspected to ensure they are not loose or damaged, preventing any adverse effects on pump operation.

Specifications

The slurry pump base is generally not damaged and is not a wear part.

Base frame	A	B	C	D	E	R	F	G	S	T
Allowable matching power （Kw）	7.5	15	30	60	120	300	260	600	560	1200
Base weight （Kg）	17	24	45	77.5	154	228	555	1006	546	1156
Shaft seal water volume （I/s）	0.15	0.25	0.35	0.55	0.70	0.70	0.70	1.20	1.20	1.60

Product display

DSC_0078 拷贝

DSC_0082 拷贝

DSC_0020 拷贝

003M2 拷贝

Slurry pump base part code

Frame Code	AH Slurry Pump	Materials
B003M	1.5/1B-AH, 2/1.5B-AH	HT250, QT500
C003M	3/2C-AH, 4/3C-AH	HT250, QT500
D003M	4/3D-AH, 6/4D-AH	HT250, QT500
E003M	6/4E-AH, 8/6E-AH	HT250, QT500
R003M	8/6R-AH	HT250, QT500

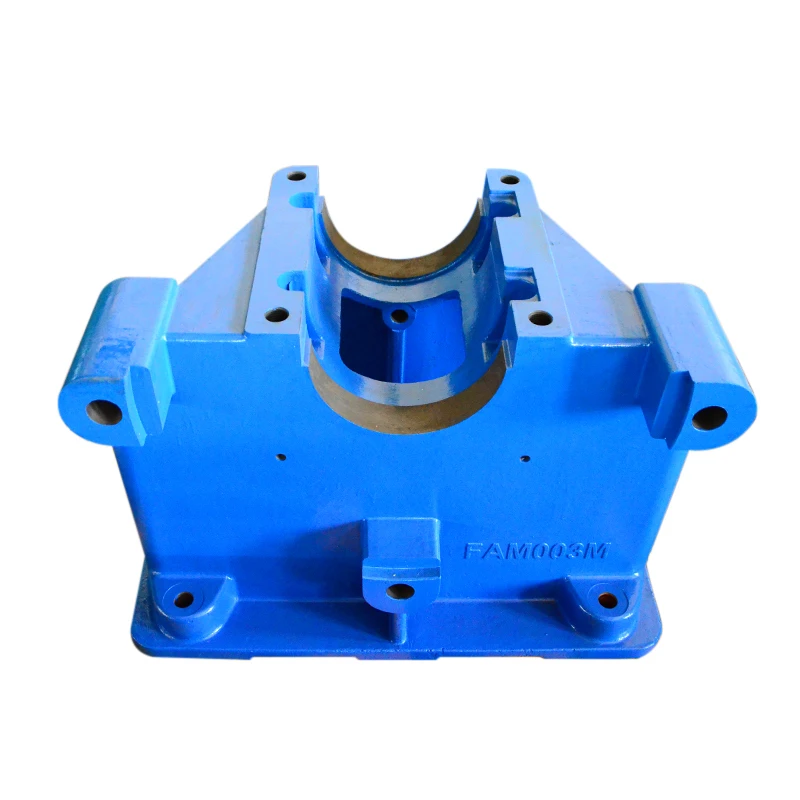

FAM003M	8/6F-AH, 10/8F-AH, 12/10F-AH	HT250, QT500
ST003M	10/8ST-AH, 12/10ST-AH, 14/12ST-AH	HT250, QT500
TU003	16/14TU-AH, 18/16TU-AH, 20/18TU	HT250, QT500
Frame Code	HH Slurry Pump	Materials
C003M	1.5/1C-HH	HT250, QT500
D003M	3/2D-HH	HT250, QT500
E003M	4/3E-HH	HT250, QT500
F003M	6/4F-HH	HT250, QT500
Frame Code	M Slurry Pump	Materials
E003M	10/8E-M	HT250, QT500
R003M	10/8R-M	HT250, QT500
Frame Code	L Slurry Pump	Materials
A003M	20A-L	HT250, QT500
B003M	50B-L	HT250, QT500
C003M	75C-L	HT250, QT500
D003M	100D-L	HT250, QT500
E003M	150E-L	HT250, QT500
S003M	300S-L	HT250, QT500
Frame Code	G(H) Gravel Pump	Materials
D003M	6/4D-G	HT250, QT500
E003M	8/6E-G	HT250, QT500
F003M	10/8F-G	HT250, QT500
S003M	10/8S-G, 10/8S-GH	HT250, QT500
G003M	12/10G-G, 14/12G-G, 12/10G-GH	HT250, QT500
TU003	16/14TU-GH	HT250, QT500
