Product Advantages

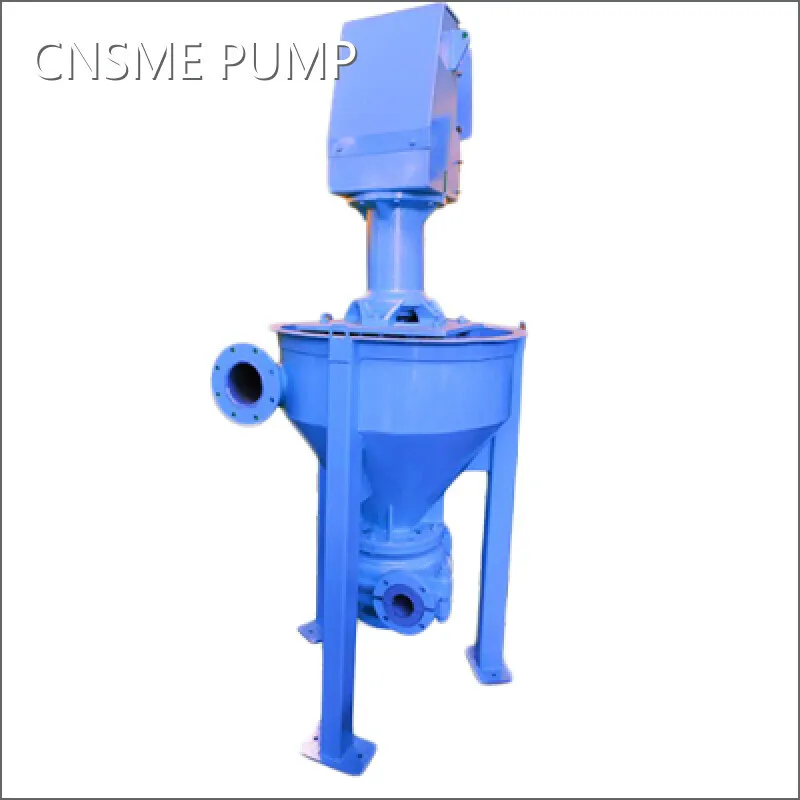

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Efficient froth Removal: 6SV-AF vertical froth pump can effectively eliminate the froth in the slurry during work, and can still work normally even when the feed is insufficient. It is especially suitable for various flotation processes and is an ideal product for transporting froth slurry.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Advantage Tank Design: The tank is made of steel structure or stainless steel, etc., and is equipped with a tangent entrance and overflow nozzle. The overflow nozzle can conveniently send the excess incoming material back to the tank, and the tangent entrance can quickly allow the material to enter the pump and eliminate part of the froth.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Double Casing Structure: The pump head structure is a double casing structure. Depending on the conveying medium, the wet-end parts can be made of metal, rubber or other non-metallic materials. This design not only improves the durability of the pump, but also adapts to the conveying needs of different media.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong Self-suction Ability: The 6SV-AF froth pump has excellent self-suction ability, which can quickly inhale and transport the froth mixture without an external water transfer device. This feature makes the pump more flexible and reliable in the complex and changeable field environment, reducing the complexity of installation and operation.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Easy To Maintain: The design of the 6SV-AF froth pump considers ease of maintenance, and many key parts such as bearings, seals, etc., can be easily disassembled and replaced. In addition, the frame plate is compact, which is easy to clean and inspect, reducing the difficulty and cost of maintenance.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 6SV-AF froth Pump Performance Parameters

Specifications

Model	Power	Capacity	Head	Speed	Eff.	Inlet dia.	Outlet dia.
Model	P(KW)	Q(m3/h)	H(m)	n(r/min)	ŋ%	(mm)	(mm)
2QV-AF	3-15	6-43	6-30	800-1800	45	100	50
3QV-AF	3-18.5	23-78	5-28	700-1500	55	150	75
4RV-AF	5.5-37	33-187	5-28	500-1050	55	150	100
6SV-AF	15-75	80-393	5-25	250-680	55	200	150
8SV-AF	37-110	126-575	5-26	350-650	55	250	200

Structure of 2QV-AF VERTICAL FROTH PUMP

1 (80)

2 (64)

CONSTRUCTION OF 2QV-AF VERTICAL FROTH PUMP

DIMENSION DRAWING

Application

Froth pump 拷贝 2

微信图片_20241212135346 拷贝

照片 003 拷贝

Company Advantages

· The production of CNSME PUMP froth pump suppliers is supported by a professional technical team.

· The product is durable and can be used for a long time.

· Shijiazhuang Minerals Equipment Co., Ltd. has good after-sales service support and sincere service concept for froth pump suppliers.

Company Features

· Shijiazhuang Minerals Equipment Co., Ltd. is well established in froth pump suppliers industry.

· Shijiazhuang Minerals Equipment Co., Ltd. has many experienced middle and senior technical personnel.

· We work hard to understand the customer's schedule and needs. We strive to add value through the superior capabilities we manage and communicate in each project. Get price!

Application of the Product

CNSME PUMP's froth pump suppliers is widely applicable in the industry.

While providing quality products, CNSME PUMP is dedicated to providing personalized solutions for customers according to their needs and actual situations.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
