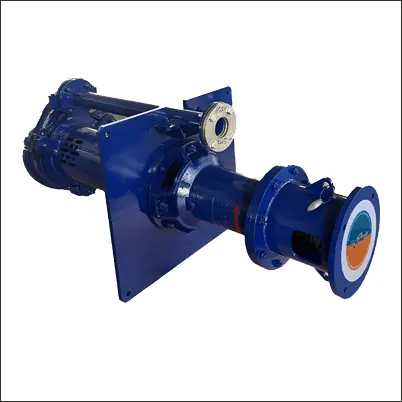

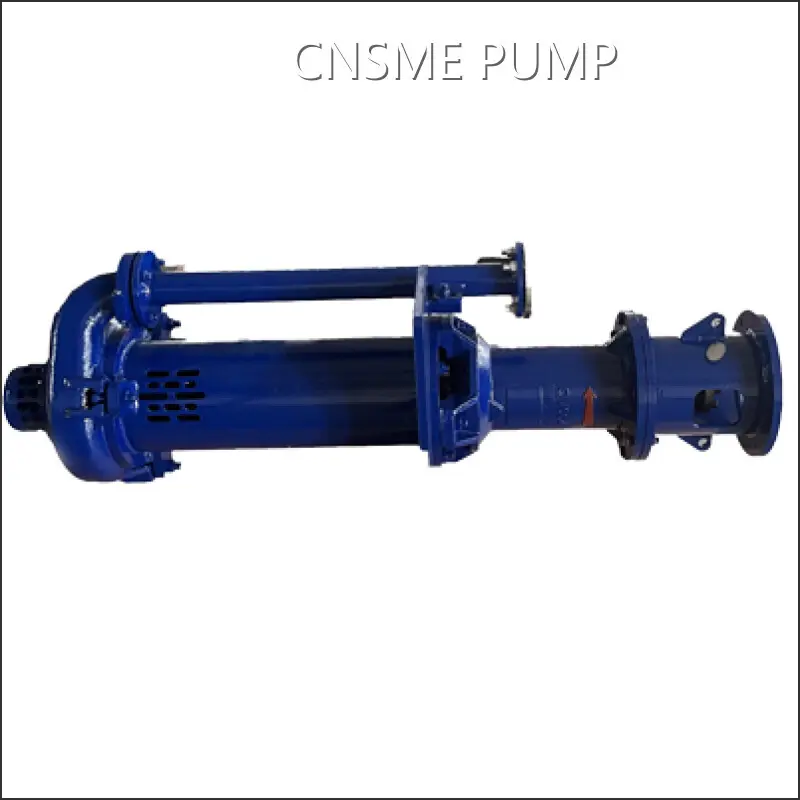

Submersible Centrifugal Pump for Sale

Inquiry

Product Advantages

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Compact and small footprint

Vertical design makes it occupy less space, suitable for occasions with limited space.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Highly efficient wear-resistant

Made of wear-resistant materials, it can effectively resist abrasion and prolong service life, especially suitable for conveying slurry with high concentration and high abrasion.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Easy installation and maintenance

Vertical structure simplifies the installation process, and the main parts are easy to disassemble, maintenance and overhaul is more convenient.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Stable operation, low vibration

Reasonable design, low vibration and noise during operation, ensuring smooth operation and reducing damage to the equipment.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong adaptability

It can handle a variety of media, including high concentration slurry, corrosive liquids, etc. It is widely used in mining, metallurgy, electric power and other industries.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Energy saving and high efficiency

Optimized design improves hydraulic efficiency, reduces energy consumption, and has lower operating costs.

Specifications

Specifications of SP(R) Series Vertical Slurry Pumps
Model	Frame Type	Max. Rating (kW)	Sump Depthmm	Performance for Clear Water				Impeller
				Capacity Q	Head	Speed	Efficiency	Type	No. of Vanes	Vane Φmm	Passagemm
				m3/hr	m	r/min	%	Type	No. of Vanes	Vane Φmm	Passagemm
40PV-SP	PV	15	900	10--44	5--28	1000-2200	20-40	Open	5	188	12
40PV-SP	PV	15	900	10--40	9--37	1400-2600	15-32	Cyclo	8	195	26
40PV-SPR	PV	15	900	10--50	8--52	1200-3000	20-40	Open	5	188	12
65QV-SP	QV	30	1200	20--120	4--56	600-2000	25-51	Open	5	280	15
65QV-SP	QV	30	1200	20--110	5--28	700-1500	20-35	Cyclo	8	290	40
65QV-SPR	QV	30	1200	20--100	8--46	700-850	20-47.5	Open	5	280	23
100RV-SP	RV	75	1500	50--300	6--50	500-1400	20-56	Open	5	370	32
100RV-SP	RV	75	1500	50--250	6--31	600-1200	20-40	Cyclo	8	390	70
100RV-SPR	RV	75	1500	50--270	9--46	600-1400	30-60	Open	5	370	40
150SV-SP	SV	110	1800	100--500	7--37	500-1000	20-55	Open	5	450	45
150SV-SP	SV	110	1800	100--450	7--37	500-1000	20-40	Cyclo	8	480	80
150SV-SPR	SV	110	1800	100--450	7--35	500-1000	20-56	Open	5	450	45
200SV-SP	SV	110	1800	200--800	7--38	400-850	30-64	Open	5	520	65
250TV-SP	TV	200	1800	300--1000	8--35	400-750	20-63	Open	5	575	65
300TV	TV	200	2100	360--1400	5--28	350-700	20-62	Open	5	610	65
Material Options of Wet end Parts: A05, A33, A49, A61, R55

CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps

Dimension Drawing

Specifications

Structure Characteristics

Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry. Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

三维图拷贝 2

外形图拷贝 2

pump used in slovakia (1) 拷贝

pump used in slovakia 拷贝

Application

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Mining: Pumping slurry, improving the efficiency of ore processing

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Chemical Industry: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.

Company Advantages

· The raw materials of CNSME PUMP submersible centrifugal pump are highly secured by selecting reliable suppliers.

· The product is durable and functions very well during its long service life.

· Shijiazhuang Minerals Equipment Co., Ltd. has been equipped with the advantages of submersible centrifugal pump market development.

Company Features

· Shijiazhuang Minerals Equipment Co., Ltd., incorporated years ago, is a developer, manufacturer, and supplier of submersible centrifugal pump. We have earned a reputation through years of accumulated expertise.

· The wide variety of professional people drives our competitiveness. Their technical and business know-how in the submersible centrifugal pump industry enables the company to support customers in the most demanding areas successfully.

· We are committed to sustainable development. In addition to the good feeling we get, our sales actually increase through our good work. Inquire online!

Application of the Product

CNSME PUMP's submersible centrifugal pump can be used in many industries.

With a focus on customers, CNSME PUMP analyzes problems from the perspective of customers. And we provide customers with comprehensive, professional and excellent solutions.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
