Product details of the sand pump supplier

Quick Detail

The production of CNSME PUMP sand pump supplier is highly efficient. The overall performance of the product has been significantly improved after years of efforts in R&D. CNSME enjoys high popularity and brand reputation among their rivals of the same trade from home and abroad.

Product Description

CNSME PUMP's sand pump supplier has been further improved based on advanced technology, as reflected in the following aspects.

Design Features

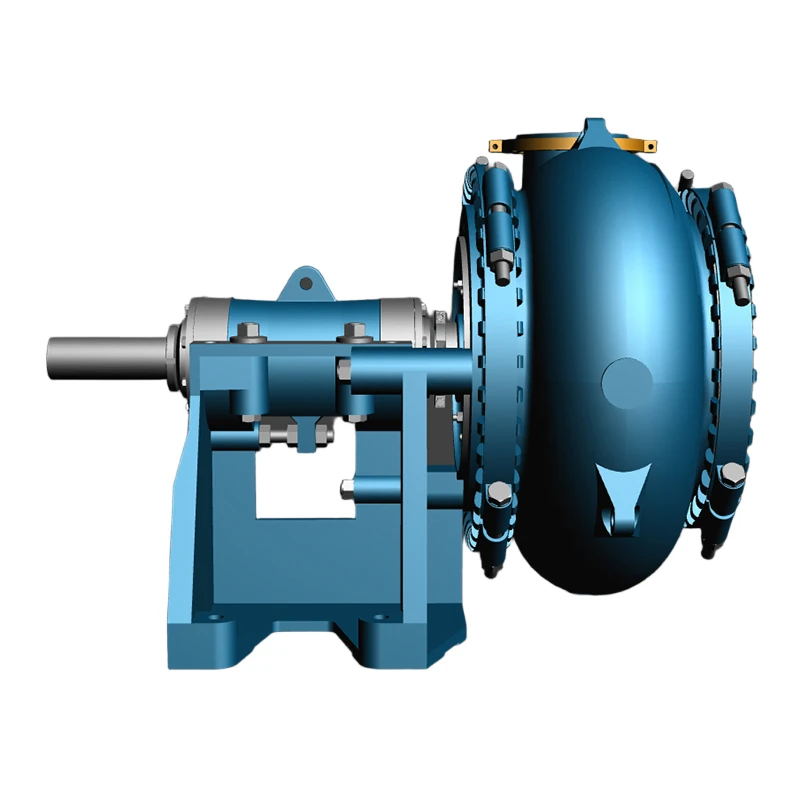

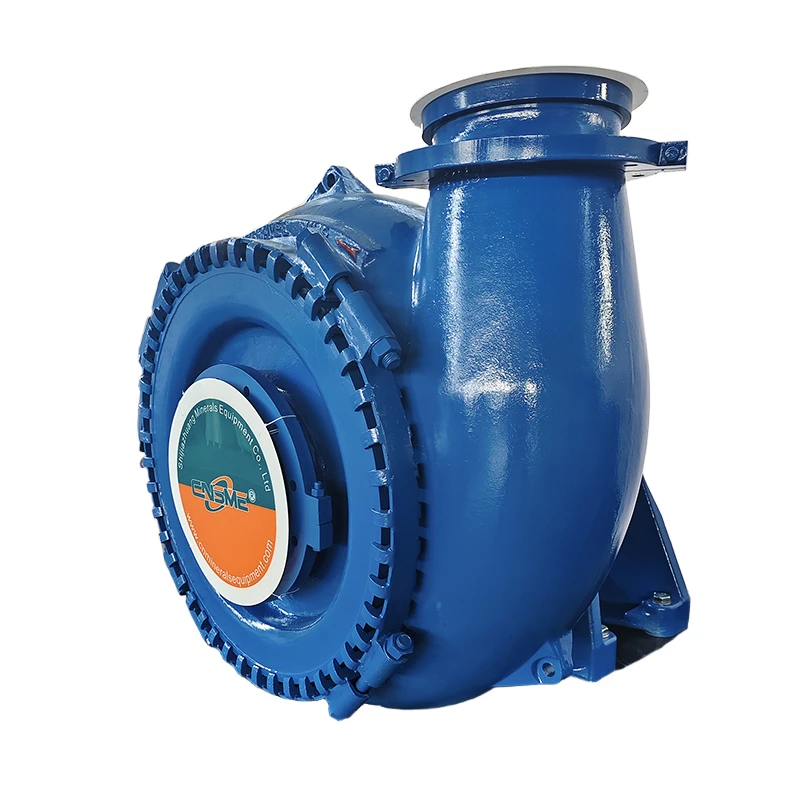

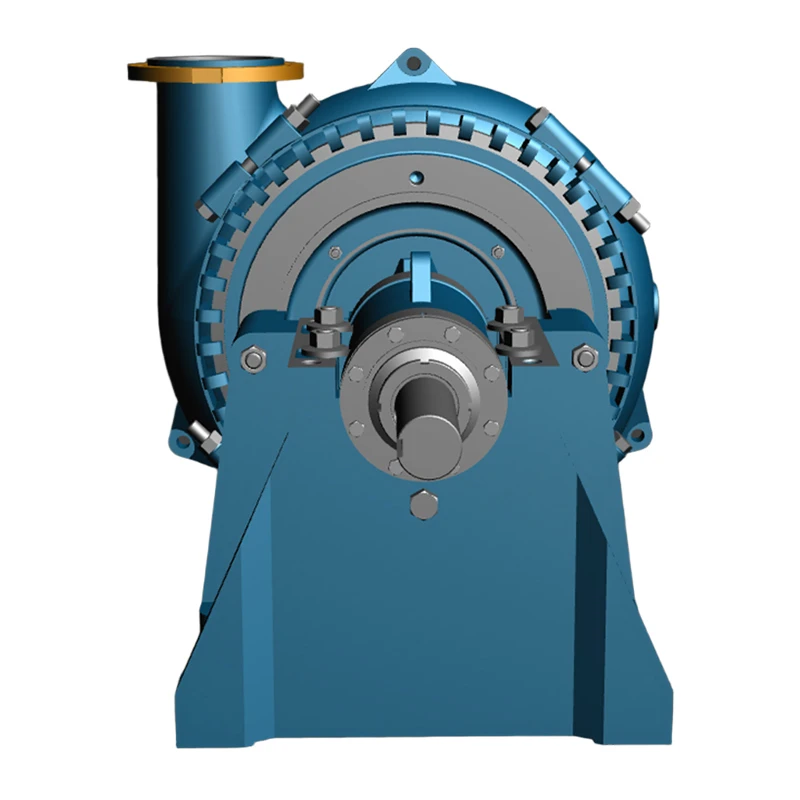

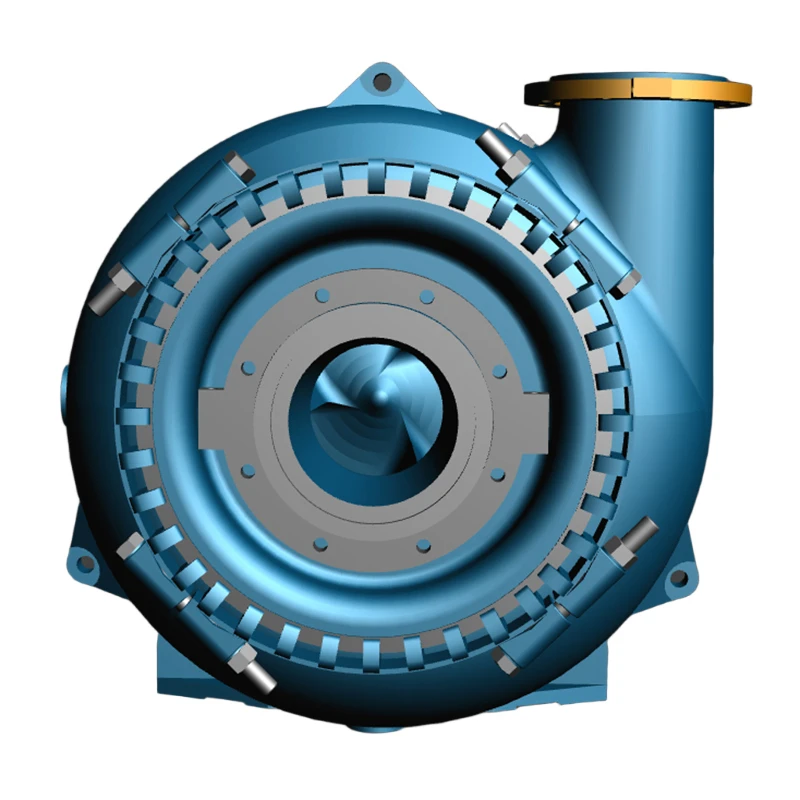

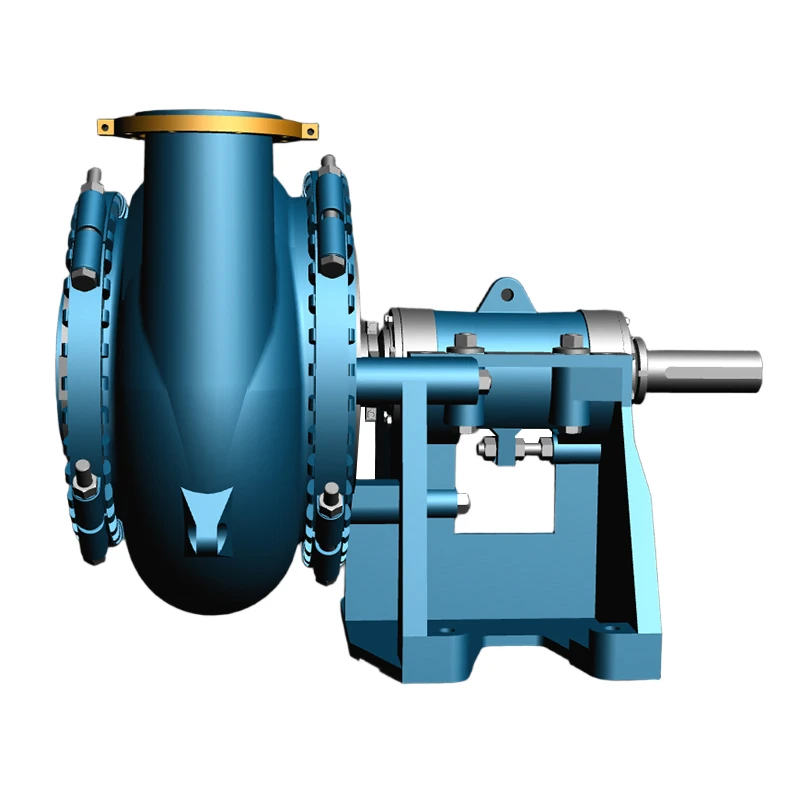

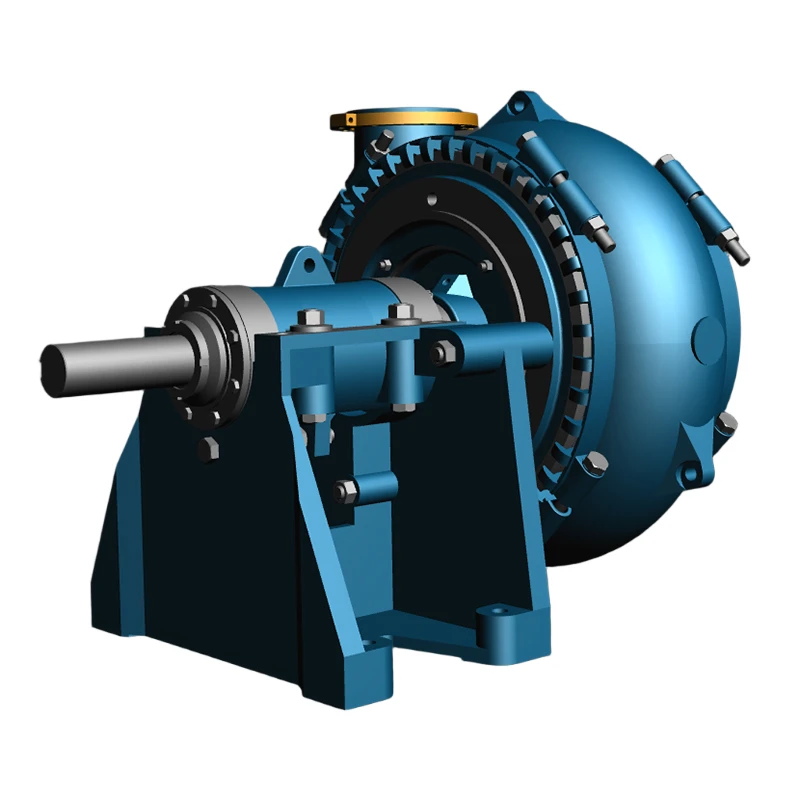

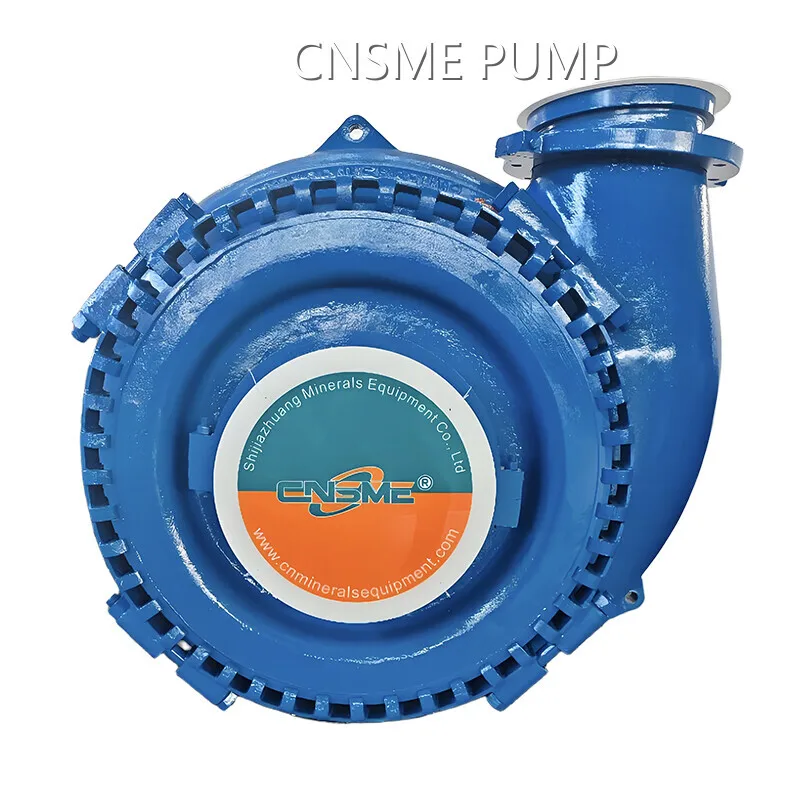

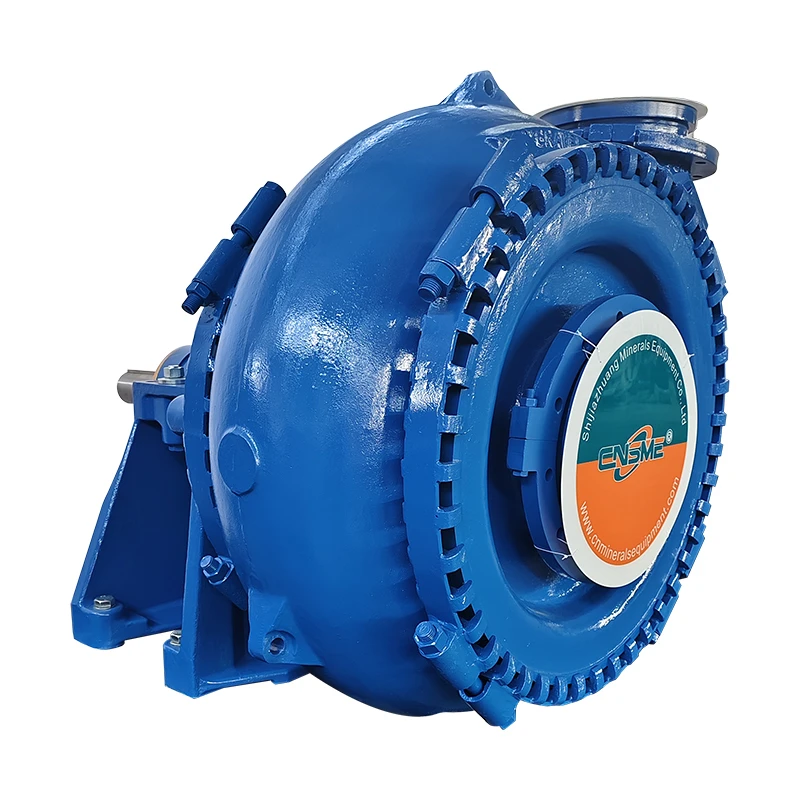

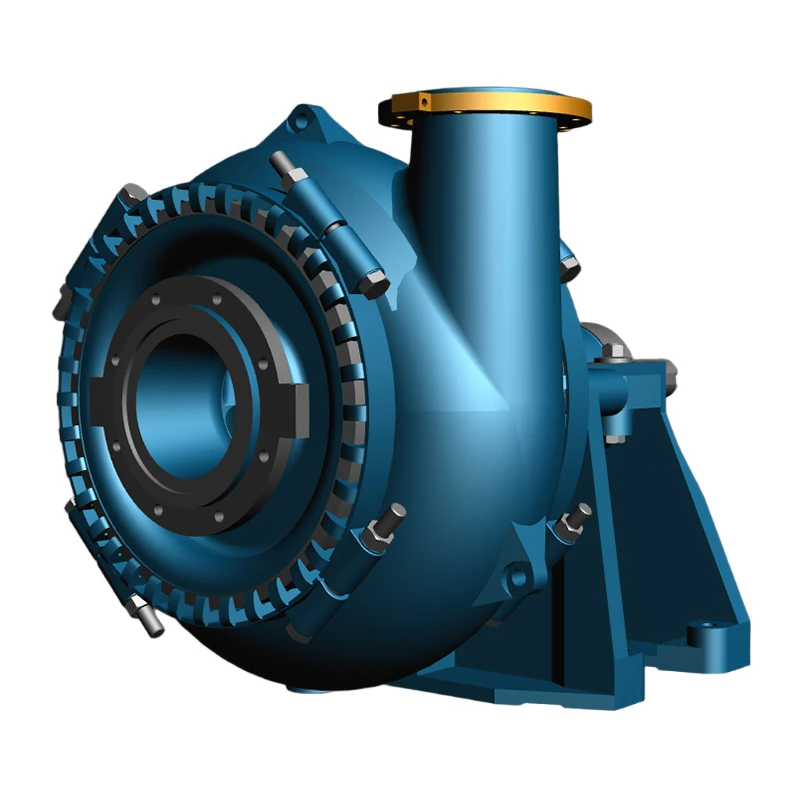

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The G/GH series gravel pumps are all centrifugal pumps with horizontal and single pump casing structure, of which the GH type is a high-head gravel pumps.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The G/GH series gravel pumps adopt a single casing connected by means of clamp bands and wide wet-passage. The wet-end parts are made of Ni_hard and high chromium abrasion-resistance alloys.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The discharge direction of pump can be oriented in any direction of 360°. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The main types of pump shaft seals are packing seals, expeller seals and mechanical seals.

Specifications

Pump Model	Allowable Max. Power(kw)	Clear Water Performance					Impeller
		Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
		m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5		391
10/8F-G	260	216-936	8-52	500-1000	65	3-7.5		533
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5		667
14/12G-G	600	432-3168	10-64	300-700	68	2-8		864
18/16T-G	1200	720-3600	10-50	250-500	72	3-6		1067

CONSTRUCTION OF 10/8F-GSand Gravel Dredging Pumps

jpg100-t3-scale100 拷贝

jpg100-t3-scale100 (1) 拷贝

CONSTRUCTION OF 10/8F-GSand Gravel Dredging Pumps

Drive Models

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

DIMENSION DRAWING

8-6EG

S(H)G 拷贝

微信截图_20250102145149 拷贝

Dimension Drawing

Specifications

Sealing System

Packing Seal

Expelelr Seal

Packing Seal

Expelelr Seal

Application

6-4DG 现场图拷贝

微信图片_20210729165325 拷贝

dredging pump 拷贝

QQ图片20140901094448 拷贝
