Product Features

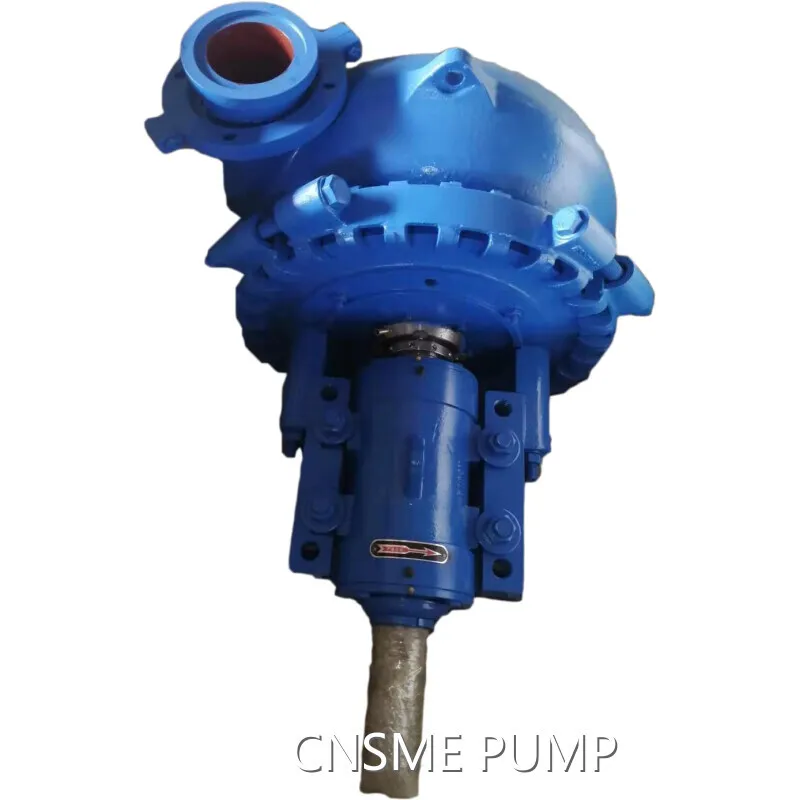

Type G(orGH) gravel pumps are designed for continuously handling the most difficult high abrasive slurries which contain too big solids to be pumped by a common pump. They are suitable for delivering slurries in Mining, Explosive sludge in metal melting, Dredging in dredger and course of river , and other fields. Type GH are high head pumps.

Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-parts are made of Ni_hard and high chromium abrasion-resistance alloys. The discharge direction of pump can be oriented in any direction of 360°. This type of pump possesses the advantages of easy installation and operation, good performance of NPSH and abrasion-resistance.

Structure OF 6/4d-G sand Gravel Pump

CNSME SAND GRAVEL PUMP

结构拷贝

Specifications

Pump Model	Allowable Max. Power(kw)	Clear Water Performance					Impeller
		Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
		m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5		391
10/8F-G	260	216-936	8-52	500-1000	65	3-7.5		533
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5		667
14/12G-G	600	432-3168	10-64	300-700	68	2-8		864
18/16T-G	1200	720-3600	10-50	250-500	72	3-6		1067

Drive Models

The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

CONSTRUCTION OF 6/4d-G Gravel

PERORMANCE COVERAGE FOR QUICK SELECTION

Sealing System

Gland Seal

Expeller Seal

Application

6-4DG sand gravel Field drawing

dredging pump

6/4D-G sand gravel Field drawing
