Company Advantages
· CNSME PUMP centrifugal pump price is specially designed to be more compatible for our customers' choices.
· The product is reliable in high quality and performance.
· Relative centrifugal pump price services will all be provided to customers.
Product Advantages

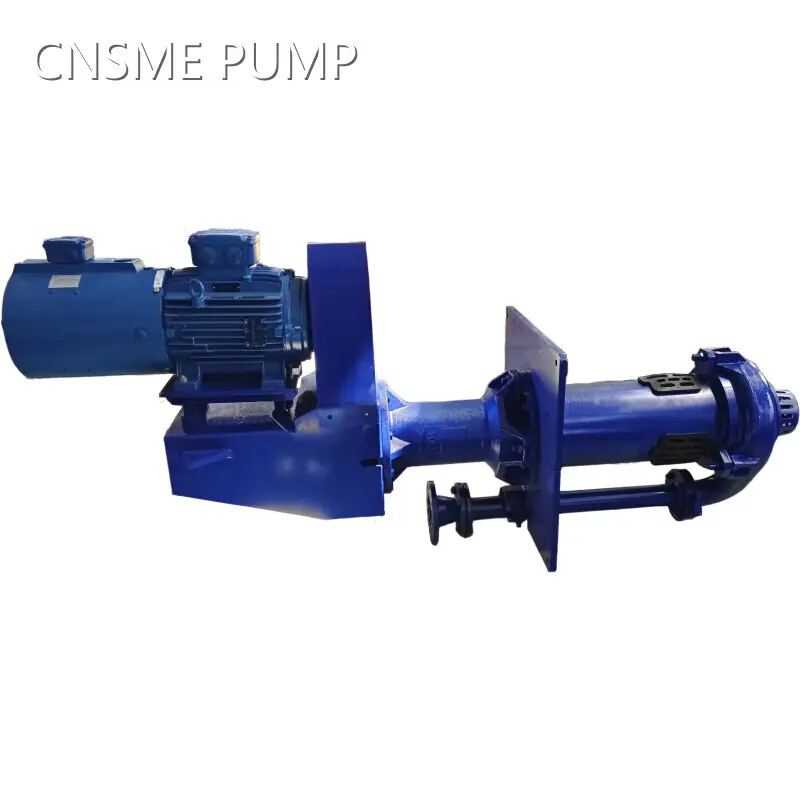

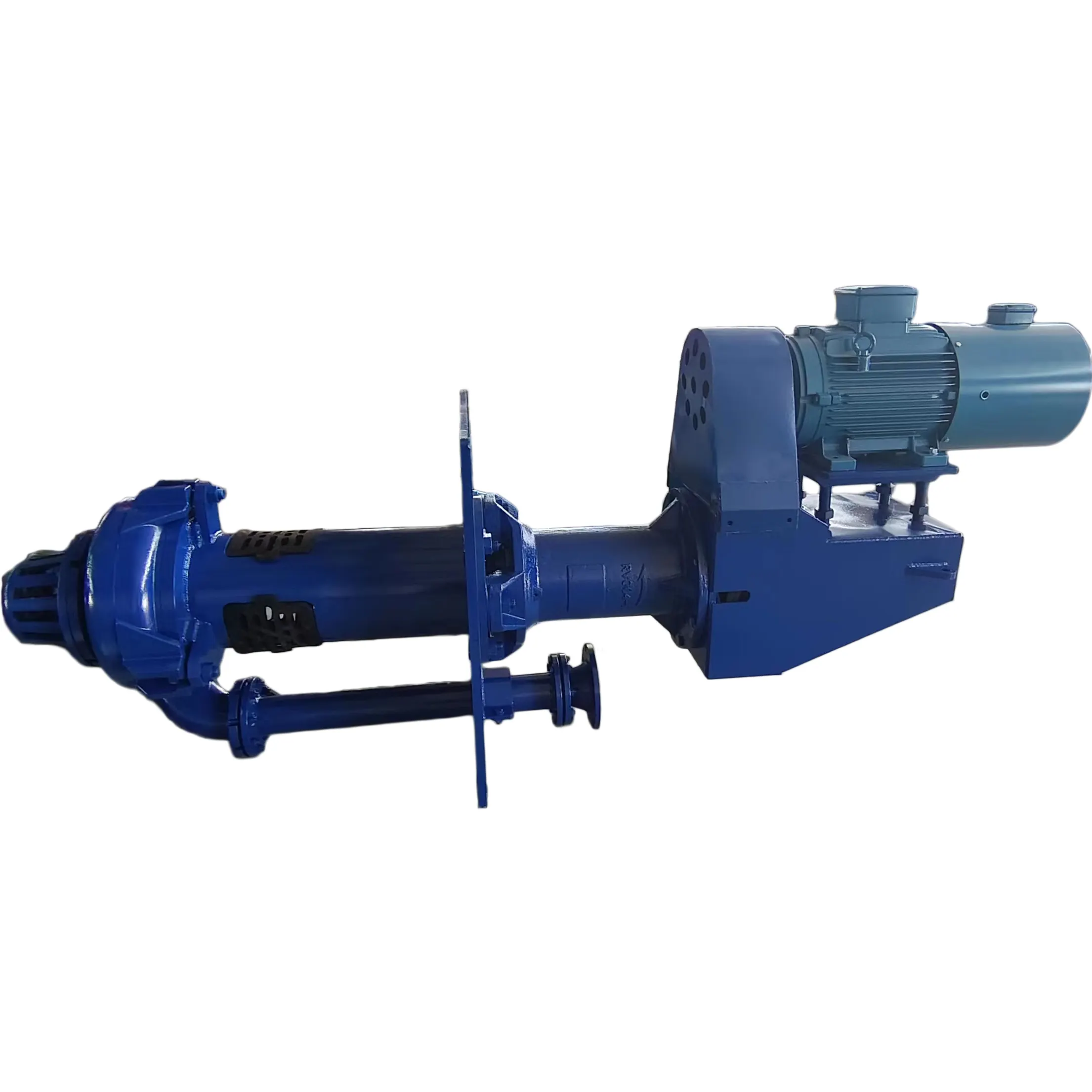

Vertical structure, small footprint, suitable for working conditions with limited space (such as underground or equipment-intensive areas), easy to install and layout.
Wear-resistant materials such as high chrome alloy are used in the overflow parts, which can withstand highly abrasive media, prolonging the service life and reducing the replacement frequency and maintenance cost.
The suction diameter is 175mm, which is suitable for large flow slurry conveying, reducing the risk of clogging and improving operation efficiency.
Discharge caliber is 100mm, suitable for high-pressure, long-distance conveying, to meet the needs of high-lift working conditions.
Equipped with 75kW motor, providing sufficient power, suitable for high concentration, high abrasive slurry transportation.
Modular design, easy to disassemble and maintain, reduce downtime, reduce operating costs.
Specifications
|
Specifications of SP(R) Series Vertical Slurry Pumps |
|||||||||||
|
Model |
Frame Type |
Max. Rating (kW) |
Sump Depthmm |
Performance for Clear Water |
Impeller |
||||||
|
Capacity Q |
Head |
Speed |
Efficiency |
Type |
No. of Vanes |
Vane Φmm |
Passagemm |
||||
|
m3/hr |
m |
r/min |
% |
||||||||
|
40PV-SP |
PV |
15 |
900 |
10--44 |
5--28 |
1000-2200 |
20-40 |
Open |
5 |
188 |
12 |
|
10--40 |
9--37 |
1400-2600 |
15-32 |
Cyclo |
8 |
195 |
26 |
||||
|
40PV-SPR |
PV |
15 |
900 |
10--50 |
8--52 |
1200-3000 |
20-40 |
Open |
5 |
188 |
12 |
|
65QV-SP |
QV |
30 |
1200 |
20--120 |
4--56 |
600-2000 |
25-51 |
Open |
5 |
280 |
15 |
|
20--110 |
5--28 |
700-1500 |
20-35 |
Cyclo |
8 |
290 |
40 |
||||
|
65QV-SPR |
QV |
30 |
1200 |
20--100 |
8--46 |
700-850 |
20-47.5 |
Open |
5 |
280 |
23 |
|
100RV-SP |
RV |
75 |
1500 |
50--300 |
6--50 |
500-1400 |
20-56 |
Open |
5 |
370 |
32 |
|
50--250 |
6--31 |
600-1200 |
20-40 |
Cyclo |
8 |
390 |
70 |
||||
|
100RV-SPR |
RV |
75 |
1500 |
50--270 |
9--46 |
600-1400 |
30-60 |
Open |
5 |
370 |
40 |
|
150SV-SP |
SV |
110 |
1800 |
100--500 |
7--37 |
500-1000 |
20-55 |
Open |
5 |
450 |
45 |
|
100--450 |
7--37 |
500-1000 |
20-40 |
Cyclo |
8 |
480 |
80 |
||||
|
150SV-SPR |
SV |
110 |
1800 |
100--450 |
7--35 |
500-1000 |
20-56 |
Open |
5 |
450 |
45 |
|
200SV-SP |
SV |
110 |
1800 |
200--800 |
7--38 |
400-850 |
30-64 |
Open |
5 |
520 |
65 |
|
250TV-SP |
TV |
200 |
1800 |
300--1000 |
8--35 |
400-750 |
20-63 |
Open |
5 |
575 |
65 |
|
300TV |
TV |
200 |
2100 |
360--1400 |
5--28 |
350-700 |
20-62 |
Open |
5 |
610 |
65 |
|
Material Options of Wet end Parts: A05, A33, A49, A61, R55 |
|||||||||||
CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps
Dimension Drawing
Structure Characteristics
Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry. Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.
