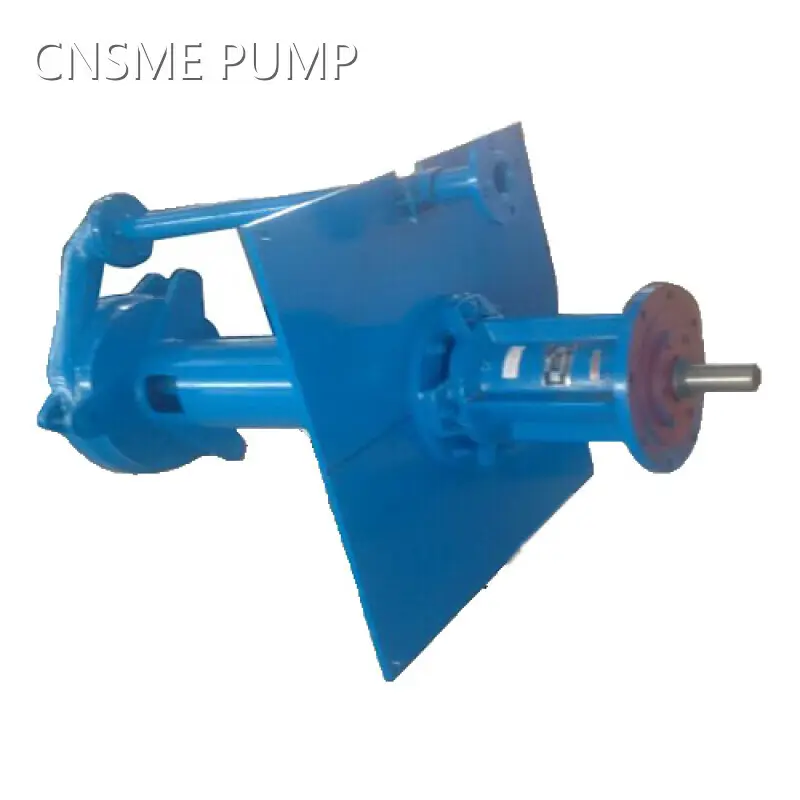

High-end Vertical Slurry Sump Pumps Price List

Send your inquiry

Product Advantages

small icon No shaft seal, no shaft seal water

Adopting a semi-immersed design, no extra shaft seal or shaft seal water is needed when working, reducing maintenance costs and operation failures.

small icon Vertical structure, space-saving

Suitable for slurry transportation in a pit or pool, with a small footprint, especially for underground slurry discharge or limited space installation.

small icon Adopt an open impeller design.

Adapt to large particles, thick slurry conveying, reduce clogging, and improve throughput capacity.

Maximum passing particle diameter 45mm, suitable for high solid content working conditions.

small icon Different Submergence Depths Available

The 150SV-SP has a standard immersion depth of 1800mm, with longer shafts available on request.

small icon Suitable for low NPSH conditions

Reduced risk of cavitation due to immersed design, especially suitable for conditions with high-level fluctuations.

Specifications

Specifications of SP(R) Series Vertical Slurry Pumps
Model	Frame Type	Max. Rating (kW)	Sump Depthmm	Performance for Clear Water				Impeller
				Capacity Q	Head	Speed	Efficiency	Type	No. of Vanes	Vane Φmm	Passagemm
				m3/hr	m	r/min	%	Type	No. of Vanes	Vane Φmm	Passagemm
40PV-SP	PV	15	900	10--44	5--28	1000-2200	20-40	Open	5	188	12
40PV-SP	PV	15	900	10--40	9--37	1400-2600	15-32	Cyclo	8	195	26
40PV-SPR	PV	15	900	10--50	8--52	1200-3000	20-40	Open	5	188	12
65QV-SP	QV	30	1200	20--120	4--56	600-2000	25-51	Open	5	280	15
65QV-SP	QV	30	1200	20--110	5--28	700-1500	20-35	Cyclo	8	290	40
65QV-SPR	QV	30	1200	20--100	8--46	700-850	20-47.5	Open	5	280	23
100RV-SP	RV	75	1500	50--300	6--50	500-1400	20-56	Open	5	370	32
100RV-SP	RV	75	1500	50--250	6--31	600-1200	20-40	Cyclo	8	390	70
100RV-SPR	RV	75	1500	50--270	9--46	600-1400	30-60	Open	5	370	40
150SV-SP	SV	110	1800	100--500	7--37	500-1000	20-55	Open	5	450	45
150SV-SP	SV	110	1800	100--450	7--37	500-1000	20-40	Cyclo	8	480	80
150SV-SPR	SV	110	1800	100--450	7--35	500-1000	20-56	Open	5	450	45
200SV-SP	SV	110	1800	200--800	7--38	400-850	30-64	Open	5	520	65
250TV-SP	TV	200	1800	300--1000	8--35	400-750	20-63	Open	5	575	65
300TV	TV	200	2100	360--1400	5--28	350-700	20-62	Open	5	610	65
Material Options of Wet end Parts: A05, A33, A49, A61, R55

CONSTRUCTION OF SP Series Vertical Slurry Pumps

SP vertical slurry pump decomposition diagram

Dimension Drawing

Specifications

150SV-SP Vertical Slurry Pump Outline Structure Drawing

150SV-SP Vertical Slurry Pump Quick Selection

Structure Characteristics

Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry. Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

SP vertical slurry pump three-dimensional drawing

SP vertical slurry pump shape diagram

application

sv1 (2)

pump used in slovakia

Company Advantages

· CNSME PUMP vertical slurry sump pumps is manufactured by the sophisticated equipment and the skillful workers.

· The reliability of its quality is guaranteed by our QC team.

· Shijiazhuang Minerals Equipment Co., Ltd. continuously improves its performance and create value for customers.

Company Features

· CNSME PUMP is equipped with a large factory to ensure the mass production of vertical slurry sump pumps.

· We take pride in a group of talented and hard-working people. They are fully committed to the development of the company and work hard to provide customers with the highest quality vertical slurry sump pumps.

· CNSME PUMP aims to be a professional vertical slurry sump pumps manufacturer who can offer the best service. Contact us!

Application of the Product

Our vertical slurry sump pumps has a wide range of applications.

We work hard to develop solutions that best meet the needs of our customers based on their actual situation, so as to help each customer succeed.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
