Product details of the submersible centrifugal pump

Product Introduction

CNSME PUMP submersible centrifugal pump is designed & manufactured by using top-quality material and advanced tools & equipment in conformity with the industry standards. The product has been tested by many quality norms and has been approved to be qualified in all respects, such as performance, service life, and so on. The employees of CNSME PUMP has been committed to offer the most professional service for customers.

Product Advantages

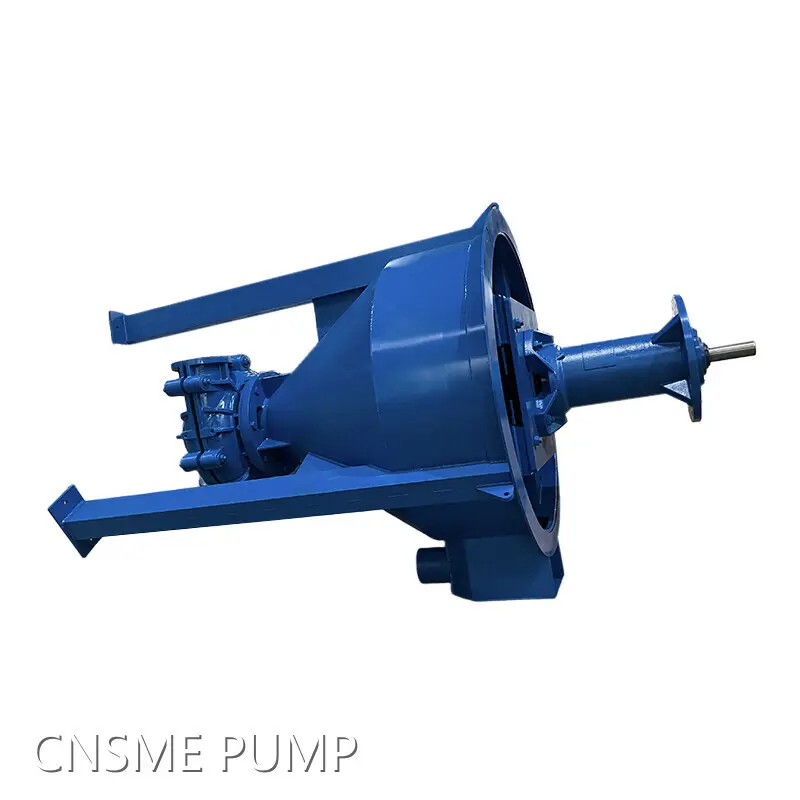

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Efficient froth Removal: 6SV-AF vertical froth pump can effectively eliminate the froth in the slurry during work, and can still work normally even when the feed is insufficient. It is especially suitable for various flotation processes and is an ideal product for transporting froth slurry.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Advantage Tank Design: The tank is made of steel structure or stainless steel, etc., and is equipped with a tangent entrance and overflow nozzle. The overflow nozzle can conveniently send the excess incoming material back to the tank, and the tangent entrance can quickly allow the material to enter the pump and eliminate part of the froth.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Double Casing Structure: The pump head structure is a double casing structure. Depending on the conveying medium, the wet-end parts can be made of metal, rubber or other non-metallic materials. This design not only improves the durability of the pump, but also adapts to the conveying needs of different media.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong Self-suction Ability: The 6SV-AF froth pump has excellent self-suction ability, which can quickly inhale and transport the froth mixture without an external water transfer device. This feature makes the pump more flexible and reliable in the complex and changeable field environment, reducing the complexity of installation and operation.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Easy To Maintain: The design of the 6SV-AF froth pump considers ease of maintenance, and many key parts such as bearings, seals, etc., can be easily disassembled and replaced. In addition, the frame plate is compact, which is easy to clean and inspect, reducing the difficulty and cost of maintenance.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 6SV-AF froth Pump Performance Parameters

Installed With Power P(KW)	15-75
Flow Q(m³/h)	80-393
Head H(m)	5-25
Speed n(r/min)	250-680
Efficient η%	55
Inlet(mm)	200
Outlet(mm)	150

Specifications

Model	Power	Capacity	Head	Speed	Eff.	Inlet dia.	Outlet dia.
Model	P(KW)	Q(m3/h)	H(m)	n(r/min)	ŋ%	(mm)	(mm)
2QV-AF	3-15	6-43	6-30	800-1800	45	100	50
3QV-AF	3-18.5	23-78	5-28	700-1500	55	150	75
4RV-AF	5.5-37	33-187	5-28	500-1050	55	150	100
6SV-AF	15-75	80-393	5-25	250-680	55	200	150
8SV-AF	37-110	126-575	5-26	350-650	55	250	200

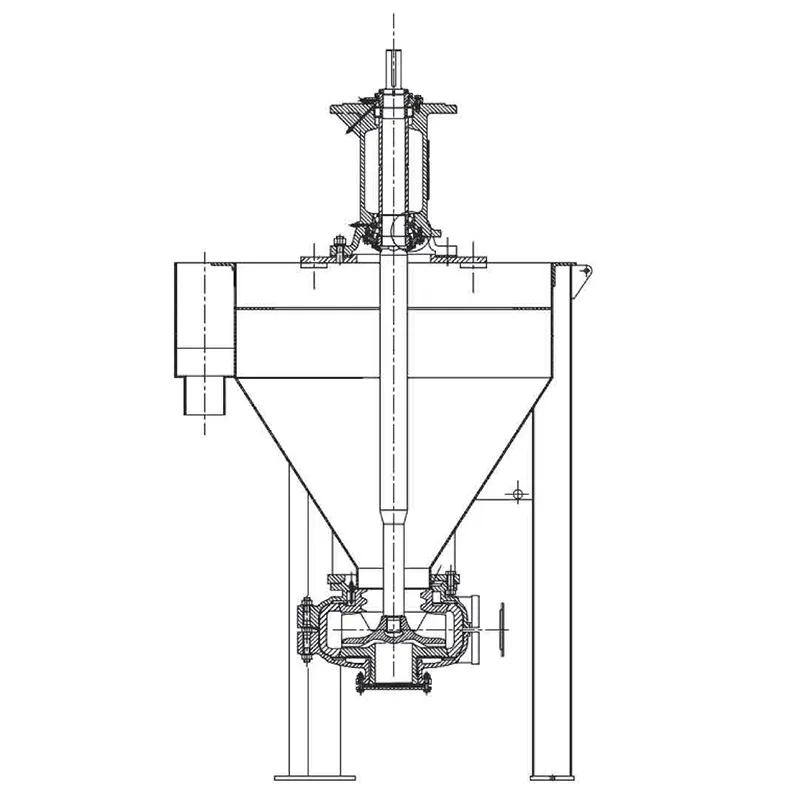

Structure of 6QV-AF VERTICAL FROTH PUMP

1 (80)

2 (64)

CONSTRUCTION OF 6QV-AF VERTICAL FROTH PUMP

DIMENSION DRAWING

Application

Froth pump 拷贝 2

微信图片_20241212135346 拷贝

照片 003 拷贝

Company Feature

• Our company takes its city as the product sales center, and aims to expand the sales coverage in a global way to increase its market share.
• CNSME PUMP's comprehensive service system covers from pre-sales to in-sales and after-sales. It guarantees that we can solve consumers' problems in time and protect their legal right.
• After years of hard work, our company has won the trust and support of customers.
If order in bulk, CNSME PUMP will provide new and old customers with on-site installation and maintenance service.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
