Product details of the vertical centrifugal sump pump

Quick Detail

CNSME PUMP vertical centrifugal sump pump is developed in our endeavor to provide the highest level of quality. CNSME PUMP has enough capability to produce an exquisite product with high quality. The vertical centrifugal sump pump produced by CNSME PUMP has a wide range of applications. The company's vertical centrifugal sump pump products have been exported to many overseas markets.

Product Introduction

CNSME PUMP pays great attention to the details of vertical centrifugal sump pump. The following will show you one by one.

Structural features

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Vertical cantilevered, single casing structure.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Double suction, open impeller design with carbide or rubber impeller.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Cartridge bearing assembly, selecting high capacity bearing design.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Adjustable clearance between impeller and backliner to ensure efficient pump operation.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 No need for any shaft seal.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Pump and motor can choose direct coupled drive, belt drive.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Wet-end Parts: Wear-resistant and corrosion-resistant high chromium alloy or rubber, polyurethane materials

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Pumping Medium: Abrasive and corrosive slurry containing solid particles

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Use: Immersed in the liquid, without any shaft seal and sealing water, suction insufficient working conditions can be used normally.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 200SV-SP(R) slurry pumps are widely used in mining, electric power, metallurgy, coal, building materials, chemical industry and other sectors

Specifications

Specifications of SP(R) Series Vertical Slurry Pumps
Model	Frame Type	Max. Rating (kW)	Sump Depthmm	Performance for Clear Water				Impeller
				Capacity Q	Head	Speed	Efficiency	Type	No. of Vanes	Vane Φmm	Passagemm
				m3/hr	m	r/min	%	Type	No. of Vanes	Vane Φmm	Passagemm
40PV-SP	PV	15	900	10--44	5--28	1000-2200	20-40	Open	5	188	12
40PV-SP	PV	15	900	10--40	9--37	1400-2600	15-32	Cyclo	8	195	26
40PV-SPR	PV	15	900	10--50	8--52	1200-3000	20-40	Open	5	188	12
65QV-SP	QV	30	1200	20--120	4--56	600-2000	25-51	Open	5	280	15
65QV-SP	QV	30	1200	20--110	5--28	700-1500	20-35	Cyclo	8	290	40
65QV-SPR	QV	30	1200	20--100	8--46	700-850	20-47.5	Open	5	280	23
100RV-SP	RV	75	1500	50--300	6--50	500-1400	20-56	Open	5	370	32
100RV-SP	RV	75	1500	50--250	6--31	600-1200	20-40	Cyclo	8	390	70
100RV-SPR	RV	75	1500	50--270	9--46	600-1400	30-60	Open	5	370	40
150SV-SP	SV	110	1800	100--500	7--37	500-1000	20-55	Open	5	450	45
150SV-SP	SV	110	1800	100--450	7--37	500-1000	20-40	Cyclo	8	480	80
150SV-SPR	SV	110	1800	100--450	7--35	500-1000	20-56	Open	5	450	45
200SV-SP	SV	110	1800	200--800	7--38	400-850	30-64	Open	5	520	65
250TV-SP	TV	200	1800	300--1000	8--35	400-750	20-63	Open	5	575	65
300TV	TV	200	2100	360--1400	5--28	350-700	20-62	Open	5	610	65
Material Options of Wet-end Parts: A05, A33, A49, A61, R55

Structure OF VERTICAL CANTILEVER, SINGLE CASING 200SV-SP SUMP SLURRY PUMP

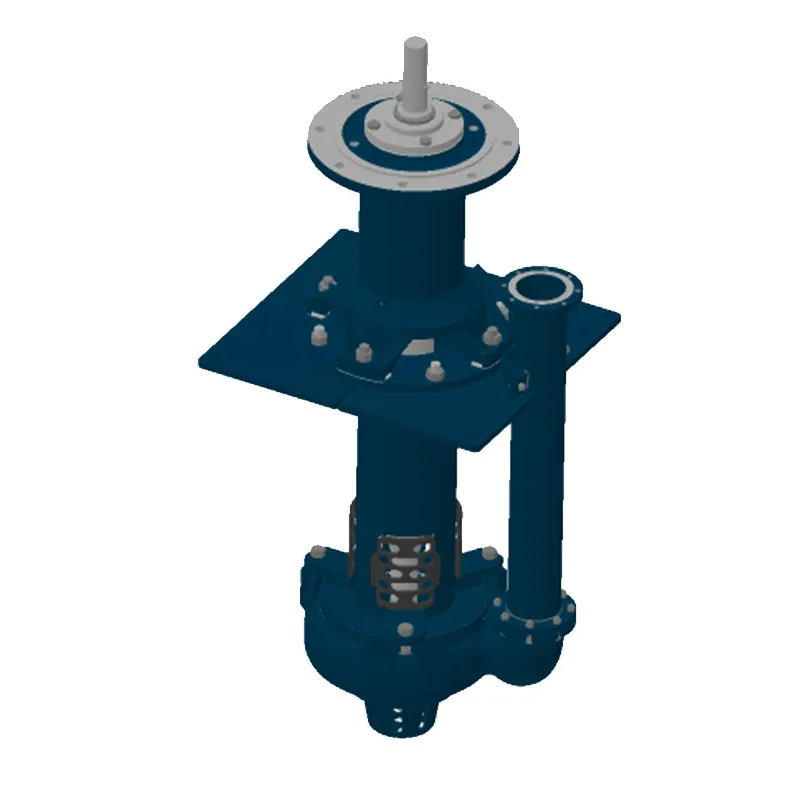

三维图拷贝 (5)

结构图拷贝 (3)

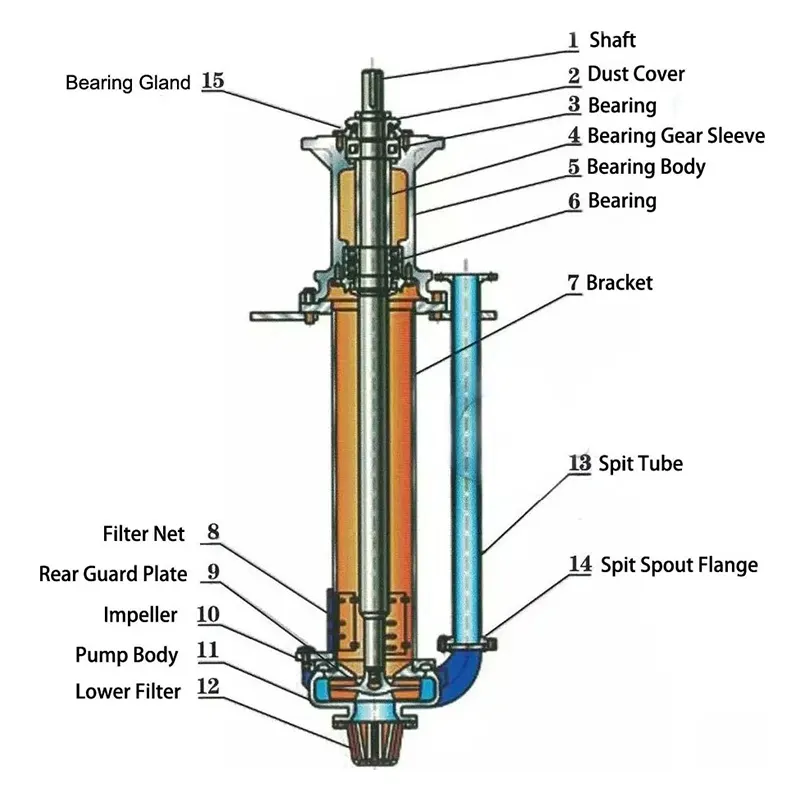

CONSTRUCTION OF Vertical Cantilever, Single Casing 200SV-SP Sump Slurry Pump

Dimension Drawing

Specifications

pump used in slovakia (1) 拷贝

pump used in slovakia 拷贝

Application

Mining: Pumping slurry, improving the efficiency of ore processing

Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

Chemical industry: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.
