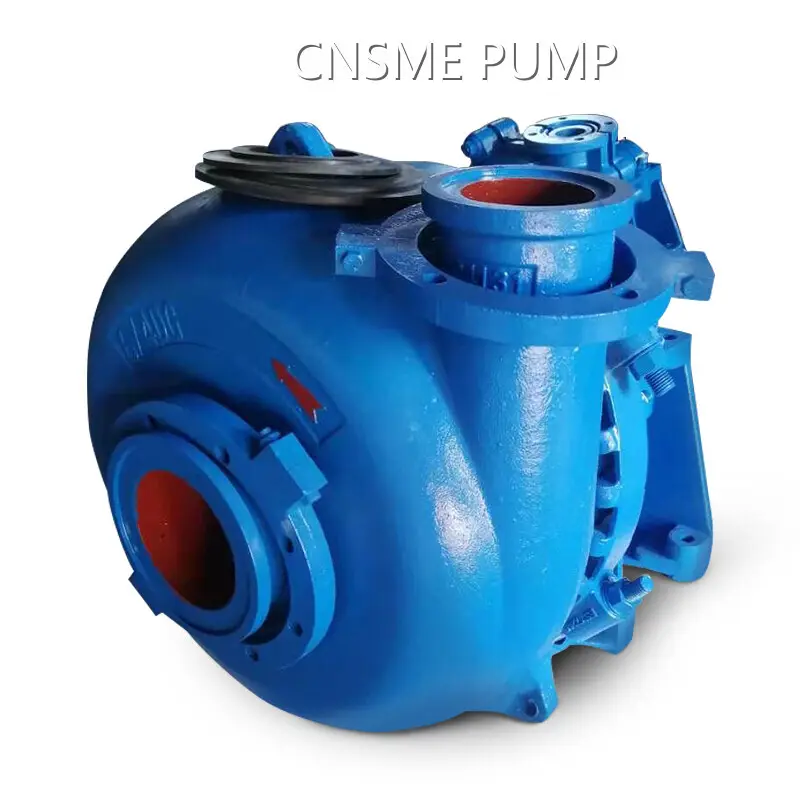

6/4D-G Gravel Pump - Energy Dfficient, Designed for Small to Medium Flow Fates

Product details of the sand pump price

Product Information

Specifications

Pump Model	Allowable Max. Power(kw)	Clear Water Performance					Impeller
		Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
		m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5		391
10/8F-G	260	216-936	8-52	500-1000	65	3-7.5		533
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5		667
14/12G-G	600	432-3168	10-64	300-700	68	2-8		864
18/16T-G	1200	720-3600	10-50	250-500	72	3-6		1067

Structure OF 8/6E-G Gravel Pump

图片拷贝 (3)

结构拷贝

Drive Models

The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

CONSTRUCTION OF 8/6E-G Gravel

quick selection

Sealing System

Packing Seal

Expelelr Seal

Application

6-4DG 现场图拷贝

微信图片_20210729165325 拷贝

dredging pump 拷贝

QQ图片20140901094448 拷贝

Company Advantage

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
