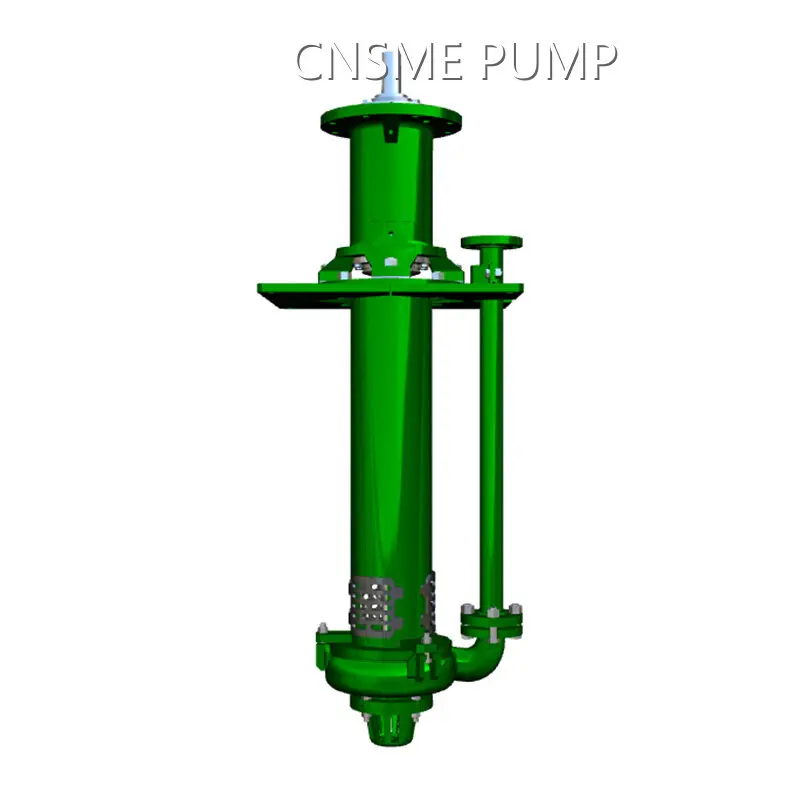

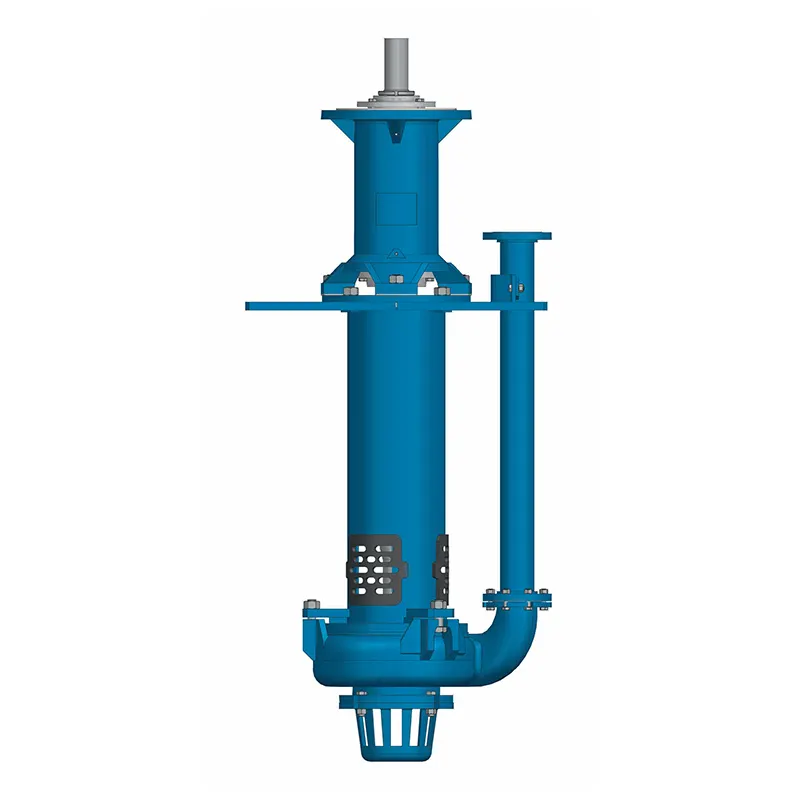

40PV-SP Vertical Slurry Pump

Inquiry

Product Advantages

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 High Head, High Efficiency: Multi level impeller design effectively improves the head and pumping capacity.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Convenient Maintenance: Vertical structure design, no need for shaft seal and sealing water, reducing maintenance costs.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong Adaptability: According to the level of the slurry pool, different lengths of pump drive shafts or suction tubes can be selected to adapt to a variety of working conditions.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Advanced Technology: Introducing foreign advanced slurry pump technology with excellent performance.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 High Reliability: High chromium cast iron and rubber materials are used to improve the wear resistance or corrosion resistance of the impeller and pump casing.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Environmental Protection And Energy Saving: Low noise and low vibration design to reduce the impact on the working environment.

Specifications

Specifications of SP(R) Series Vertical Slurry Pumps
Model	Frame Type	Max. Rating (kW)	Sump Depthmm	Performance for Clear Water				Impeller
				Capacity Q	Head	Speed	Efficiency	Type	No. of Vanes	Vane Φmm	Passagemm
				m3/hr	m	r/min	%	Type	No. of Vanes	Vane Φmm	Passagemm
40PV-SP	PV	15	900	10--44	5--28	1000-2200	20-40	Open	5	188	12
40PV-SP	PV	15	900	10--40	9--37	1400-2600	15-32	Cyclo	8	195	26
40PV-SPR	PV	15	900	10--50	8--52	1200-3000	20-40	Open	5	188	12
65QV-SP	QV	30	1200	20--120	4--56	600-2000	25-51	Open	5	280	15
65QV-SP	QV	30	1200	20--110	5--28	700-1500	20-35	Cyclo	8	290	40
65QV-SPR	QV	30	1200	20--100	8--46	700-850	20-47.5	Open	5	280	23
100RV-SP	RV	75	1500	50--300	6--50	500-1400	20-56	Open	5	370	32
100RV-SP	RV	75	1500	50--250	6--31	600-1200	20-40	Cyclo	8	390	70
100RV-SPR	RV	75	1500	50--270	9--46	600-1400	30-60	Open	5	370	40
150SV-SP	SV	110	1800	100--500	7--37	500-1000	20-55	Open	5	450	45
150SV-SP	SV	110	1800	100--450	7--37	500-1000	20-40	Cyclo	8	480	80
150SV-SPR	SV	110	1800	100--450	7--35	500-1000	20-56	Open	5	450	45
200SV-SP	SV	110	1800	200--800	7--38	400-850	30-64	Open	5	520	65
250TV-SP	TV	200	1800	300--1000	8--35	400-750	20-63	Open	5	575	65
300TV	TV	200	2100	360--1400	5--28	350-700	20-62	Open	5	610	65
Material Options of Wet end Parts: A05, A33, A49, A61, R55

CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps

Dimension Drawing

Specifications

Structure Characteristics

Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry. Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

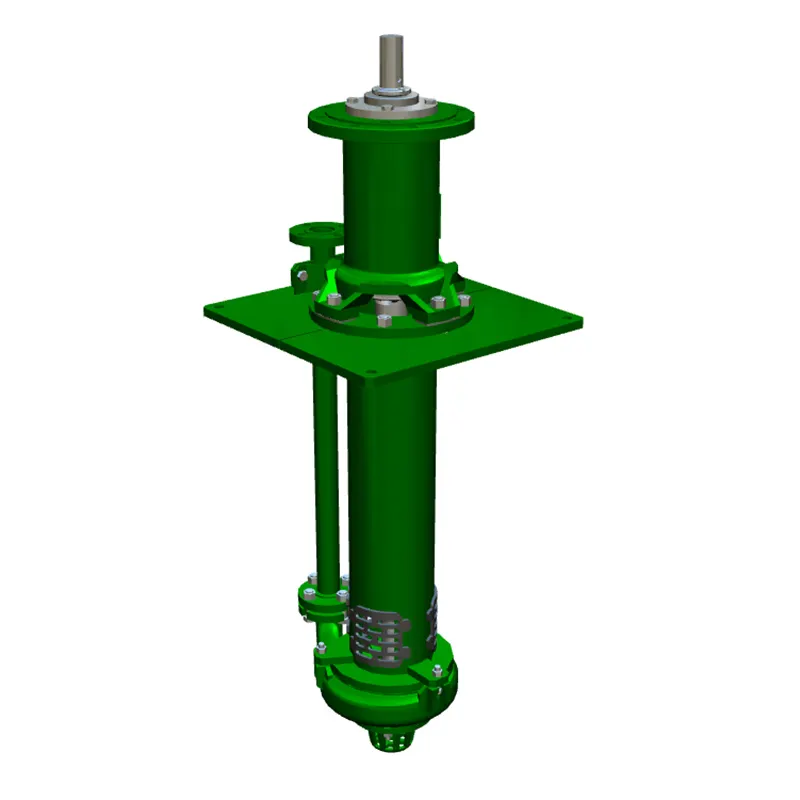

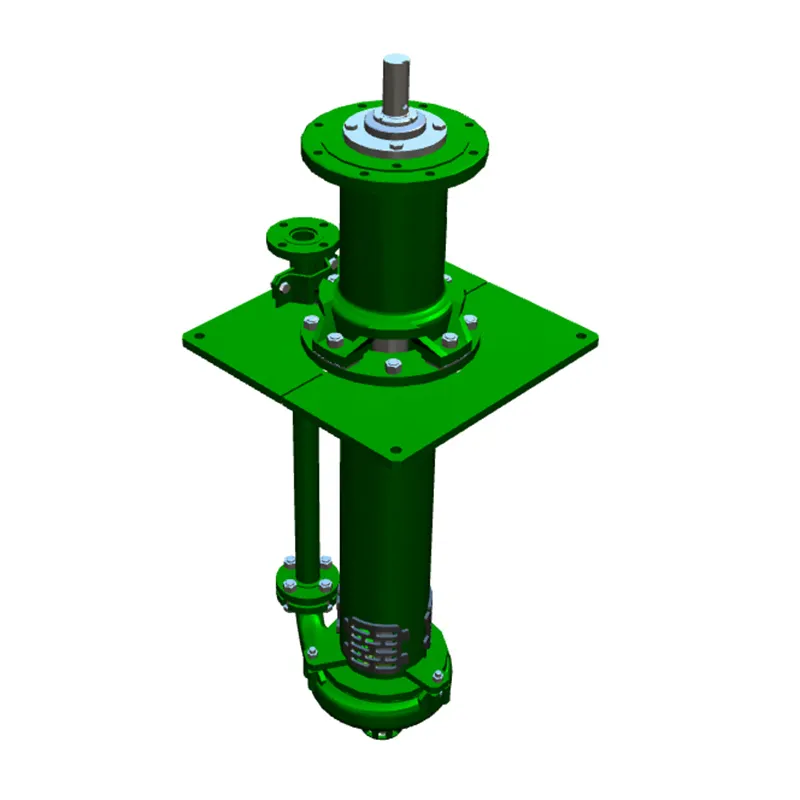

三维图拷贝 2

外形图拷贝 2

pump used in slovakia (1) 拷贝

pump used in slovakia 拷贝

Application

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Mining: Pumping slurry, improving the efficiency of ore processing

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Chemical Industry: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
