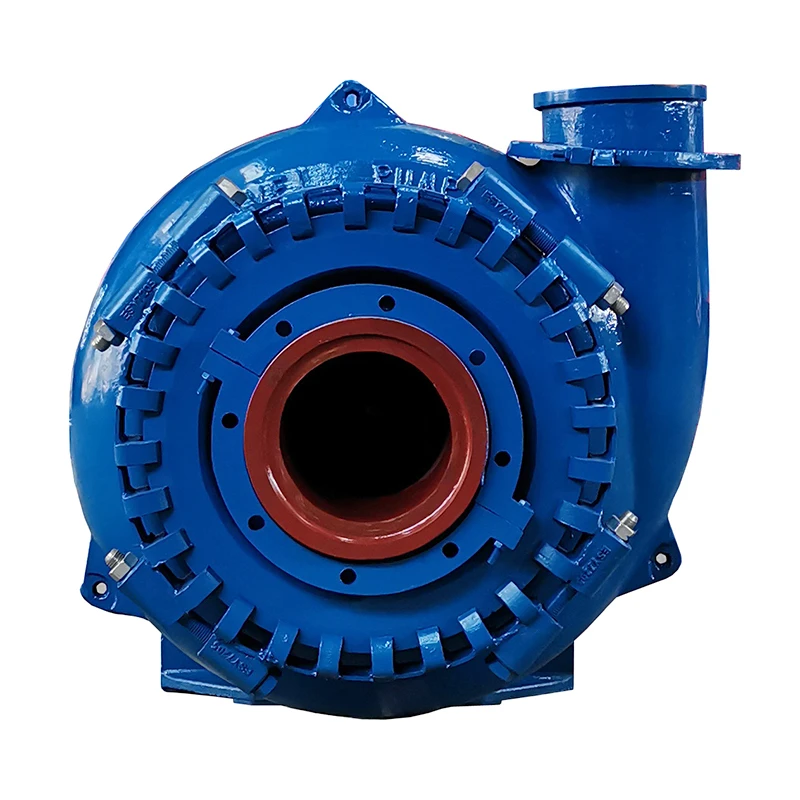

High quality 8/6E-G Gravel Pump

● Construction of this pump is of single casing connected by means of clamp bands and wide wet-passage. The wet-end parts material is hard alloy has good wear resistance, corrosion resistance and high reliability.
● The bearing assembly is designed with high capacity bearings, and the bearing adopts grease lubrication and oil lubrication to adapt to different working conditions.
● The gap between the impeller and the backliner can be adjusted to ensure the efficient operation of the pump.
● The shaft seal adopts packing seal, expeller seal and mechanical seal to meet the requirements of different working conditions.
● The pump and drive machine can choose DC drive, CV drive, ZVZ and other drive methods.

Inquiry

Write a Review

Specifications

Pump Model	Allowable Max. Power(kw)	Clear Water Performance					Impeller
		Capacity Q	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
		m3/h	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)
6/4D-G	60	36-250	5-52	600-1400	58	2.5-3.5	3	378
8/6E-G	120	126-576	6-45	800-1400	60	3-4.5		391
10/8F-G	260	216-936	8-52	500-1000	65	3-7.5		533
12/10G-G	600	360-1440	10-60	400-850	65	1.5-4.5		667
14/12G-G	600	432-3168	10-64	300-700	68	2-8		864
18/16T-G	1200	720-3600	10-50	250-500	72	3-6		1067

Structure OF 8/6E-G Gravel Pump

图片拷贝 (3)

结构拷贝

Drive Models

The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

CONSTRUCTION OF 8/6E-G Gravel

DIMENSION DRAWING

S(H)G 拷贝

微信截图_20250102145149 拷贝

8-6EG

Dimension Drawing

Specifications

Sealing System

Packing Seal

Expelelr Seal

Packing Seal

Expelelr Seal

Application

6-4DG 现场图拷贝

微信图片_20210729165325 拷贝

dredging pump 拷贝

QQ图片20140901094448 拷贝
