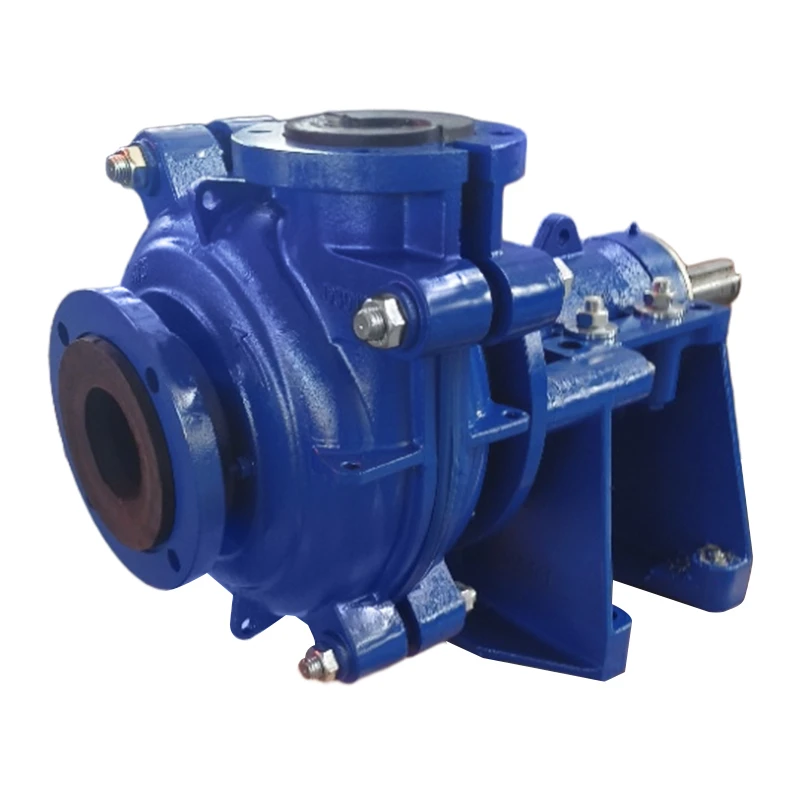

High efficiency, wear resistance, flexible and versatile - 4/3D-AH (R) slurry pump, ideal choice for industrial pumping

The wet-end parts of 4/3D-AH(R) slurry pump, such as impeller, volute liner and frame plate liner are made of high chrome alloy wear-resistant material, or wear-resistant rubber material. These materials have good wear resistance, which can effectively extent the service life of the pump, reduce replacement frequency and reduce maintenance costs.

Inquiry

Write a Review

Product Advantages

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 4/3D-AH(R) slurry pump is suitable for handling highly abrasive and high-concentration slurry. It can pump highly abrasive slurry in low-flow and low-head areas, and pump lightly abrasive slurry in high-head and high-flow areas, meeting the needs of different working conditions.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Multi-stage series use: This model of slurry pump can be used in parallel or in series, so that the flow rate and head of the pump can be adjusted according to actual needs, to meet different pumping distances and height requirements, with good flexibility.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The shaft seal can be in the form of packing seal, auxiliary impeller seal, mechanical seal, etc. to meet different working conditions. For example, packing seal can be used under corrosive or high temperature conditions, and mechanical seal can be selected when a higher sealing effect is required, providing users with a variety of options.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Multiple Shaft Seals: The shaft seal can adopt gland seal, expeller seal and mechanical seal, to fit different operation sites. For example, gland seal can be used under corrosive or high temperature conditions and mechanical seal can be selected when a higher sealing performance is required, providing users with various options.

Specifications

AH Series Metal Slurry Pump Specifications
Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller		Pricing
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000
