Overview

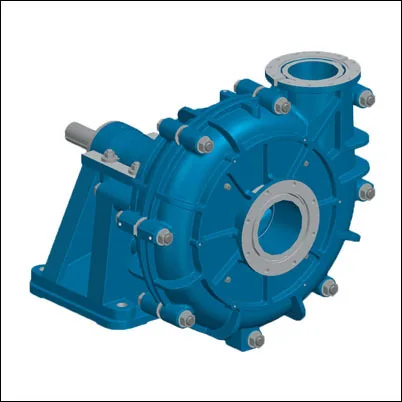

The heavy duty SH(R) pump range is designed to perform continuous  pumping of highly abrasive slurries. This range of pumps have been proved  successful in processes from hydrocyclone feed to regrind, flotation and  tailings in minerals processing plants as well as other industrial applications.

Key Features

• Heavy duty construction with through-bolt design provides  ease of maintenance and minimal downtime

• Large diameter, slow turning, high efficiency impellers  designed to achieve maximum wear life and low operating  costs

• Cartridge-style bearing assembly allows for maintenance  in a clean environment without removal of the pump,  resulting in reliable operation and prolonged bearing life

• Diverse selections of shaft seals tailored to each specific  application

• Expeller Seal Assembly -- Dry Seal: no need for flushing  water (Figure 1)



• Gland Seal Assembly -- Wet Seal: clean flushing water is  necessary (Figure 2)



• **Improved “HS1” type Hi-Seal as Options to the traditional  Expeller & Gland Seal assembly

• Interchangeable wet-end parts between chrome alloys and  elastomers (Figure 3) reduces overall maintenance costs



• Upgraded technology of “WRT” type of impeller and throatbush combination (Figure 4) designed to enhance efficiency, lower NPSHr and improve wear performance

 Typical Application

• Wet Crushers

• Mill Discharge

• Minerals Processing

• Tailings

• Cyclone Feeding

• Coal Preparation

Performance Coverage for Quick Selection
