FGD slurry pump

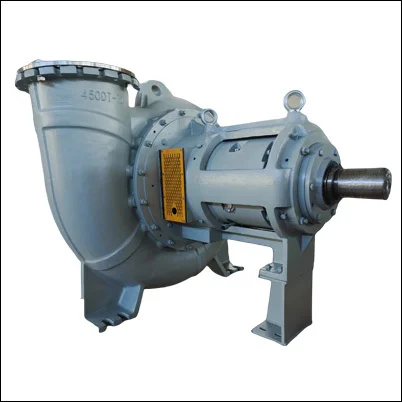

CNSME® TL(R) FGD Pump is a single stage, single suction horizontal centrifugal pump.It is mainly used as the circulating pump for absorbent tower in FGD application. It has the advantages of wide range capacity, high efficiency, better energy saving etc,This series of pump is matched by tight structure X bracket which can save much space .Meanwhile our company develops many kinds of materials targeted on the pump for FGD.

The FGD pump is named according to the purpose of the pump. Because it transports slurry containing impurities, it belongs to the category of slurry pumps. The material of desulfurization pump accessories is more Special, has excellent corrosion resistance, and has high process requirements. Please purchase desulfurization pump manufacturers for purchase.

Inquiry

Write a Review

slurry circulating tank

BASIC PARAMETER OF TYPE TL(R) FGD PUMP

Model	Capacity Q (m³/h)	Head H (m)	Speed n (r/min)	NPSH (m)	Outlet dia. (mm)	Inlet dia. (mm)
350X-TL(R)	1600	25	960	4.5	350	400
400X-TL(R)	2500	25	725	5.0	400	450
500X-TL(R)	3750	25	725	5.0	500	500
600X-TL(R)	6300	25.5	620	5.5	600	700
700X-TL(R)	6840	26	485	6.0	700	800
800X-TL(R)	9360	31	485	7.0	800	900
900X-TL(R)	15000	30	485	8.5	900	1000
1000X-TL(R)	10440	15	485	7.0	1000	1200

APPLICATION SITE

The pump is specially designed for the desulfurization system of the power plant. Mainly used in the desulfurization main circulation system and peripheral circulation system of thermal power plants. It can also be used to transport limestone or gypsum slurries in desulfurization systems in industries such as aluminum and oil refining.

Material of overcurrent parts: The overcurrent parts are made of special materials GLH-5 and GLH-6 specially used for desulfurization conditions.

Transmission form: DCZ direct drive,

Shaft seal form: mechanical seal.

Installation and application: The pump outlet is directed vertically upwards.

STRUCTRAL FORM

TL(R) series desulfurization pump is a cantilever horizontal centrifugal pump with axial suction, single-stage single-suction, and single pump casing structure.

CONVERYING SLURRY

Suitable for limestone, gypsum wet desulfurization, for conveying limestone or gypsum slurry. The chloride ion content of the slurry allowed to be transported is up to 20000ppm, the pH value is between 4.5 and 12, the slurry temperature is ≤65°C, and the slurry weight concentration Cw is up to 60%.

FEATURES

n terms of hydraulic design and structural design, this series of pumps integrates the advantages of similar products at home and abroad and innovates them. It has the advantages of high efficiency and energy saving, anti-wear and corrosion resistance, low vibration, low noise, reliable operation and long service life

CNSME offers a complete range of heavy-duty slurry pumps for FGD system scrubbers. Rugged slurry pumps provide high sustainable hydraulic efficiency, and long wear life at the lowest total cost of ownership.
