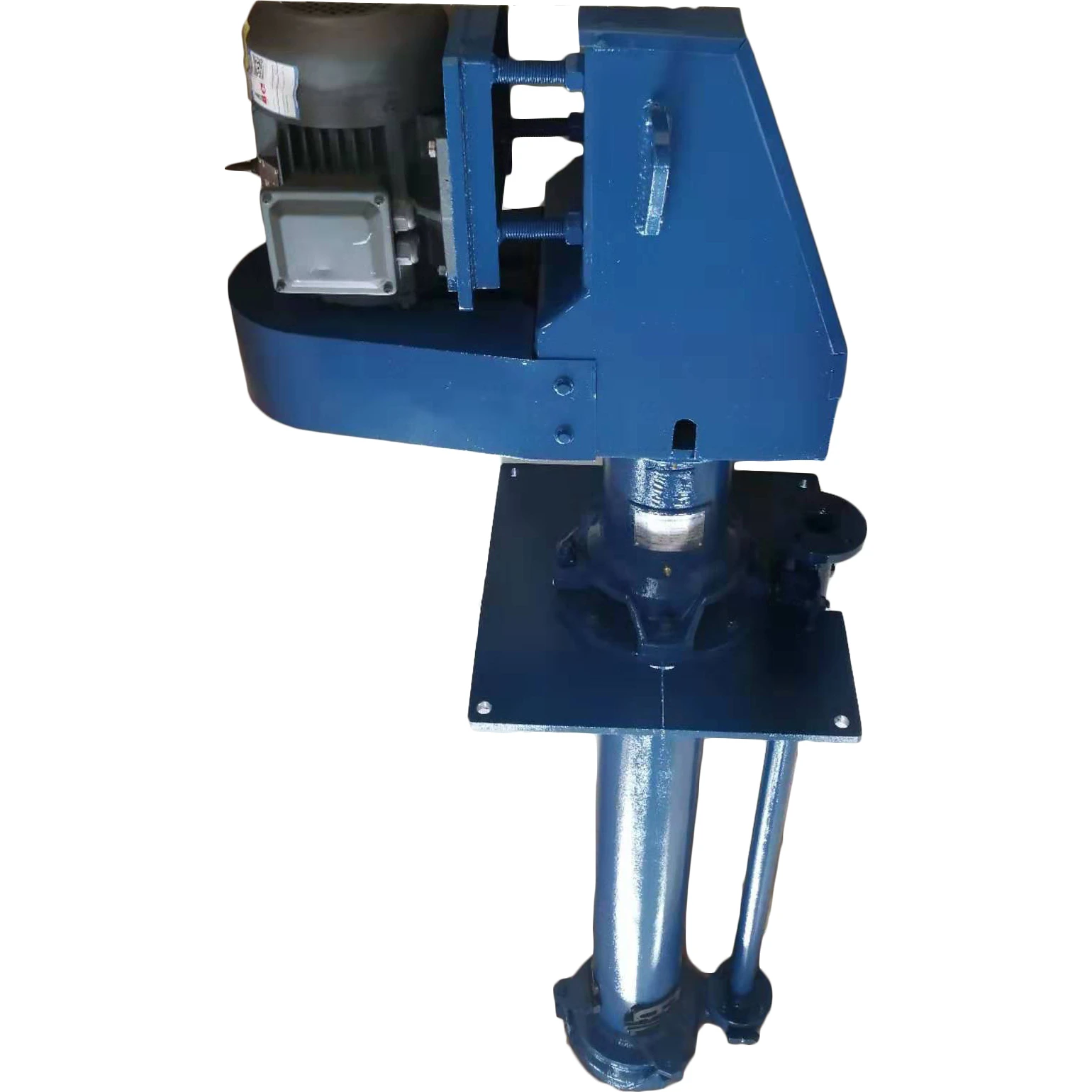

40PV-SP Vertical Slurry Pump 1350 Shaft Length 1
40PV-SP Vertical Slurry Pump 1350 Shaft Length 2
40PV-SP Vertical Slurry Pump 1350 Shaft Length 1
40PV-SP Vertical Slurry Pump 1350 Shaft Length 2

40PV-SP Vertical Slurry Pump 1350 Shaft Length

40PV-SP Vertical Slurry Pump With its compact design, high efficiency and wear resistance, stable operation, convenient installation and maintenance, no shaft seal design and other advantages, it becomes the ideal choice for conveying high abrasion and high concentration media in the industrial field. Its excellent wear resistance, no shaft seal design and long service life further reduce the operation and maintenance costs, suitable for a variety of complex working conditions

    UPS...!

    No hay datos de producto.

    ir a la página de inicio

    Produktvorteile

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 High Head, High Efficiency: Multi level impeller design effectively improves the head and pumping capacity.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Convenient Maintenance: Vertical structure design, no need for shaft seal and sealing water, reducing maintenance costs.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong Adaptability: According to the level of the slurry pool, different lengths of pump drive shafts or suction tubes can be selected to adapt to a variety of working conditions.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Advanced Technology: Introducing foreign advanced slurry pump technology with excellent performance.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 High Reliability: High chromium cast iron and rubber materials are used to improve the wear resistance or corrosion resistance of the impeller and pump casing.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Environmental Protection And Energy Saving: Low noise and low vibration design to reduce the impact on the working environment.

    40PV

    Technische Daten

    Specifications of SP(R) Series Vertical Slurry Pumps

    Modell

    Rahmen
    Uhlobo:

    Max.
    Rating
    (kW)

    Sump
    Depth
    mm

    Performance for Clear Water

    Impeller

    Capacity Q

    Head

    Geschwindigkeit

    Effizienz

    Uhlobo:

    NEIN. of
    Vanes

    Vane Φ
    mm

    Passage
    mm

    m3/hr

    M

    U/min

    %

    40PV-SP

    PV

    15

    900

    10--44

    5--28

    1000-2200

    20-40

    Open

    5

    188

    12

    10--40

    9--37

    1400-2600

    15-32

    Cyclo

    8

    195

    26

    40PV-SPR

    PV

    15

    900

    10--50

    8--52

    1200-3000

    20-40

    Open

    5

    188

    12

    65QV-SP

    QV

    30

    1200

    20--120

    4--56

    600-2000

    25-51

    Open

    5

    280

    15

    20--110

    5--28

    700-1500

    20-35

    Cyclo

    8

    290

    40

    65QV-SPR

    QV

    30

    1200

    20--100

    8--46

    700-850

    20-47.5

    Open

    5

    280

    23

    100RV-SP

    RV

    75

    1500

    50--300

    6--50

    500-1400

    20-56

    Open

    5

    370

    32

    50--250

    6--31

    600-1200

    20-40

    Cyclo

    8

    390

    70

    100RV-SPR

    RV

    75

    1500

    50--270

    9--46

    600-1400

    30-60

    Open

    5

    370

    40

    150SV-SP

    SV

    110

    1800

    100--500

    7--37

    500-1000

    20-55

    Open

    5

    450

    45

    100--450

    7--37

    500-1000

    20-40

    Cyclo

    8

    480

    80

    150SV-SPR

    SV

    110

    1800

    100--450

    7--35

    500-1000

    20-56

    Open

    5

    450

    45

    200SV-SP

    SV

    110

    1800

    200--800

    7--38

    400-850

    30-64

    Open

    5

    520

    65

    250TV-SP

    TV

    200

    1800

    300--1000

    8--35

    400-750

    20-63

    Open

    5

    575

    65

    300TV

    TV

    200

    2100

    360--1400

    5--28

    350-700

    20-62

    Open

    5

    610

    65

    Material Options of Wet end Parts: A05, A33, A49, A61, R55

    CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps

    sp 拷贝 (2)

    Dimension Drawing

    Dimension Drawing
    Technische Daten
    12-10ST-AH-O00--
    3 (52)

    Structure Characteristics

    Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry  Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.

    三维图 拷贝 2
    三维图 拷贝 2
    外形图 拷贝 2
    外形图 拷贝 2
    pump used in slovakia (1) 拷贝
    pump used in slovakia (1) 拷贝
    pump used in slovakia 拷贝
    pump used in slovakia 拷贝

    _Indawo:

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3  Mining: Pumping slurry, improving the efficiency of ore processing

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Chemische Industrie: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.
