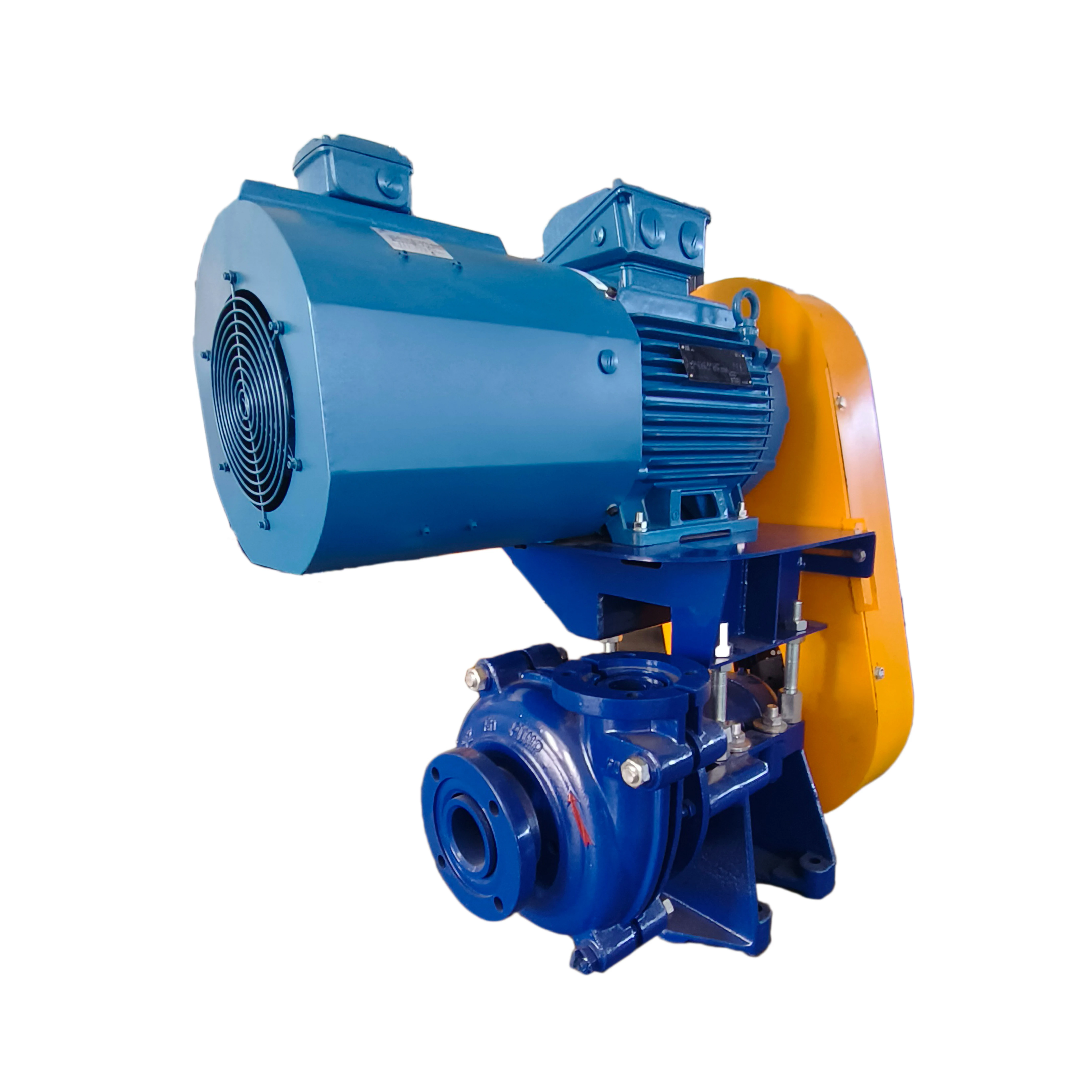

3/2C-AH Slurry Pump+CV Drive+WEG Motors

AH slurry pumps are specially designed pumping equipment to transfer high density sludge that contains big solids, and are widely used in mining, construction, and petrochemical industries, with the advantages of abrasion resistance, large conveying capacity and not prone to clogging.

    UPS...!

    No hay datos de producto.

    ir a la página de inicio

    Five Key Points for Selecting and Maintaining AH Slurry Pumps

    3852711 拷贝
    Elaborate design
    Centrifugal slurry pumps are designed specially for handling high concentration sludge. 3/2C-AH is one of the many models, and 3-inch is the pump's outlet size, 2-inch is the inlet size. When sizing the right centrifugal pumps, the following critical factors should be taken into consideration.
    1 (4) (2)
    To Know the Slurry's Characteristics
    Different slurry mixture has different viscosity, density and the solid particles are also ranging from big to small, these characteristics should be fully taken into account when selecting the suitable pump models and materials.
    1 (3) (2)
    Choose Suitable Flowrate and Head
    Choose the pump with the right flowrate and head based on actual needs, generally speaking, centrifugal slurry pumps have bigger flowrate but lower head.
    1 (2) (3)
    Choose the Right Materials
    Select the appropriate pump material according to the corrosiveness and abrasiveness of the slurry. Various materials can be selected for centrifugal slurry pumps such as high chrome alloy and natural rubber.
    1 (1) (2)
    Choose the Reliable Supplier
    Choose an experienced and reputable manufacturer to purchase centrifugal slurry pumps to ensure product quality and after-sales service.
    1 (5) (2)
    Mantenimiento regular
    Regular inspection and maintenance of the pump is an important step to guarantee its normal operation, which includes cleaning the pump body and feeding pipes, replacing seals, maintaining the lubrication and cooling systems, etc.

    Presupuesto

    AH Series Metal Slurry Pump Specifications

    Pump Model

    S×D(inch)

    Allowable
           Máx. Power (kw)

    Material

    Clear Water Performance

    Impulso

    Pricing

    Capacity Q

    Head
           H(m)

    Velocidad
           n(r/min)

    Max.Eff.
           η%

    NPSH
           (m)

    No. Of Vanes

    Vane Dia.
           (mm)

    Peso
           (kg)

    Impulso

    m3/h

    l/s

    3/2C-AH

    3×2

    30

    Metal
     (A05)

    39.6-86.4

    11-24

    12-64

    1300-2700

    55

    4-6

    5

    214

    191

    CONSTRUCTION OF AH slurry pumps

    png100-t3-scale100

    Dimension Drawing

    Dimension Drawing
    Presupuesto
    3-2C-AH 拷贝
    微信截图_20241129090513 拷贝
    微信图片_20250102140623 拷贝

    Multiple Driving Models

    2 (12)
    ZVZ Drive
    2 (14)
    DC Drive
    2 (13)
    CV Drive
    1 (14)
    CLZ Drive

    Sealing system

    22 (2)
    Packing Seal
    21 (2)
    Expelelr Seal
    22 (2)
    Packing Seal
    21 (2)
    Expelelr Seal

    Wet-end Parts

    Elastomer Wet-end Components
    High Chrome Wet-end Components
    未标题-1
    金属过流件 (2)

    Installations of AH Series Slurry Pumps

    16-14 Iron Ore (2) 拷贝
    16-14 Iron Ore (2) 拷贝
    16-14 Iron Ore (3) 拷贝
    16-14 Iron Ore (3) 拷贝
    16-14TU-AH 拷贝
    16-14TU-AH 拷贝
    16-14串联泵 拷贝
    16-14串联泵 拷贝
