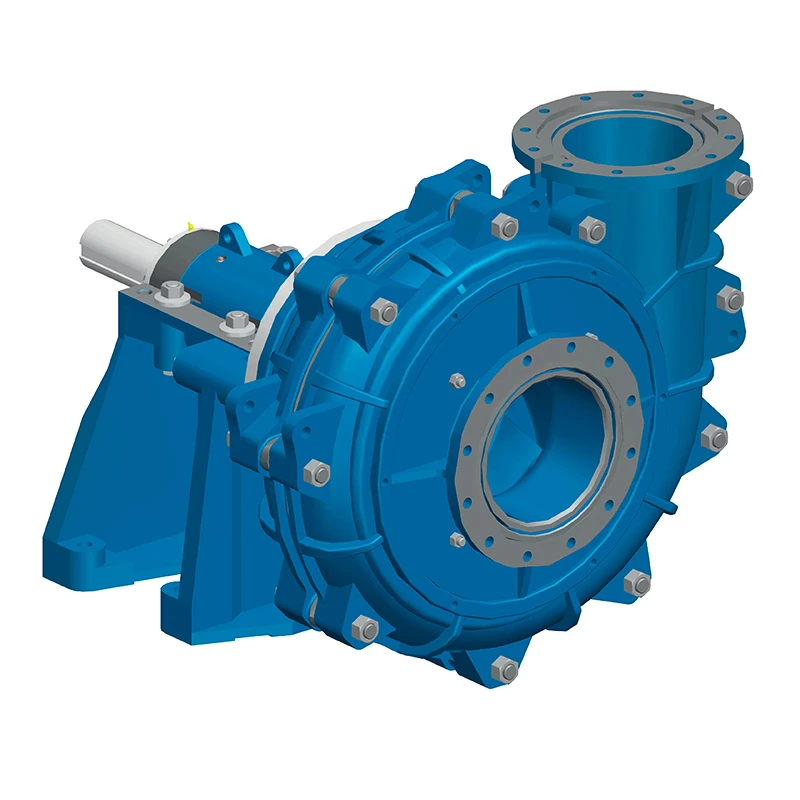

CNSME light duty slurry pump

Discharge size range: 20mm to 650mm [0.75’’ to 26’’]

Flowrates to: 10225m3/hr [45,000GPM]

Heads to: 55m [180ft]

The CNSME SL(R) series pumps are light duty for medium to lower heads, which incorporate the same design points as the SH(R) pump with higher efficiency impellers at more economical initial costs. SL(R) series provides the widest range of hydraulics from 20mm to 650mm discharge sizes. The 20mm pump is perfect for laboratory use or for demonstration.

Inquiry

Write a Review

overview

structure decomposition diagram

key features

Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime

Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs

Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs

Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life

Designed for light duties while offering excellent efficiencies

Minimal shaft/impeller overhang reduces shaft deflection and increases packing life

Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life

Diverse selections of shaft seals tailored to each specific application
