Bearing Assembly of Slurry Pump

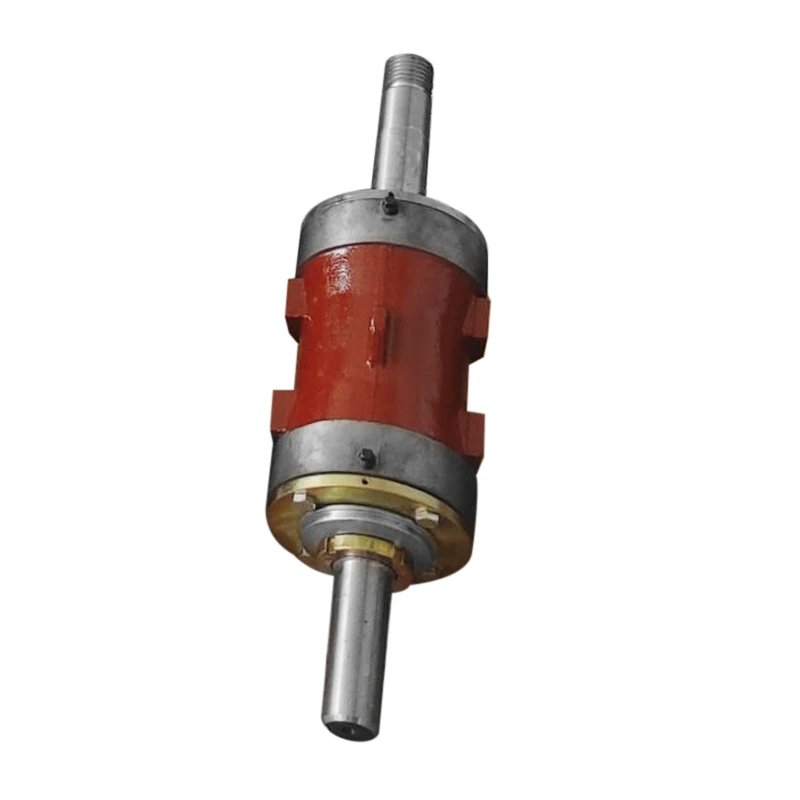

Bearing assembly is an important part of the slurry pump, also known as the rotor assembly, mainly used to connect the pump and the electric motor, transfer power and withstand the radial and axial force under the working conditions. Following is a detailed introduction of bearing assembly:

Inquiry

Write a Review

The bearing assembly of a slurry pump usually consists of the following components

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Labyrinth : used to seal both ends of the bearing to prevent grease leakage and debris from entering.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Grease cup: used to inject grease.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Grease retainer: blocks grease and discharges excess waste oil.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Bearing Housing: supports the shaft and bearing to ensure stable rotation of the shaft.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Bearing: bears radial and axial forces to achieve effective rotation.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 End cover: fixes the position of the shaft and adjusts the assembly clearance.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Shaft: connects the impeller and the coupling to transmit power.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Piston ring: cooperates with the labyrinth to play a sealing role.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Labyrinth Locknut: fixes the labyrinth and bearing at the drive end.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 End Cover Locknut: used to fasten the end cover.

Our advantage

Function and Effect

Power transmission: transmit the power of the motor to the impeller,and drive the impeller rotation.
Stability: reduce deflection and vibration through large diameter shaft and short overhang design, and extend service life.
Sealing and lubrication: adopt labyrinth seal and grease lubrication to prevent impurities from entering the bearing and ensure the normal operation of the bearing.

Lubrication Method

The bearing assembly is usually lubricated by adding grease. The amount of grease added varies according to the base type, for example:
Small base (such as B type): 30 grams of grease is required at the drive end and the pump end.
Large base (such as T type): 1150 grams of grease is required at the drive end and 2300 grams of grease is required at the pump end.

Installation and maintenance

Installation: Preheat the inner ring of the bearing during assembly, the temperature should not exceed 120℃, and ensure that the inner ring is close to the shaft shoulder or grease retainer.
Adjustment: For single-row tapered roller bearings, the axial clearance needs to be ensured by adjusting the gasket at the end cover.
Maintenance: Check the amount of grease regularly, add or replace it in time to ensure the integrity of the sealing device
