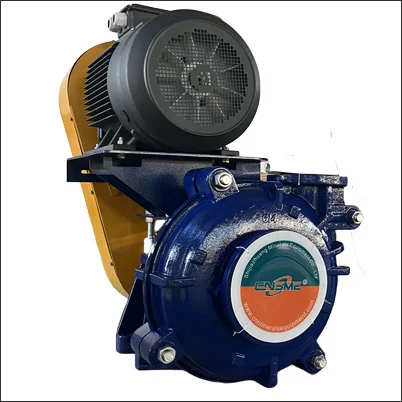

6/4E-AH Slurry Pump CV Drive 1
6/4E-AH Slurry Pump CV Drive 2
6/4E-AH Slurry Pump CV Drive 3
6/4E-AH Slurry Pump CV Drive 1
6/4E-AH Slurry Pump CV Drive 2
6/4E-AH Slurry Pump CV Drive 3

6/4E-AH Slurry Pump CV Drive

Place of Origin: CHINA

Brand Name: CNSME

Certification: ISO/CE/EAC

Model Number: 6/4E-AH

Minimum Order Quantity: 1 Set

Packaging Details: Plywood Crate



    oops...!

    no product data.

    Go to homepage

    Design Features and Benefits

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Heavy-duty construction with a through-bolt design provides ease of maintenance and minimal downtime

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3Large diameter, slow turning, high-efficiency impellers designed to achieve maximum wear life and low operating costs
    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3The cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life
    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3Diverse selections of shaft seals tailored to each specific application
    6/4E-AH Slurry Pump CV Drive 8
    Easy maintenance with its low cost
    These pumps are characterized by long life, efficient operation and easy maintenance with its low cost. Pumps are available with either a rubber or a metal lining of abrasive – and corrosion resistant materials. Bearings adopted are heavy duty, with increased load.
    6/4E-AH Slurry Pump CV Drive 9
    Application of CNSME slurry pumps
    Application of CNSME slurry pumps: mining and processing, mining and metallurgical plants, power plants, cement production enterprises, and diamond-gold mines, technological crushing line, mineral processing, etc.
    6/4 E-AH Curve

    Specifications

    AH Series Metal Slurry Pump Specifications

    Pump
    Model

    S×D
    (inch)

    Allowable
    Max. Power (kw)

    Material

    Clear Water Performance

    Impeller



    Capacity Q

    Head
    H(m)

    Speed
    n(r/min)

    Max.Eff.
    η%

    NPSH
    (m)

    No. of
    Vanes

    Vane Dia.
    (mm)

    Weight
    (kg)

    Impeller

    m3/h

    l/s

    1.5/1B-AH

    1.5×1

    15

    Metal
    (A05)

    12.6-28.8

    3.5-8

    6-68

    1200-3800

    40

    2-4

    5

    152

    91

    2/1.5B-AH

    2×1.5

    15

    32.4-72

    9-20

    6-58

    1200-3200

    45

    3.5-8

    184

    118

    3/2C-AH

    3×2

    30

    39.6-86.4

    11-24

    12-64

    1300-2700

    55

    4-6

    214

    191

    4/3C-AH

    4×3

    30

    86.4-198

    24-55

    9-52

    1000-2200

    71

    4-6

    245

    263

    4/3D-AH

    4×3

    60

    245

    363

    6/4D-AH

    6×4

    60

    162-360

    45-100

    12-56

    800-1550

    65

    5-8

    365

    626

    6/4E-AH

    6×4

    120

    365

    728

    8/6E/AH

    8×6

    120

    360-828

    100-230

    10-61

    500-1140

    72

    2-9

    510

    1473

    8/6F-AH

    8×6

    260

    510

    1496

    8/6R-AH

    8×6

    300

    510

    1655

    10/8F-AH

    10×8

    260

    612-1368

    170-380

    11-61

    400-850

    71

    4-10

    686

    3193

    10/8ST-AH

    10×8

    560

    612-1368

    170-380

    11-61

    400-850

    71

    4-10

    686

    3750

    12/10F-AH

    12×10

    260

    936-1980

    260-550

    7-68

    300-800

    82

    6

    762

    3760

    12/10ST-AH

    12×10

    560

    936-1980

    260-550

    7-68

    300-800

    82

    6

    762

    4318

    14/12ST-AH

    14×12

    560

    1260-2772

    350-770

    13-63

    300-600

    77

    3-10

    965

    6409

    16/14TU-AH

    16×14

    1200

    1368-3060

    380-850

    11-63

    250-550

    79

    4-10

    1067

    10000

    Construction of AH Slurry Pumps

    Construction of AH Slurry Pumps

    Dimension Drawing

    Dimension Drawing
    Specifications
    6/4E-AH External Dimensions
    3 (52)

    Multiple Driving Models

    ZVZ Drive
    ZVZ Drive
    DC Drive
    DC Drive
    CV Drive
    CV Drive
    CLZ Drive
    CLZ Drive

    Sealing system

    Gland Seal
    Gland Seal
    Expeller Seal
    Expeller Seal

    Wet-end Parts

    Elastomer Wet-end Components
    High Chrome Wet-end Components
    Elastomer Wet-end Components
    High Chrome Wet-end Compenents
