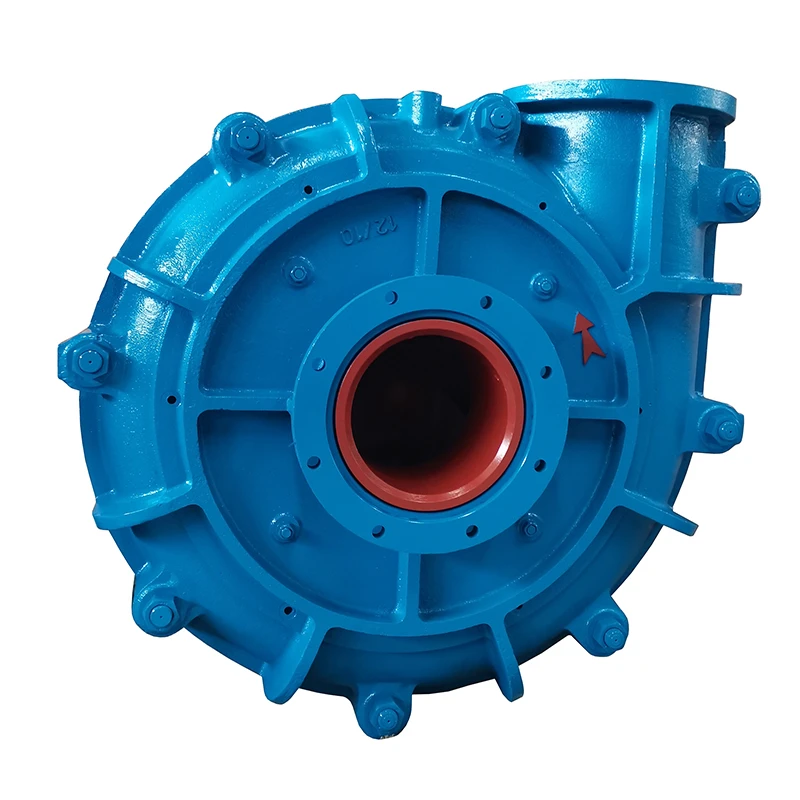

12/10ST-AH CNSME Slurry pumps

CNSME Slurry pumps are designed with double casing, wet-end parts, and rotary parts. Wet-end parts includes volute, impeller, front and back liner. The rotary parts includes the bearing assembly, which are composed of bearing housing, shaft, bearings etc.

Versatile types of shaft seals, i.e gland packing seal, centrifugal seal and mechanical seal, suit different applications.
In addition to the traditional grease lubricating system, now at CNSME, we have oil lubricating bearing assemblies as an alternative to meet different customer requests.

Inquiry

Write a Review

More Details

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 This is a heavy duty slurry pump that is extremely durable and easy to maintain. It is highly efficient and corrosion and erosion resistant.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 It has a long wear life and is extremely cost efficient. The use of effective liners make this pump easy to maintain.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The pump's many benefits include the bearing assembly, cover/frame plates, suction cover, liners, the impeller, and it has a one piece base.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 12/10ST-AH is a slurry pump with discharge size 10 inch.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 12/10ST-AH is mostly sold to our customers from Russia, Holland, Italy and other Eastern and Western European countries. CNSME will always be your reliable partner for quality slurry pumps and pump spare parts.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 These pumps are characterized by long life, efficient operation and easy maintenance with its low cost.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Pumps are available with either a rubber or a metal lining of abrasive – and corrosion resistant materials. Used bearings for heavy duty, with the increased load on them.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Application of CNSME slurry pumps: mining and processing, mining and metallurgical plants, power plants, cement production enterprises, and diamond-gold mines, technological crushing line, mineral processing, etc.

Specifications

SH Series Metal Slurry Pump Specifications
Pump Model	S×D (inch)	Allowable Max. Power (kw)	Material	Clear Water Performance						Impeller		Pricing
			Material	Capacity Q		Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
			Impeller	m3/h	l/s	Head H(m)	Speed n(r/min)	Max.Eff. η%	NPSH (m)	No. of Vanes	Vane Dia. (mm)	Weight (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000

CONSTRUCTION OF AH slurry pumps

DIMENSION DRAWING

Dimension Drawing
