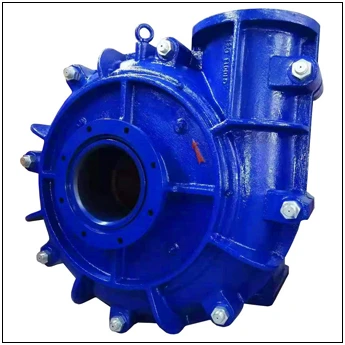

▶CNSME rubber lined slurry pumps are designed for heavy duty corrosive slurries, and suitable for medium with a pH ranging from 2 to 4.
▶This pump is perfect for difficult mill duties. It has a long wear life and is extremely cost efficient. The use of effective liners make this pump easy to maintain.
▶This is a heavy duty slurry pump that is extremely durable and easy to maintain. It is highly efficient and corrosion and erosion resistant
▶Applications like fine tailings, coal, heavy slurry, Ni-acid slurry, Phosphoric acid, process chemical, pulp and paper.
Sonraíochtaí:
| Pump Range | 1-inch to 18-inch |
| Cumas | up to 4000m3/h |
| Total Delivery Head | up to 52m |
Ábhair:
| Description of Parts | Ábhar | Material Code |
| Pump Body, Split-Casing | Grey Iron | G01/G02 |
| Ductile Iron | D20/D21 | |
| Impeller, Inner Liners | Natural Rubber | R55 |
| Premium Black Natural Rubber | R33 | |
| Black Soft Rubber | R26 | |
| Black Natural Rubber | R08 | |
| Shaft | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Shaft Sleeve | 304 Stainless Steel | C21 |
| 316 Stainless Steel | C23 | |
| Aluminum Oxide Coating, White | J04 | |
| Chrome Oxide Coating, Black | J05 |
Driven Type:
DC(z): The pump and the engine is directlyconnetced by a coupling.
Belt-driven Types: The pump and the engine is connetced by pulleys and belts — CV, CR(z), ZV(z).
