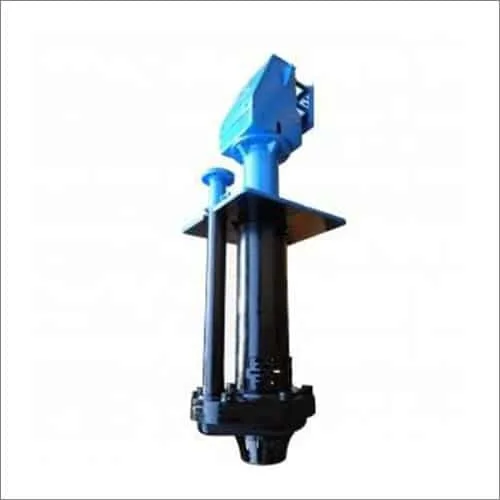

Pump Model: SVR/65Q
The SVR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. The heavy duty catilever design makes the SVR sump pump ideally suited for heavy continous handling of corrosive liquids and slurries whilst submerged in sumps or pits. The rugged SVR heavy duty sump pumps are available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in:
Minerals Processing
Coal Preparation
Chemical Processing
Effluent Handling
and almost every other tank, pit or hole-in-the-ground slurry handling situation. The SVR design with elastomer covered components makes it ideal for: Corrosive slurries; Large Particle sizes; High density slurries; Heavy duties demanding cantilever shafts.
材質構造:
| 描述 | Standard Material | Optional Material |
| Impeller | Natural Rubber R55 | |
| Casing | Natural Rubber R55 | |
| Back Liner | Natural Rubber R55 | |
| Shaft | Carbon Steel | SUS304, SUS316(L) |
| Discharge Pipe | 20# Mild Steel | SUS304, SUS316(L) |
| Column | 20# Mild Steel | SUS304, SUS316(L) |
規格:
|
泵浦
模型 |
Allowable
最大限度。 力量 (kw) | 材料 | Clear Water Performance | Impeller | |||||
| Capacity Q |
Head
H(m) |
速度
n(r/min) |
Max.Eff.
η% |
長度
Shaft (mm) |
No. of
Vanes |
Vane Dia.
(mm) | |||
| Impeller | 米 3 /h | ||||||||
| SVR/40P | 15 |
Rubber
(R55) | 19.44-43.2 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 |
| SVR/65Q | 30 | 23.4-111 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | ||
| SVR/100R | 75 | 54-289 | 5-35 | 500-1200 | 56 | 1500 | 390 | ||
| SVR/150S | 110 | 72-504 | 10-35 | 500-1000 | 56 | 1800 |
480
| ||
