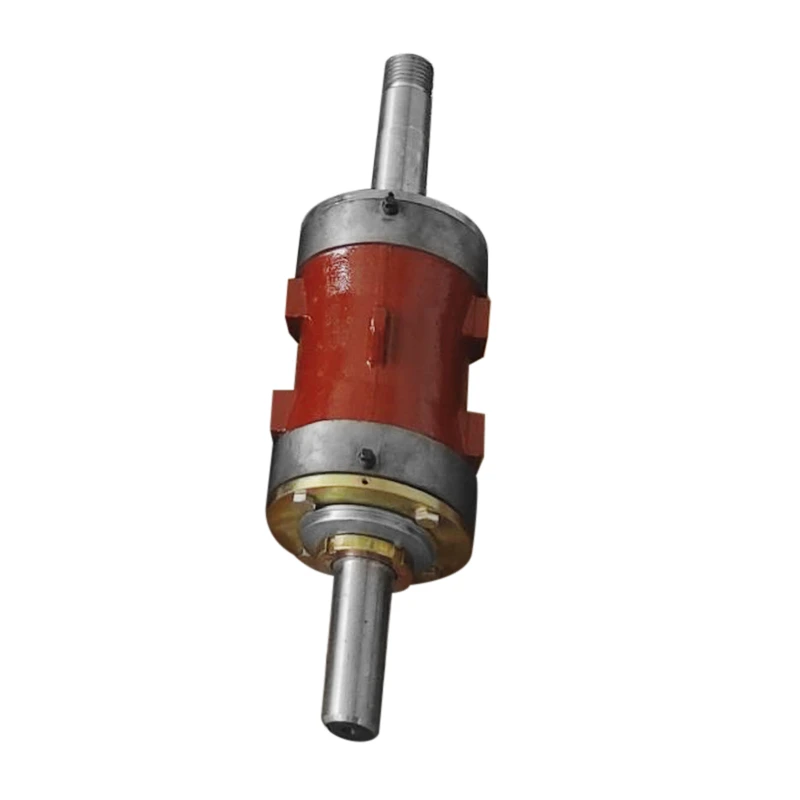

Bearing Assembly of Slurry Pump

Bearing assembly is an important part of the slurry pump, also known as the rotor assembly, mainly used to connect the pump and the electric motor, transfer power and withstand the radial and axial force under the working conditions. Following is a detailed introduction of bearing assembly:

    Giáo sư...!

    Không có dữ liệu sản phẩm.

    Đi đến trang chủ

    The bearing assembly of a slurry pump usually consists of the following components

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Labyrinth : used to seal both ends of the bearing to prevent grease leakage and debris from entering.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Grease cup: used to inject grease.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Grease retainer: blocks grease and discharges excess waste oil.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Bearing Housing: supports the shaft and bearing to ensure stable rotation of the shaft.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Bearing: bears radial and axial forces to achieve effective rotation.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 End cover: fixes the position of the shaft and adjusts the assembly clearance.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Shaft: connects the impeller and the coupling to transmit power.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Piston ring: cooperates with the labyrinth to play a sealing role.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Labyrinth Locknut: fixes the labyrinth and bearing at the drive end.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 End Cover Locknut: used to fasten the end cover.

    微信图片_20241211142633 拷贝

    Our advantage

    DSC_0078 拷贝
    Function and Effect
    Power transmission: transmit the power of the motor to the impeller,and drive the impeller rotation.
    Stability: reduce deflection and vibration through large diameter shaft and short overhang design, and extend service life.
    Sealing and lubrication: adopt labyrinth seal and grease lubrication to prevent impurities from entering the bearing and ensure the normal operation of the bearing.
    DSC_0082 拷贝
    Lubrication Method
    The bearing assembly is usually lubricated by adding grease. The amount of grease added varies according to the base type, for example:
    Small base (such as B type): 30 grams of grease is required at the drive end and the pump end.
    Large base (such as T type): 1150 grams of grease is required at the drive end and 2300 grams of grease is required at the pump end.
    DSC_0020 拷贝
    Installation and maintenance
    Installation: Preheat the inner ring of the bearing during assembly, the temperature should not exceed 120℃, and ensure that the inner ring is close to the shaft shoulder or grease retainer.
    Adjustment: For single-row tapered roller bearings, the axial clearance needs to be ensured by adjusting the gasket at the end cover.
    Maintenance: Check the amount of grease regularly, add or replace it in time to ensure the integrity of the sealing device

    Paparan produk

    G005M 拷贝
    G005M 拷贝
    图片5 拷贝 (3)
    图片5 拷贝 (3)
    bearing assembly 拷贝 (2)
    bearing assembly 拷贝 (2)
    R005M 拷贝 (2)
    R005M 拷贝 (2)

    CNSME® Bearing Assembly of Pump Model

    Bearing Assembly

    SP Vertical Pumps

    PV4005M

    40PV/SP

    QV65005M

    65QV/SP

    RV10005M

    100RV/SP

    SV15005M

    150SV/SP

    SV20005M

    200SV/SP

    SV25005M

    250TV/SP

    TV30005M

    300TV/SP

    Bearing Assembly

    G Gravel Pumps

    DAM005M

    6/4D-G

    E005M

    8/6E-G

    F005M

    10/8F-G

    S005-1M

    10/8S-G

    FG005M

    12/10F-G

    GG005M

    12/10G-G

    G005M

    14/12G-G

    G005-1M

    18/16G-G

    HG005M

    18/16H-G

    T005-1M

    18/16T-G

    FG005-1M

    10/8F-GH

    FFAM005-1M

    10/8FF-GH

    S005-3M

    10/8S-GH

    G005M

    12/10G-GH

    T005-1M

    12/10T-GH

    HG005M

    16/14H-GH

    HG005M

    18/16H-GH

    D005M

    4/3D-AH

    Bearing Assembly

    AH Gravel Pumps

    DD005M

    4/3DD-AH

    DAM005M

    6/4D-AH

    DDAM005M

    6/4DD-AH

    E005M

    6/4E-AH

    EE005M

    6/4EE-AH

    EAM005M

    8/6E-AH

    EEAM005M

    8/6EE-AH

    F005M

    8/6F-AH

    FF005M

    8/6FF-AH

    R005M

    8/6R-AH

    FAM005M

    10/8F-AH, 12/10F-AH, 14/12F-AH

    FFAM005M

    10/8FF-AH, 12/10FF-AH, 14/12FF-AH

    SH005M

    10/8ST-AH, 12/10ST-AH, 14/12ST-AH

    GAM005M

    16/14G-AH

    GGAM005M

    16/14GG-AH

    TH005M

    16/14TU-AH

    HG005M

    16/14H-AH

    GAM005-1M

    20/18G-AH

    GGAM005M

    20/18GG-AH

    T005M

    20/18TU-AH

    U005M

    20/18U-AH

    Bearing Assembly

    L Slurry Pumps

    ASC005M

    20A-L

    BSC005M

    50B-L

    CAM005M

    75C-L

    DSC005M

    100D-L

    ESC005M

    150E-L

    EAM005M

    250E-L

    F005M

    250F-L

    R005-1M

    250R-L

    FFRS005M

    300FF-L

    S005M

    300S-L, 350S-L, 400ST-L, 450ST-L, 500ST-L

    FF005-1M

    350FF-L

    G005-1M

    400G-L, 450G-L

    GG005-2M

    450GG-L

    T005M

    500TU-L, 550TU-L, 650TU-L

    HT005M

    550H-L

    U005M

    650U-L
