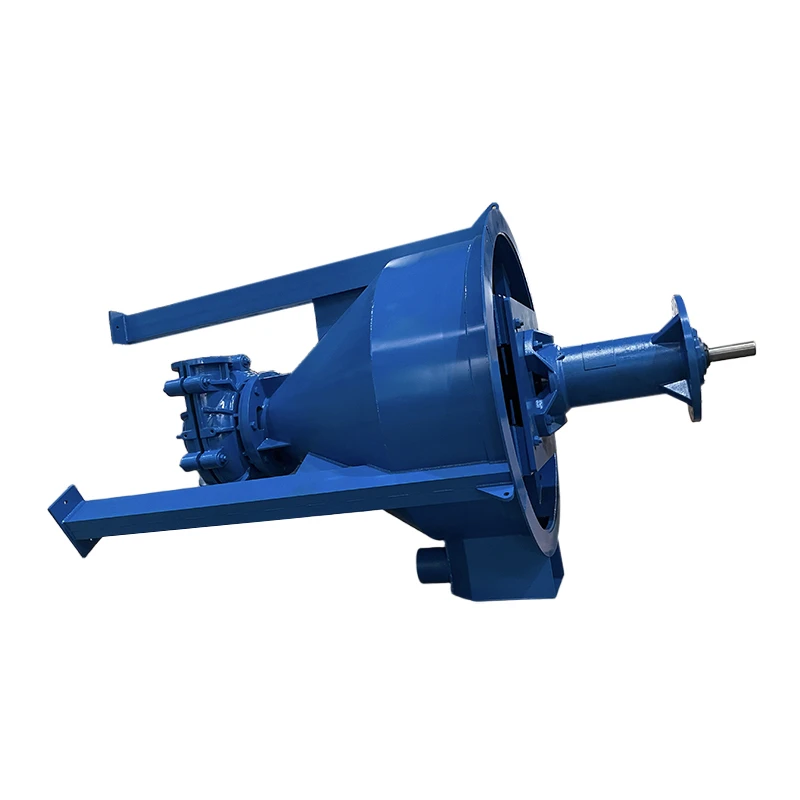

6QV-AF vertical froth pump: Specially Designed For froth Slurry

6QV-AF froth pump stands out in the froth pump market with its advantages such as efficient froth elimination, flexible drive mode, advanced material tank design, double casing structure, excellent self -suction ability, wide adjustment range, easy maintenance, strong wear resistance and corrosion resistance, etc., and is especially suitable for various flotation process.  It is the deal choice for transporting froth like slurry.

    Giáo sư...!

    Không có dữ liệu sản phẩm.

    Đi đến trang chủ

    Produktvorteile

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Efficient froth Removal:  6SV-AF vertical froth pump can effectively eliminate the froth in the slurry during work, and can still work normally even when the feed is insufficient  It is especially suitable for various flotation processes and is an ideal product for transporting froth slurry.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Advantage Tank Design:  The tank is made of steel structure or stainless steel, etc., and is equipped with a tangent entrance and overflow nozzle  The overflow nozzle can conveniently send the excess incoming material back to the tank, and the tangent entrance can quickly allow the material to enter the pump and eliminate part of the froth.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Double Casing Structure:  The pump head structure is a double casing structure  Depending on the conveying medium, the wet-end parts can be made of metal, rubber or other non-metallic materials  This design not only improves the durability of the pump, but also adapts to the conveying needs of different media.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Strong Self-suction Ability:  The 6SV-AF froth pump has excellent self-suction ability, which can quickly inhale and transport the froth mixture without an external water transfer device  This feature makes the pump more flexible and reliable in the complex and changeable field environment, reducing the complexity of installation and operation.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Easy To Maintain: The design of the 6SV-AF froth pump considers ease of maintenance, and many key parts such as bearings, seals, etc., can be easily disassembled and replaced  In addition, the frame plate is compact, which is easy to clean and inspect, reducing the difficulty and cost of maintenance.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 6SV-AF froth Pump Performance Parameters

    Installed With Power P(KW)

    15-75

    Flow Q(m³/h)

    80-393

    Head H(m)

    5-25

    Speed n(r/min)

    250-680

    Efficient η%

    55

    Inlet(mm)

    200

    Outlet(mm)

    150

    未标题-1 (30)

    Technische Daten

    Modell

    Leistung

    Kapazität

    Head

    Geschwindigkeit

    Eff.

    Inlet dia.

    Outlet dia.

    P(KW)

    Q(m3/h)

    H(m)

    n(r/min)

    ŋ%

    (mm)

    (mm)

    2QV-AF

    3-15

    6-43

    6-30

    800-1800

    45

    100

    50

    3QV-AF

    3-18.5

    23-78

    5-28

    700-1500

    55

    150

    75

    4RV-AF

    5.5-37

    33-187

    5-28

    500-1050

    55

    150

    100

    6SV-AF

    15-75

    80-393

    5-25

    250-680

    55

    200

    150

    8SV-AF

    37-110

    126-575

    5-26

    350-650

    55

    250

    200

    Structure of 6QV-AF VERTICAL FROTH PUMP

    1 (80)
    1 (80)
    2 (64)
    2 (64)

    CONSTRUCTION OF 6QV-AF VERTICAL FROTH PUMP

    图片 拷贝 (5)

    DIMENSION DRAWING

    微信图片_20250102140752 拷贝 2
