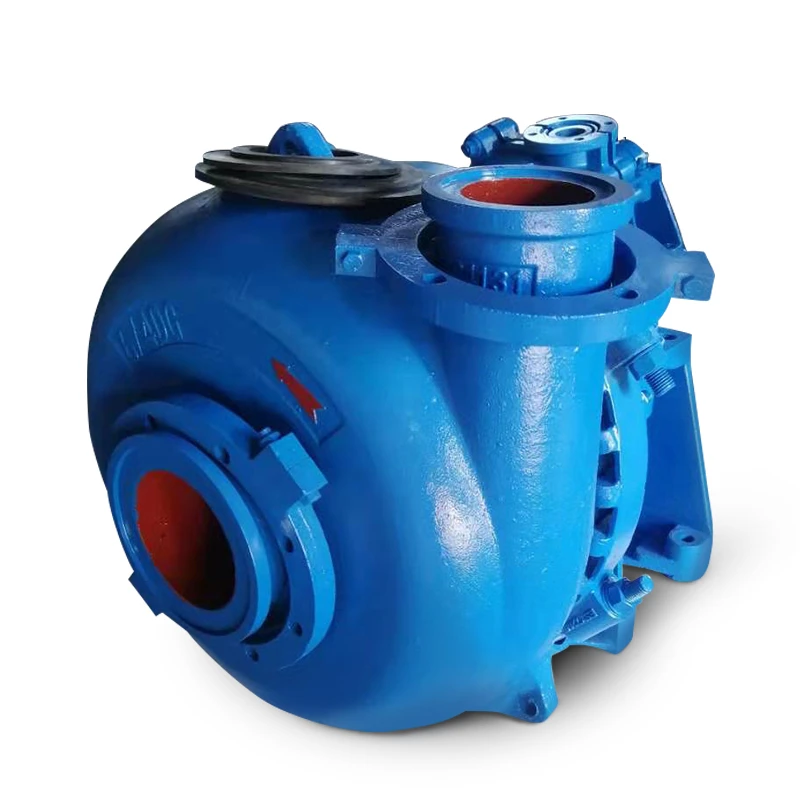

6/4D-G Gravel Pump - Energy Dfficient, Designed For Small To Medium Flow Fates!
Caractéristiques
Pump Model | Allowable Max. Puissance (kW) | Clear Water Performance | Impeller | |||||
Capacity Q |
Head
|
Vitesse
|
Max.Eff.
|
NPSH
|
Non. of
|
Vane Dia.
| ||
m3/h | ||||||||
6/4D-G | 60 | 36-250 | 5-52 | 600-1400 | 58 | 2.5-3.5 | 3 | 378 |
8/6E-G | 120 | 126-576 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 | |
10/8F-G | 260 | 216-936 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 | |
12/10G-G | 600 | 360-1440 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 | |
14/12G-G | 600 | 432-3168 | 10-64 | 300-700 | 68 | 2-8 | 864 | |
18/16T-G | 1200 | 720-3600 | 10-50 | 250-500 | 72 | 3-6 | 1067 | |
Structure OF 8/6E-G Gravel Pump
Drive Models
The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.
CONSTRUCTION OF 8/6E-G Gravel
quick selection
Sealing System
Application
