የምርት ጥቅሞች
High Head, High Efficiency: Multi level impeller design effectively improves the head and pumping capacity.
Convenient Maintenance: Vertical structure design, no need for shaft seal and sealing water, reducing maintenance costs.
Strong Adaptability: According to the level of the slurry pool, different lengths of pump drive shafts or suction tubes can be selected to adapt to a variety of working conditions.
Advanced Technology: Introducing foreign advanced slurry pump technology with excellent performance.
High Reliability: High chromium cast iron and rubber materials are used to improve the wear resistance or corrosion resistance of the impeller and pump casing.
Environmental Protection And Energy Saving: Low noise and low vibration design to reduce the impact on the working environment.
ዝርዝሮች
Specifications of SP(R) Series Vertical Slurry Pumps | |||||||||||
ሞዴል |
Frame
|
Max.
|
Sump
| Performance for Clear Water | Impeller | ||||||
Capacity Q | Head | Speed | Efficiency | ዓይነት |
No. of
|
Vane Φ
|
Passage
| ||||
m3/hr | m | r/min | % | ||||||||
40PV-SP | PV | 15 | 900 | 10--44 | 5--28 | 1000-2200 | 20-40 | Open | 5 | 188 | 12 |
10--40 | 9--37 | 1400-2600 | 15-32 | Cyclo | 8 | 195 | 26 | ||||
40PV-SPR | PV | 15 | 900 | 10--50 | 8--52 | 1200-3000 | 20-40 | Open | 5 | 188 | 12 |
65QV-SP | QV | 30 | 1200 | 20--120 | 4--56 | 600-2000 | 25-51 | Open | 5 | 280 | 15 |
20--110 | 5--28 | 700-1500 | 20-35 | Cyclo | 8 | 290 | 40 | ||||
65QV-SPR | QV | 30 | 1200 | 20--100 | 8--46 | 700-850 | 20-47.5 | Open | 5 | 280 | 23 |
100RV-SP | RV | 75 | 1500 | 50--300 | 6--50 | 500-1400 | 20-56 | Open | 5 | 370 | 32 |
50--250 | 6--31 | 600-1200 | 20-40 | Cyclo | 8 | 390 | 70 | ||||
100RV-SPR | RV | 75 | 1500 | 50--270 | 9--46 | 600-1400 | 30-60 | Open | 5 | 370 | 40 |
150SV-SP | SV | 110 | 1800 | 100--500 | 7--37 | 500-1000 | 20-55 | Open | 5 | 450 | 45 |
100--450 | 7--37 | 500-1000 | 20-40 | Cyclo | 8 | 480 | 80 | ||||
150SV-SPR | SV | 110 | 1800 | 100--450 | 7--35 | 500-1000 | 20-56 | Open | 5 | 450 | 45 |
200SV-SP | SV | 110 | 1800 | 200--800 | 7--38 | 400-850 | 30-64 | Open | 5 | 520 | 65 |
250TV-SP | TV | 200 | 1800 | 300--1000 | 8--35 | 400-750 | 20-63 | Open | 5 | 575 | 65 |
300TV | TV | 200 | 2100 | 360--1400 | 5--28 | 350-700 | 20-62 | Open | 5 | 610 | 65 |
Material Options of Wet end Parts: A05, A33, A49, A61, R55 |

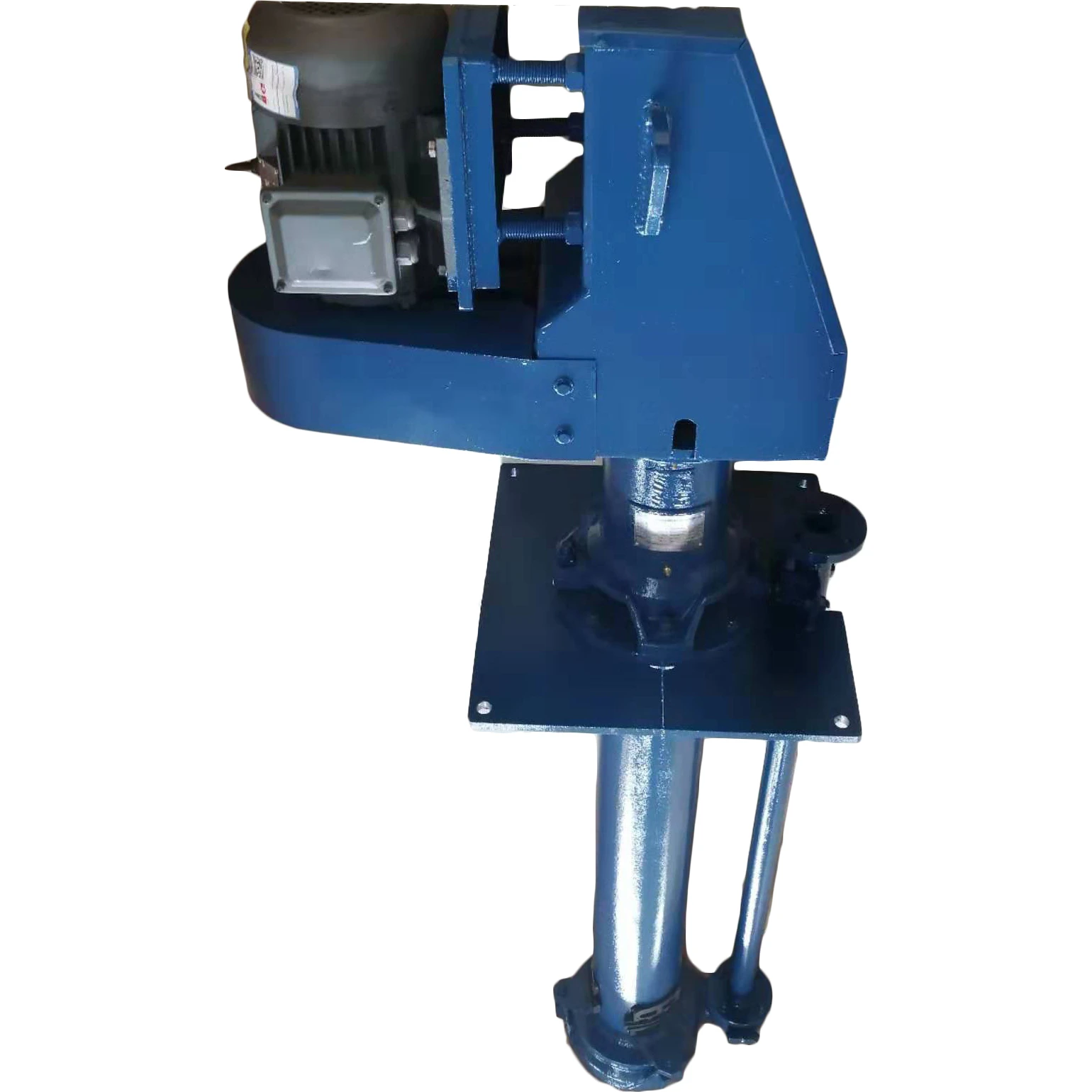

CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps
Dimension Drawing
Structure Characteristics
Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.
መተግበሪያ
Mining:
Pumping slurry, improving the efficiency of ore processing
Metallurgy:
Handling high concentration slurry, guaranteeing production continuity.
Coal:
Conveying coal slurry in coal washing process, improving coal washing efficiency.
የኬሚካል ኢንዱስትሪ:
Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.
