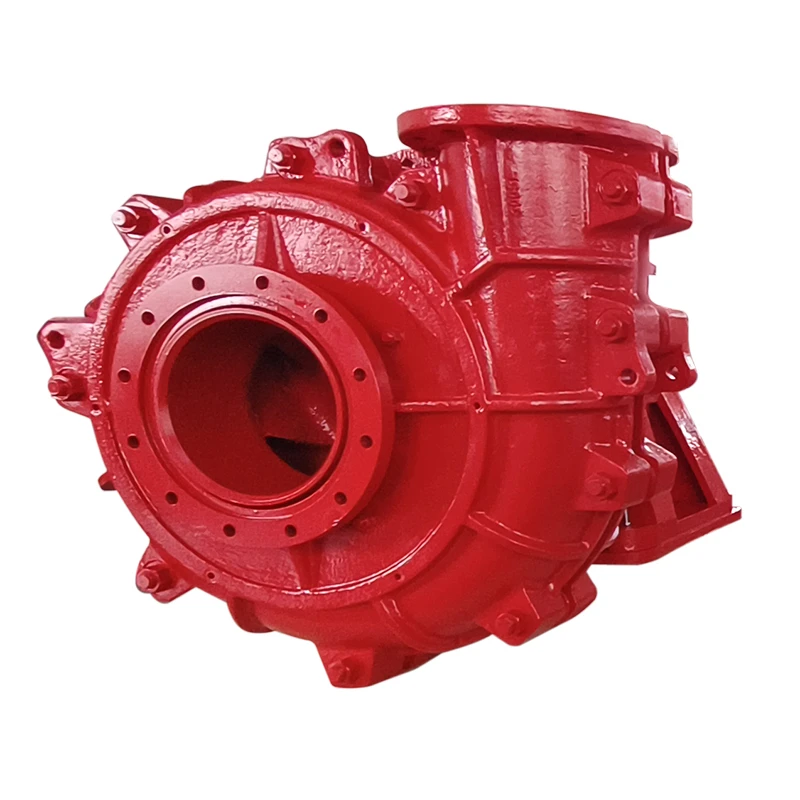

300S-L type slurry pump
300S-L type slurry pump is a kind of light slurry pump, which is widely used in many industries, such as beneficiation, metallurgy, coal and building materials. It has the structural characteristics of cantilever and horizontal centrifugal slurry pump. The outlet position can be installed and used at 45 ℃ intervals and rotated at eight different angles as needed, which provides great flexibility for on-site installation.
Material Features
Caractéristiques
Modèle | Allowable | Clear Water Performance |
| |||||
Max. Pouvoir | Capacity Q | Head H | Speed n | Eff. η | NPSH | Impeller Dia. | ||
(kw) | m3/h | l/s | (m) | (r/min) | (%） | (m) | (mm) | |
300S-L | 560 | 468-2538 | 130-708 | 8-60 | 400-950 | 79 | 2-10 | 653 |
Structure of 300S L-type slurry pump
Cantilever Horizontal Design: It adopts cantilever structure, and the overall layout is compact, which is convenient for installation and maintenance.
Rotatable Outlet: The position of the outlet can be installed at eight different angles at intervals of 45℃ according to the needs of the actual working conditions with strong adaptability.
Construction of 300S L-type slurry pump
Dimension Drawing
Drive Models
The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.
Sealing System
wet-end Parts
