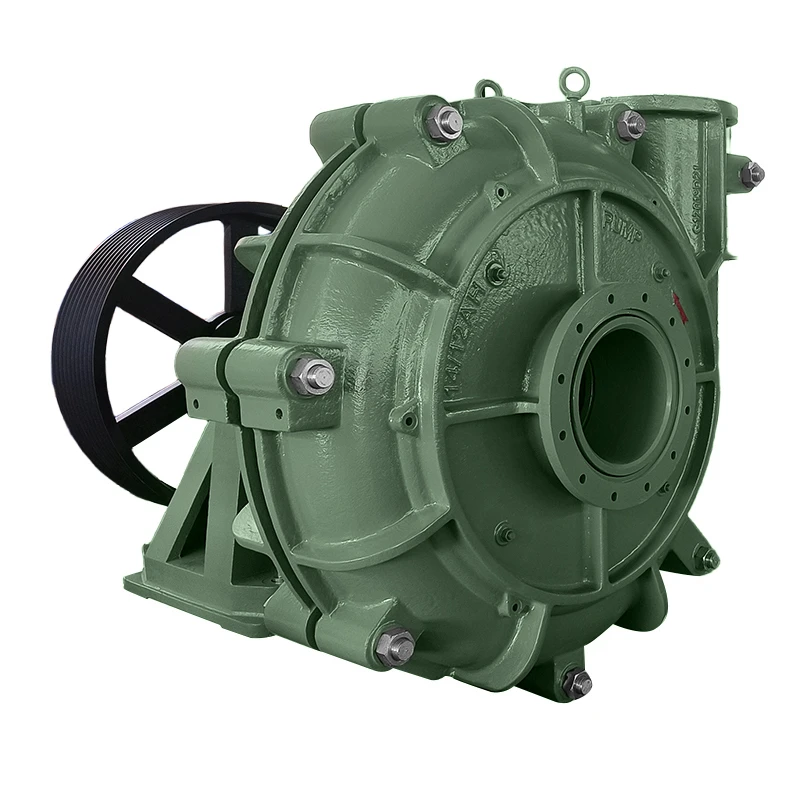

14/12ST-AH slurry pumps

14/12ST-AH slurry pump for single-stage single suction, cantilever, horizontal, centrifugal slurry pump, the pump belongs to the AH-type slurry pump, the introduction of foreign advanced technology manufactured from advanced design theory, excellent performance, can be used in multi-stage parallel tandem, withstand pressure, the pump belongs to the double-pump casing structure of the pump slurry pump, and its wet-end parts are made of high chromium wear-resistant metal and wear-resistant rubber.

cuộc điều tra

Viết đánh giá

More Details

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The pump has a wide range of performance, good vapor corrosion performance, high efficiency Multi-stage series connection technology can be used to meet the long-distance transmission.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 A variety of materials are available for over-flow parts.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Multiple transmission modes are available for choice, which makes the pump operate under the best industrial and mining conditions Long service life, high operating efficiency, can meet a variety of harsh conveying conditions.

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Long service life of wearing parts, high efficiency, low energy consumption, high reliability, can be multi-stage series connection.

Özellikler

AH Series Metal Slurry Pump Specifications
Pump Örnek	S×D (inch)	Allowable Maksimum. Power (kw)	Malzeme	Clear Water Performance						Impeller		Pricing
			Malzeme	Capacity Q		Head H(m)	Hız n(r/min)	Max.Eff. η%	NPSH (m)	HAYIR. of Vanes	Vane Dia. (mm)	Ağırlık (kg)
			Impeller	m3/h	l/s	Head H(m)	Hız n(r/min)	Max.Eff. η%	NPSH (m)	HAYIR. of Vanes	Vane Dia. (mm)	Ağırlık (kg)
1.5/1B-AH	1.5×1	15	Metal (A05)	12.6-28.8	3.5-8	6-68	1200-3800	40	2-4	5	152	91
2/1.5B-AH	2×1.5	15		32.4-72	9-20	6-58	1200-3200	45	3.5-8		184	118
3/2C-AH	3×2	30		39.6-86.4	11-24	12-64	1300-2700	55	4-6		214	191
4/3C-AH	4×3	30		86.4-198	24-55	9-52	1000-2200	71	4-6		245	263
4/3D-AH	4×3	60		86.4-198	24-55	9-52	1000-2200	71	4-6		245	363
6/4D-AH	6×4	60		162-360	45-100	12-56	800-1550	65	5-8		365	626
6/4E-AH	6×4	120		162-360	45-100	12-56	800-1550	65	5-8		365	728
8/6E/AH	8×6	120		360-828	100-230	10-61	500-1140	72	2-9		510	1473
8/6F-AH	8×6	260									510	1496
8/6R-AH	8×6	300									510	1655
10/8F-AH	10×8	260		612-1368	170-380	11-61	400-850	71	4-10		686	3193
10/8ST-AH	10×8	560		612-1368	170-380	11-61	400-850	71	4-10		686	3750
12/10F-AH	12×10	260		936-1980	260-550	7-68	300-800	82	6		762	3760
12/10ST-AH	12×10	560		936-1980	260-550	7-68	300-800	82	6		762	4318
14/12ST-AH	14×12	560		1260-2772	350-770	13-63	300-600	77	3-10		965	6409
16/14TU-AH	16×14	1200		1368-3060	380-850	11-63	250-550	79	4-10		1067	10000

CONSTRUCTION OF AH slurry pumps

DIMENSION DRAWING

Dimension Drawing

Özellikler

AH Curves 需要逆时针90度再用 (4)

Multiple Driving Models

ZVZ Drive

DC Drive

CV Drive

CLZ Drive

Sealing system

Packing Seal

Expelelr Seal

Packing Seal

Expelelr Seal

Wet-end Parts

Elastomer Wet-end Components

High Chrome Wet-end Components

AH series slurry pumps structure

三维图拷贝 (17)

结构拷贝 (4)

Installations of AH Series Slurry Pumps

图片2 拷贝

图片1 拷贝 (3)

图片5 拷贝

图片7 拷贝
