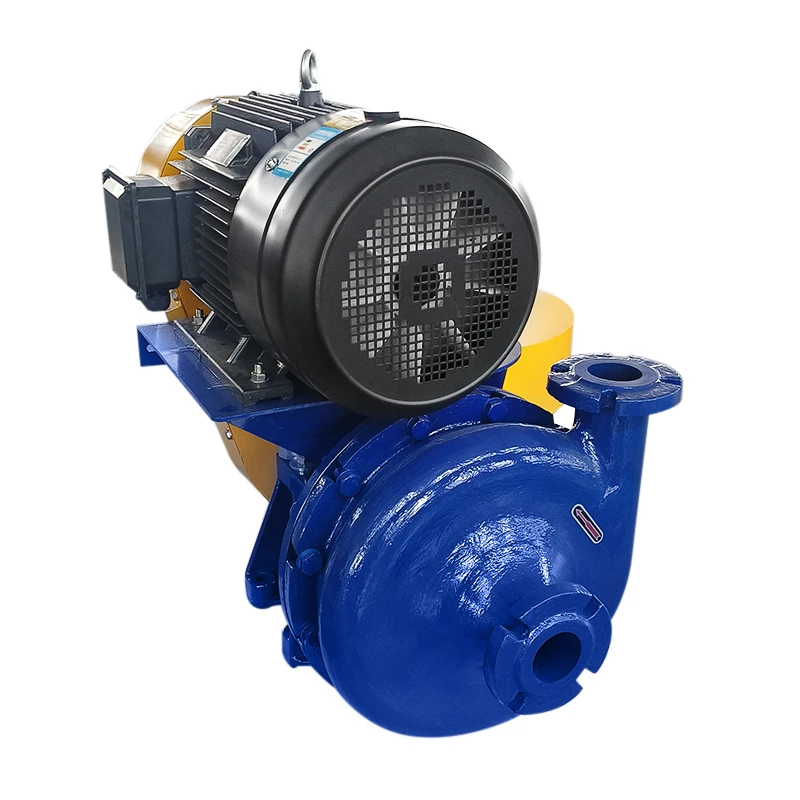

CNSME® 3/3TC Horizontal Carbon Transfer Slurry Pump

The TC range of pumps is designed specifically for continuous use in slurry applications with larger or breakage sensitive particles.

The large volume internal profiles combined with the recessed open impeller design, reduce particle interaction as well as limit potential blocakges. And the unlined all-metal design of the wet-end parts is suitable for both horizontal and vertical pumps.

zapytanie

Napisać recenzję

Avantajên Product

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The unique design of recessed impeller sets up an internal vortex that transfers the energy to the slurry being pumped When compared to conventional slurry pumps, this soft transfer of energy limits the amount of particle degradation significantly

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Equally sized suction and discharge determines the maximum particle size that the pump can handle

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The big volume casing design reduces velocities further decreasing wear and partible degradation

Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Robust bearing assemblies consisting of heavy duty taper roller bearings, minimum shaft overhang and rigid large diameter shafts contribute to trouble free operation on both horizontal and vertical pumps.

Specifications

Loại	Allowable Mating Max Erk (Kw)	Clear Water Performance
Loại	Allowable Mating Max Erk (Kw)	Capacity/ Q m³/hr	Head/m	Speed/rpm	Max Kêrhatîya bicîanîn /%	NPSH/m	Nos of Vane	Çap /mm
2/2TC	15	12.6-28.8	6-68	1200-3800	40	2-4	8	280
3/3TC	15	32.4-72	6-58	1200-3200	45	3.5-8	8	356
4/4TC	30	39.6-86.4	12-64	1300-2700	55	4-6	8	214
6/6TC	30	86.4-198	9-52	1000-2200	71	4-6	8	245
8/8TC	60	162-360	12-56	800-1550	65	5-8	8	365
250/250TC	300	360-828	10-61	500-1140	72	2-9	8	510
