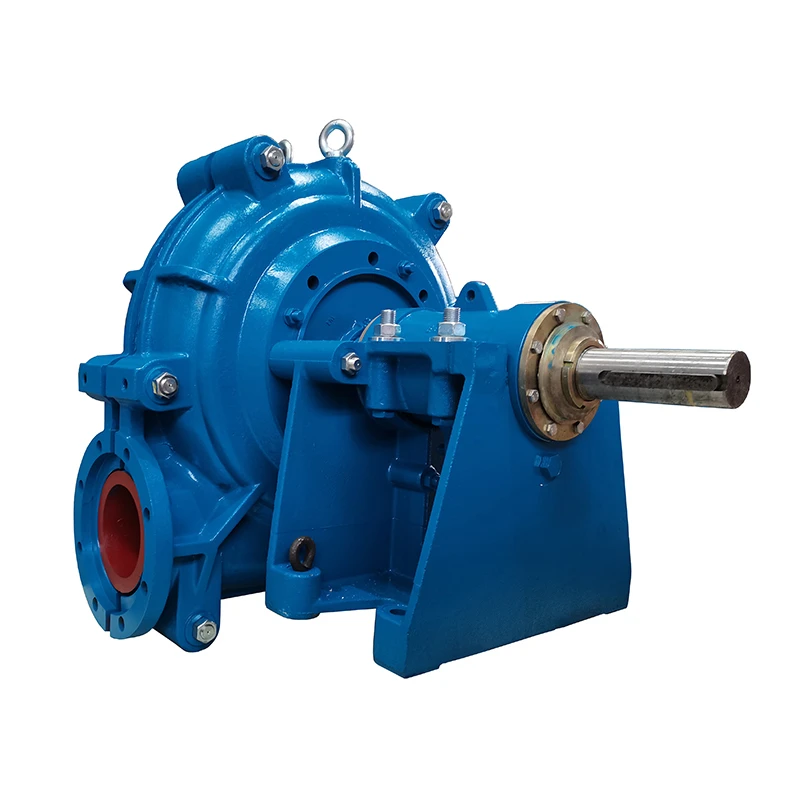

CNSME®20A-L Light Duty Slurry Pump

Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
The cartridge-style bearing assembly allows for maintenance in a clean environment without removing the pump, resulting in reliable operation and prolonged bearing life.
Diverse selections of shaft seals tailored to each specific application

zapytanie

Napisać recenzję

KEY FEATURES

Heavy-duty construction with a through-bolt design provides ease of maintenance and minimal downtime.

Large diameter, slow turning, high-efficiency impellers designed to achieve maximum wear life and low operating costs.

Large, open internal passages are designed to reduce internal velocities, maximize wear life, and lower operating costs.

Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.

Designed for light duties while offering excellent efficiencies.

Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.

The cartridge-style bearing assembly allows for maintenance in a clean environment without removing the pump, resulting in reliable operation and prolonged bearing life.

Diverse selections of shaft seals tailored to each specific application

TYPICAL APPLICATIONS

Ball Mill Discharge

Heavy Media

Mineral Sands

Coarse Sand

Bottom/fly Ash

Fine Tailings

規格

模型	Allowable	Clear Water Performance
	最大限度。力量	Capacity Q		Head H	Speed n	Eff. η	NPSH	Impeller Dia.
	(kw)	m3/h	l/s	(m)	(r/min)	(%）	(m)	(mm)
20A-L	7.5	2.34-10.8	0.65-3	6-37	1400-3000	40	2.5-3	152.4

Structure Of 20A-L light DUTY slurry pump

图片拷贝

jiegou 拷贝 (2)

Construction Of 20A-L light DUTY slurry pump

Dimension Drawing

Drive Models

The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.
