14/12ST-AH slurry pumps 1
14/12ST-AH slurry pumps 2
14/12ST-AH slurry pumps 3
14/12ST-AH slurry pumps 1
14/12ST-AH slurry pumps 2
14/12ST-AH slurry pumps 3

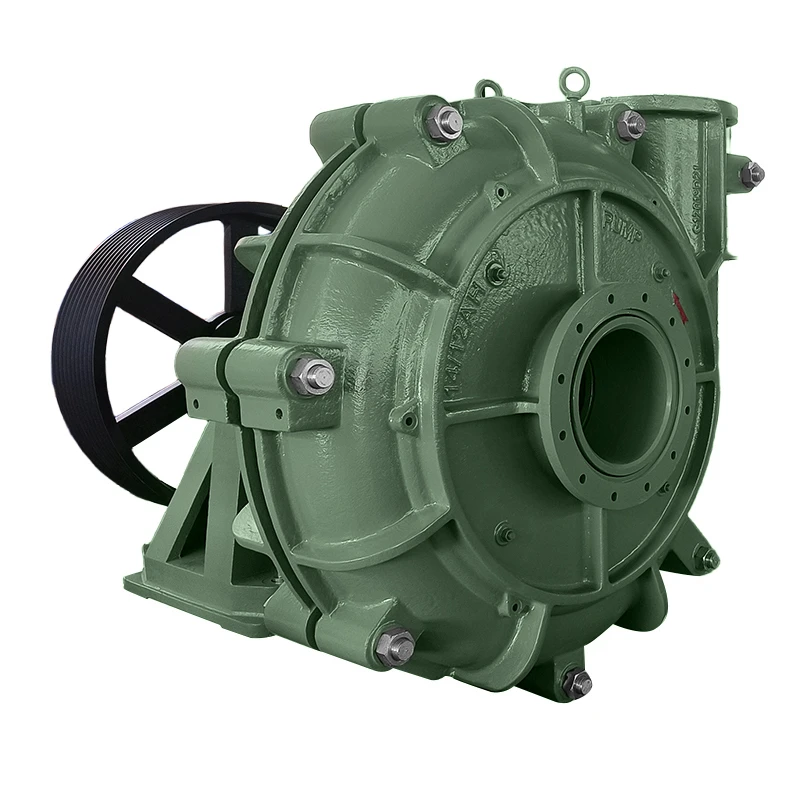

14/12ST-AH slurry pumps

14/12ST-AH slurry pump for single-stage single suction, cantilever, horizontal, centrifugal slurry pump, the pump belongs to the AH-type slurry pump, the introduction of foreign advanced technology manufactured from advanced design theory, excellent performance, can be used in multi-stage parallel tandem, withstand pressure, the pump belongs to the double-pump casing structure of the pump slurry pump, and its wet-end parts are made of high chromium wear-resistant metal and wear-resistant rubber.

    Ups ...!

    Brak danych produktu.

    Wróć do strony głównej

    More Details

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 The pump has a wide range of performance, good vapor corrosion performance, high efficiency  Multi-stage series connection technology can be used to meet the long-distance transmission.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 A variety of materials are available for over-flow parts.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Multiple transmission modes are available for choice, which makes the pump operate under the best industrial and mining conditions  Long service life, high operating efficiency, can meet a variety of harsh conveying conditions.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Long service life of wearing parts, high efficiency, low energy consumption, high reliability, can be multi-stage series connection.

    14-12AH

    Sonraíochtaí

    AH Series Metal Slurry Pump Specifications

    Pump
           Múnla

    S×D
           (inch)

    Allowable
           uas. Power (kw)

    Ábhar

    Clear Water Performance

    Impeller

    Praghsáil

    Capacity Q

    Head
           H(m)

    Luas
           n(r/min)

    Max.Eff.
           η%

    NPSH
           (m)

    Níl. of
           Vanes

    Vane Dia.
           (mm)

    Meáchan
           (kg)

    Impeller

    m3/h

    l/s

    1.5/1B-AH

    1.5×1

    15

    Miotal
           (A05)

    12.6-28.8

    3.5-8

    6-68

    1200-3800

    40

    2-4

    5

    152

    91

    2/1.5B-AH

    2×1.5

    15

    32.4-72

    9-20

    6-58

    1200-3200

    45

    3.5-8

    184

    118

    3/2C-AH

    3×2

    30

    39.6-86.4

    11-24

    12-64

    1300-2700

    55

    4-6

    214

    191

    4/3C-AH

    4×3

    30

    86.4-198

    24-55

    9-52

    1000-2200

    71

    4-6

    245

    263

    4/3D-AH

    4×3

    60

    245

    363

    6/4D-AH

    6×4

    60

    162-360

    45-100

    12-56

    800-1550

    65

    5-8

    365

    626

    6/4E-AH

    6×4

    120

    365

    728

    8/6E/AH

    8×6

    120

    360-828

    100-230

    10-61

    500-1140

    72

    2-9

    510

    1473

    8/6F-AH

    8×6

    260

    510

    1496

    8/6R-AH

    8×6

    300

    510

    1655

    10/8F-AH

    10×8

    260

    612-1368

    170-380

    11-61

    400-850

    71

    4-10

    686

    3193

    10/8ST-AH

    10×8

    560

    612-1368

    170-380

    11-61

    400-850

    71

    4-10

    686

    3750

    12/10F-AH

    12×10

    260

    936-1980

    260-550

    7-68

    300-800

    82

    6

    762

    3760

    12/10ST-AH

    12×10

    560

    936-1980

    260-550

    7-68

    300-800

    82

    6

    762

    4318

    14/12ST-AH

    14×12

    560

    1260-2772

    350-770

    13-63

    300-600

    77

    3-10

    965

    6409

    16/14TU-AH

    16×14

    1200

    1368-3060

    380-850

    11-63

    250-550

    79

    4-10

    1067

    10000

    CONSTRUCTION OF AH slurry pumps

    png100-t3-scale100

    DIMENSION DRAWING

    Dimension Drawing
    Sonraíochtaí
    14-12ST-AH 拷贝
    AH Curves 需要逆时针90度再用 (4)
    AH Curves 需要逆时针90度再用 (4)

    Multiple Driving Models

    2 (12)
    ZVZ Drive
    2 (14)
    DC Drive
    2 (13)
    CV Drive
    1 (14)
    CLZ Drive

    Sealing system

    22 (2)
    Packing Seal
    21 (2)
    Expelelr Seal
    22 (2)
    Packing Seal
    21 (2)
    Expelelr Seal

    Wet-end Parts

    Elastomer Wet-end Components
    High Chrome Wet-end Components
    未标题-1
    金属过流件 (2)

    AH series slurry pumps structure

    三维图 拷贝 (17)
    三维图 拷贝 (17)
    结构 拷贝 (4)
    结构 拷贝 (4)

    Installations of AH Series Slurry Pumps

    图片2 拷贝
    图片2 拷贝
    图片1 拷贝 (3)
    图片1 拷贝 (3)
    图片5 拷贝
    图片5 拷贝
    图片7 拷贝
    图片7 拷贝
