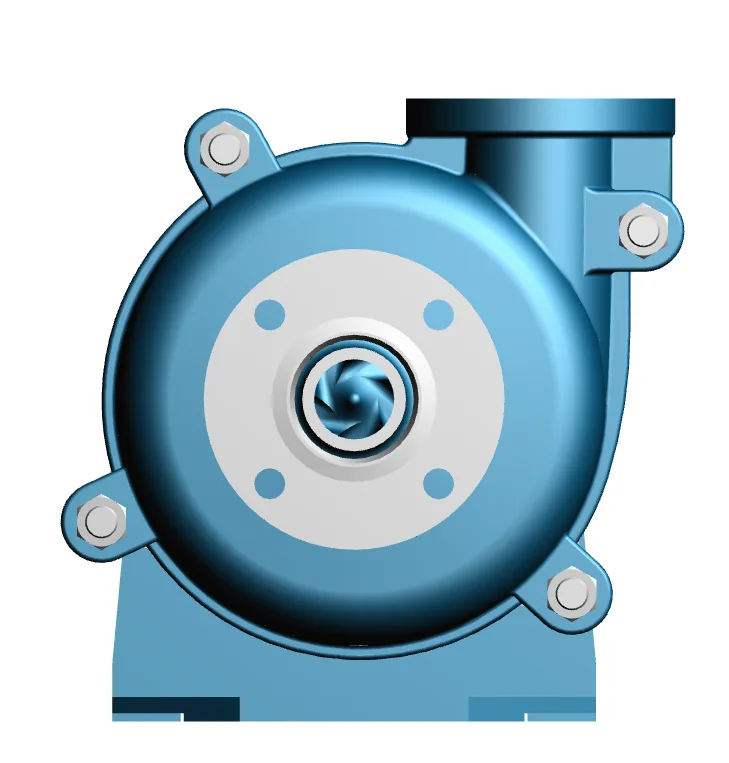

1.5/1B-AH slurry pump is cantilever centrifugal slurry pump, which is suitable for transporting abrasive or corrosive slurry,which is widely used in mineral processing, metallurgy, petroleum, chemical industry, coal mining and other industries. 1.5/1B-AH is heavy-duty slurry pump, suitable for transporting highly abrasive, high-concentration slurry or low-concentration high head slurry. It can be used in series of multiple stages within the maximum allowable working pressure range of the pump.
Introduction of Pump Model
“1.5” means the inlet diameter is 1.5 inches
“1” means the outlet diameter is 1 inches
“B” means the base type
“AH”means the slurry pump series
تحديد
AH Series Metal Slurry Pump Specifications | ||||||||||||
Pump Model | S×D(inch) |
Allowable
| مادة | Clear Water Performance | Impeller |
وزن
| ||||||
Capacity Q |
Head
|
سرعة
|
Max.Eff.
|
NPSH
|
لا. of
|
Vane Dia.
| ||||||
Impeller | m3/h | l/s | ||||||||||
1.5/1B-AH | 1.5×1 | 15 | Metal (A05) | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
Structure of 1.5/1B-AH SLURRY PUMP
CONSTRUCTION OF 1.5/1B-AH SLURRY PUMP
Dimension Drawing
Sealing System
Multiple Driving Models
Wet-end Parts
طلب
