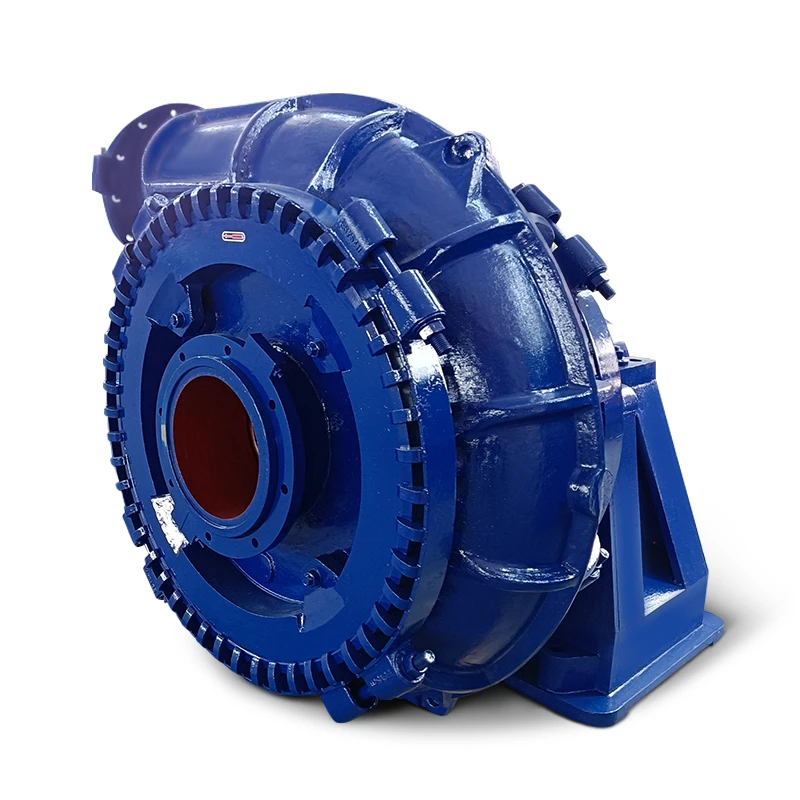

CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 1
CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 1

CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump)

Brand: CNSME

Model Number: SG(Equivalent to warmanG(H))

Minimum Order Quantity: 1set

Delivery Time: 10-14 days

Payment Terms: T/T 100% deposit

Supply Ability: 100 sets per month

Packaging Details: Wooden crate

Contact us for more professional selection guidance

    oops ...!

    Nessun dato di prodotto.

    vai alla pagina principale

    GENERAL INTRODUCTION



    CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 2 Our sand gravel and dredging pumps are designed to provide continuous pumping of highly abrasive slurries containing large particles at high maintained efficiencies with low maintenance and ownership costs.

    CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 3 Our Heavy Duty Gravel Pump is designed for higher head duties such as cyclone feed, long distance pipelines and high static discharge heads.

    CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 4 The range provides excellent wear life while maintaining efficiency during the wear cycle providing a better total operating cost. A wide variety of shaft seals provide a perfect fit for a wide range of applications.

    CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 5 Pass very large solids not capable of being pumped by SH, SBH, or SM series slurry pumps.

    CNSME® SG Series 250G Gravel Pumps Metal Material(Replace Warman 12/10G Sand Pump) 6 Applications like dredging, gravel pumping, large particle solids transport.

    微信截图_20250102145149 拷贝 (2)

    Structure OF 12/10G-G Gravel Pump

    12/10G-G Sand gravel pump
    12/10G-G Sand gravel pump
    12/10G-G Sand gravel pump
    12/10G-G Sand gravel pump

    Presupuesto

    Pump Model

    Allowable Max. Power(kw)

    Clear Water Performance

    Impeller

    Capacity Q

    Head
     H(m)

    Velocidad
        n(r/min)

    Max.Eff.
       η%

    NPSH
      (m)

    No. of
       Vanes

    Vane Dia.
      (mm)

    m3/h

    6/4D-G

    60

    36-250

    5-52

    600-1400

    58

    2.5-3.5

    3

    378

    8/6E-G

    120

    126-576

    6-45

    800-1400

    60

    3-4.5

    391

    10/8F-G

    260

    216-936

    8-52

    500-1000

    65

    3-7.5

    533

    12/10G-G

    600

    360-1440

    10-60

    400-850

    65

    1.5-4.5

    667

    14/12G-G

    600

    432-3168

    10-64

    300-700

    68

    2-8

    864

    18/16T-G

    1200

    720-3600

    10-50

    250-500

    72

    3-6

    1067

    Drive Models

    The pump has a variety of drive models, including DC drive, CR belt drive, ZVZ drive, CV drive and so on. Different drive methods can meet the drive needs of different equipment and working conditions, providing users with more choices and facilitating matching and integration with existing equipment.

    ZVZ Drive
    ZVZ Drive
    DC Drive
    DC Drive
    CV Drive
    CV Drive
    CLZ Drive
    CLZ Drive

    CONSTRUCTION OF 12/10G-G Gravel

    12/10G-G Sand gravel pump

    Sistema de sellado

    Gland Seal
    Gland Seal
    Expeller Seal
    Expeller Seal

    Solicitud

    6-4DG
    6-4DG
    12/10G-G
    12/10G-G
    dredging pump
    dredging pump
    12/10G-G
    12/10G-G
