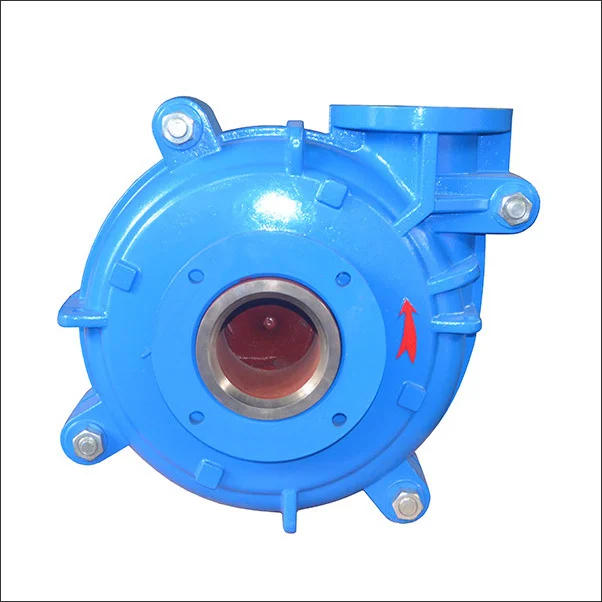

SH/100D is equivalent to 6/4D-AH, a 4” discharge slurry pump, which is also our best seller among our SH series Heavy Duty slurry pumps. SH series slurry pumps are specially desighed for highly abrasive slurries. The wet-end spare parts are available in materials high chrome alloy, or soft natural rubber or polyurethane. The shaft seals are available from gland packing seal, expeller seal and mechanical seal. The SME SH series heavy duty horizontal slurry pumps offer a wide range of world class hard metal and rubber lined slurry pumps for abrasive pumping applications.
材質構造:
| Part Description | Standard | Alternative |
| Impeller | A05 | A33, A49 |
| Volute Liner | A05 | A33, A49 |
| Front Liner | A05 | A33, A49 |
| Back Liner | A05 | A33, A49 |
| Split Outter Casings | Grey Iron | Ductile Iron |
| Shaft | Carbon Steel | SS304, SS316 |
| Shaft Sleeve | SS304 | SS316, Ceramic, Tungstan Carbide |
| Shaft Seal | Expeller Seal | Gland Packing, Mechanical Seal |
| Bearings | ZWZ, HRB | SKF, Timken, NSK etc. |
التطبيقات:
Lime Slurry; Pulp and Paper; Alumina; Fertilizer; In-Plant Slurry Transfer etc.
Performance Curve with Standard Impeller, Metal 5-Vane E4147A05:
