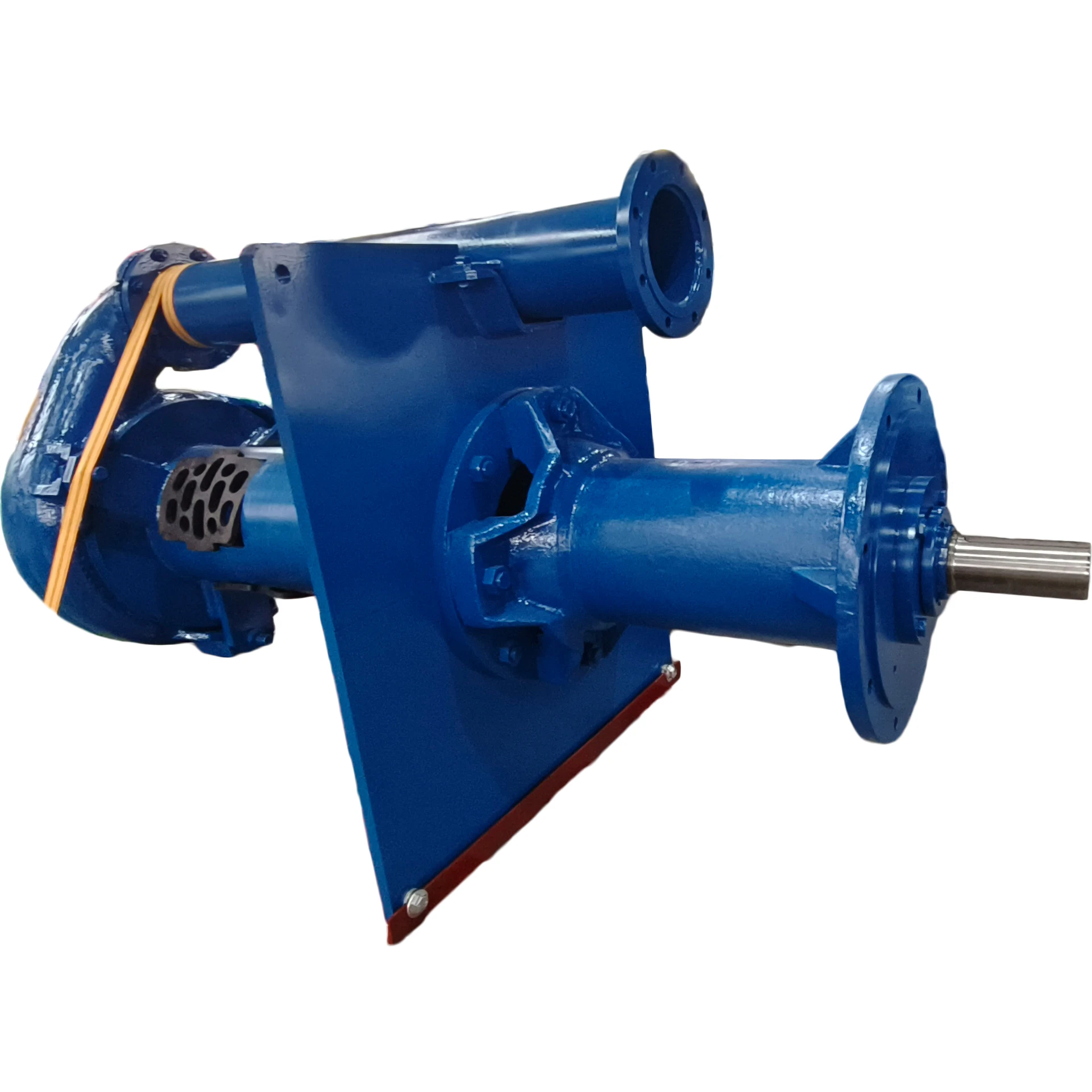

Vertical Cantilever, Single Casing 200SV-SP Sump Slurry Pump

Type 200SV-SP pumps are vertical, centrifugal slurry pumps submerged in sump to work. They are designed for delivering abrasive, large particle and high density slurries.

    Ой ...!

    Нет данных о продукте.

    перейдите на домашнюю страницу

    Structural features

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Vertical cantilevered, single casing structure.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Double suction, open impeller design with carbide or rubber impeller.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Cartridge bearing assembly, selecting high capacity bearing design.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Adjustable clearance between impeller and backliner to ensure efficient pump operation.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 No need for any shaft seal.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Pump and motor can choose direct coupled drive, belt drive.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Wet-end Parts: Wear-resistant and corrosion-resistant high chromium alloy or rubber, polyurethane materials

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Pumping Medium: Abrasive and corrosive slurry containing solid particles

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Use: Immersed in the liquid, without any shaft seal and sealing water, suction insufficient working conditions can be used normally.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 200SV-SP(R) slurry pumps are widely used in mining, electric power, metallurgy, coal, building materials, chemical industry and other sectors

    200SVSP

    Presupuesto

    Specifications of SP(R) Series Vertical Slurry Pumps

    Modelo

    Frame
    Tipo

    Máx.
    Rating
    (kW)

    Sump
    Depth
    mm

    Performance for Clear Water

    Impeller

    Capacity Q

    Head

    Velocidad

    Eficiencia

    Tipo

    No. of
    Vanes

    Vane Φ
    mm

    Passage
    mm

    m3/hr

    metro

    r/min

    %

    40PV-SP

    PV

    15

    900

    10--44

    5--28

    1000-2200

    20-40

    Open

    5

    188

    12

    10--40

    9--37

    1400-2600

    15-32

    Cyclo

    8

    195

    26

    40PV-SPR

    PV

    15

    900

    10--50

    8--52

    1200-3000

    20-40

    Open

    5

    188

    12

    65QV-SP

    QV

    30

    1200

    20--120

    4--56

    600-2000

    25-51

    Open

    5

    280

    15

    20--110

    5--28

    700-1500

    20-35

    Cyclo

    8

    290

    40

    65QV-SPR

    QV

    30

    1200

    20--100

    8--46

    700-850

    20-47.5

    Open

    5

    280

    23

    100RV-SP

    RV

    75

    1500

    50--300

    6--50

    500-1400

    20-56

    Open

    5

    370

    32

    50--250

    6--31

    600-1200

    20-40

    Cyclo

    8

    390

    70

    100RV-SPR

    RV

    75

    1500

    50--270

    9--46

    600-1400

    30-60

    Open

    5

    370

    40

    150SV-SP

    SV

    110

    1800

    100--500

    7--37

    500-1000

    20-55

    Open

    5

    450

    45

    100--450

    7--37

    500-1000

    20-40

    Cyclo

    8

    480

    80

    150SV-SPR

    SV

    110

    1800

    100--450

    7--35

    500-1000

    20-56

    Open

    5

    450

    45

    200SV-SP

    SV

    110

    1800

    200--800

    7--38

    400-850

    30-64

    Open

    5

    520

    65

    250TV-SP

    TV

    200

    1800

    300--1000

    8--35

    400-750

    20-63

    Open

    5

    575

    65

    300TV

    TV

    200

    2100

    360--1400

    5--28

    350-700

    20-62

    Open

    5

    610

    65

    Material Options of Wet-end Parts: A05, A33, A49, A61, R55

    Structure OF VERTICAL CANTILEVER, SINGLE CASING 200SV-SP SUMP SLURRY PUMP

    三维图 拷贝 (5)
    三维图 拷贝 (5)
    结构图 拷贝 (3)
    结构图 拷贝 (3)

    CONSTRUCTION OF Vertical Cantilever, Single Casing 200SV-SP Sump Slurry Pump

    sp 拷贝 (3)

    Dimension Drawing

    Dimension Drawing
    Presupuesto
    12-10ST-AH-O00--
    3 (52)
    pump used in slovakia (1) 拷贝
    pump used in slovakia (1) 拷贝
    pump used in slovakia 拷贝
    pump used in slovakia 拷贝

    Solicitud

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Mining: Pumping slurry, improving the efficiency of ore processing

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Metallurgy: Handling high concentration slurry, guaranteeing production continuity.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Coal: Conveying coal slurry in coal washing process, improving coal washing efficiency.

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 Chemical industry: Conveying corrosive, coarse particles, high concentration slurry, to ensure production safety.
