ZJ series slurry pump | CNSME pump 1
ZJ series slurry pump | CNSME pump 1

ZJ series slurry pump | CNSME pump

Fluid: slurry

Technology: centrifugal

Outlet: 40-300m

Flow Capacity: 8-1826 m³/h

Discharge head: 2-130 m

Domain: for the metallurgical industry, for the mining industry, for the chemical industry

Applications: booster, discharge, high-pressure

Fluid specification: for abrasive fluids

Other characteristics: rugged, single-stage, horizontal mount



    Ups ...!

    Brak danych produktu.

    Wróć do strony głównej

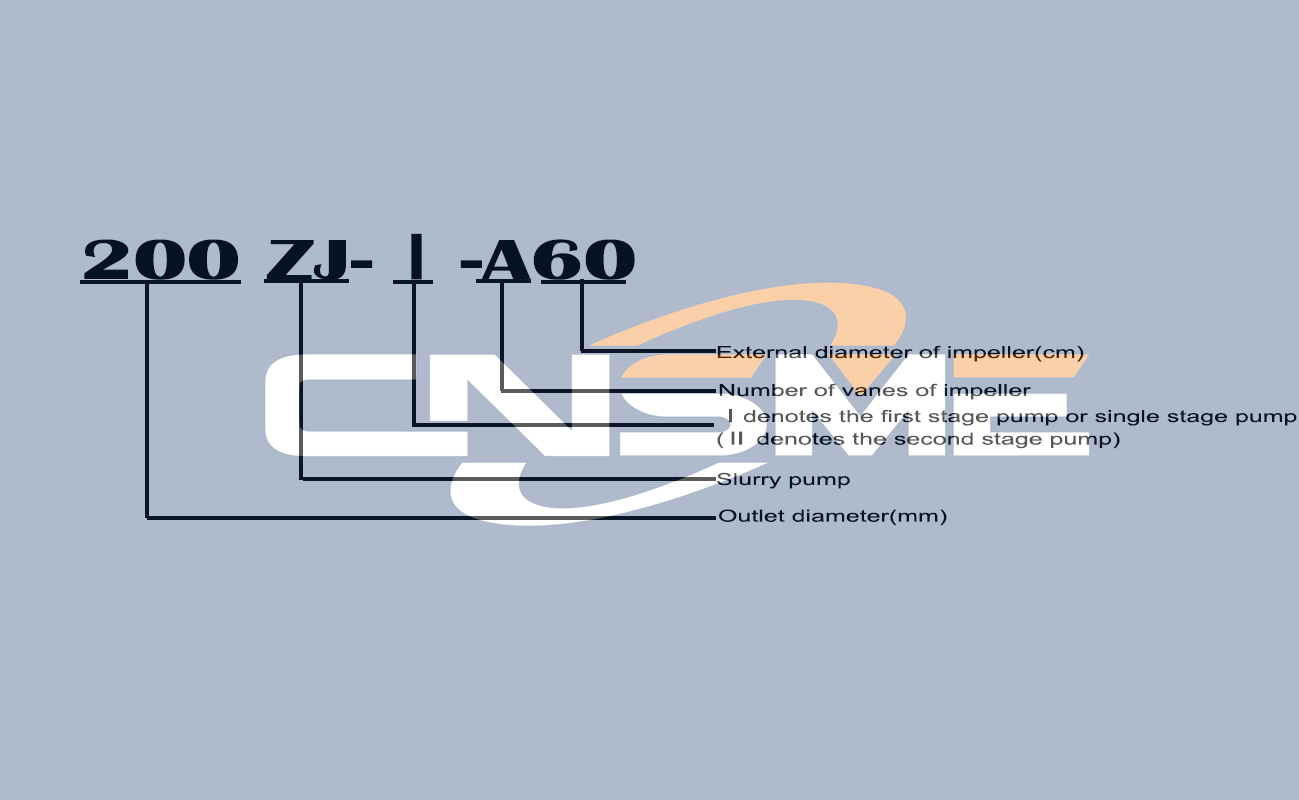

    product features and type notation

    zj-1

    Mode of construction: According to mode of construction,the pumps are classified into single-case and Double-case pumps.Double-case pumps consist of  ZJ,ZJJ and ZJG pump The outlet   diameters of pumps vary from 400mm to 350mm,   300mm,   250mm,   200mm,   150mm,   80mm,   65mm,   50mm,   40mm,etc

    Symbol

    A

    B

    C

    D

    E

    F

    G

    ...

    Number of vanes

    5

    4

    3

    2

    1

    6

    7

    ...



    cnsme®zj slurry pump


    ZJ series slurry pump is a type of single-stage, single-suction, horizontal, cantilevered, centrifugal slurry pump. The ZJ series pumps are used internationally advanced solid-liquid two-phase flow theory and designed using the Minimum-Wear principle.

    ZJ series pumps are suitable for handling abrasive and corrosive solids-bearing slurry with maximum concentrations of wt 45% (ash) and wt 60% (ore). We have all kinds of ZJ series slurry pumps, all of which can be made of direct driven (DC),direct driven via hydraulic coupling(HC), belt driven ,frequency control and they can be operated in tandem and parallel positions according to the requirements of the customer.

    Features:

    ZJ series slurry pump | CNSME pump 3 Simple configuration and easy operation

    ZJ series slurry pump | CNSME pump 4 Equip in-line filter could keep large impurities out of equipment and prevent damaging the vacuum pump.

    ZJ series slurry pump | CNSME pump 5 The standard model of plants is closed type so that using outside easily and have nice appearance

    ZJ series slurry pump | CNSME pump 6 Cased in hard-alloy which is a high anti-wear and high anti-corrosive impact resistance material. Longer service life.

    ZJ series slurry pump | CNSME pump 7 Lower noise and vibration

    The product has the guarantee of our know-how and internationally-certified quality.
