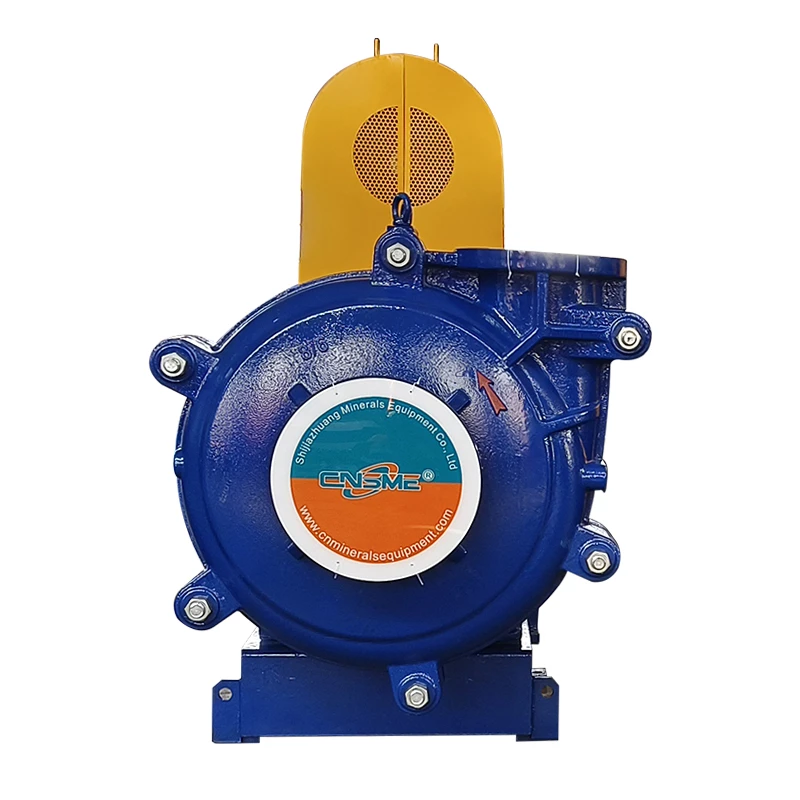

CNSME®8/6F-AH horizontal slurry pump is a high-efficiency, wear-resistant, corrosion-resistant single-stage single-suction, cantilever, horizontal centrifugal slurry pump, which widely used in mining, electric power, metallurgy, coal, chemical industry and other industries. It is suitable for pumping highly abrasive, high-concentration slurry or low-concentration high head slurry. It can be used in multiple stages in series under the pump's max. allowable working pressure range.
Produktvorteile
Double pump casing structure: The frame plate and cover plate are equipped with replaceable wear-resistant metal lining (including impeller, volute, frame plate liner insert, throatbush). The frame plate and cover plate are made of gray cast iron or ductile iron according to the working pressure, vertically split, and connected by bolts.
Good sealing performance: A variety of shaft seals are available, including mechanical seal, expeller seal, and gland seal. To ensure the sealing performance of the pump and prevent liquid leakage.
Technische Daten
AH Series Metal Slurry Pump Specifications | ||||||||||||
Pump
|
S×D
|
Allowable
| Material | Clear Water Performance | Impeller | Pricing | ||||||
Capacity Q |
Head
|
Geschwindigkeit
|
Max.Eff.
|
NPSH
|
NEIN. of
|
Vane Dia.
|
Gewicht
| |||||
Impeller | m3/h | l/s | ||||||||||
1.5/1B-AH | 1.5×1 | 15 |
Metal
| 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
2/1.5B-AH | 2×1.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 | ||
3/2C-AH | 3×2 | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 | ||
4/3C-AH | 4×3 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 | ||
4/3D-AH | 4×3 | 60 | 245 | 363 | ||||||||
6/4D-AH | 6×4 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 | ||
6/4E-AH | 6×4 | 120 | 365 | 728 | ||||||||
8/6E/AH | 8×6 | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 | ||
8/6F-AH | 8×6 | 260 | 510 | 1496 | ||||||||
8/6R-AH | 8×6 | 300 | 510 | 1655 | ||||||||
10/8F-AH | 10×8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 | ||
10/8ST-AH | 10×8 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 | ||
12/10F-AH | 12×10 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 | ||
12/10ST-AH | 12×10 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 | ||
14/12ST-AH | 14×12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 | ||
16/14TU-AH | 16×14 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 1067 | 10000 |
