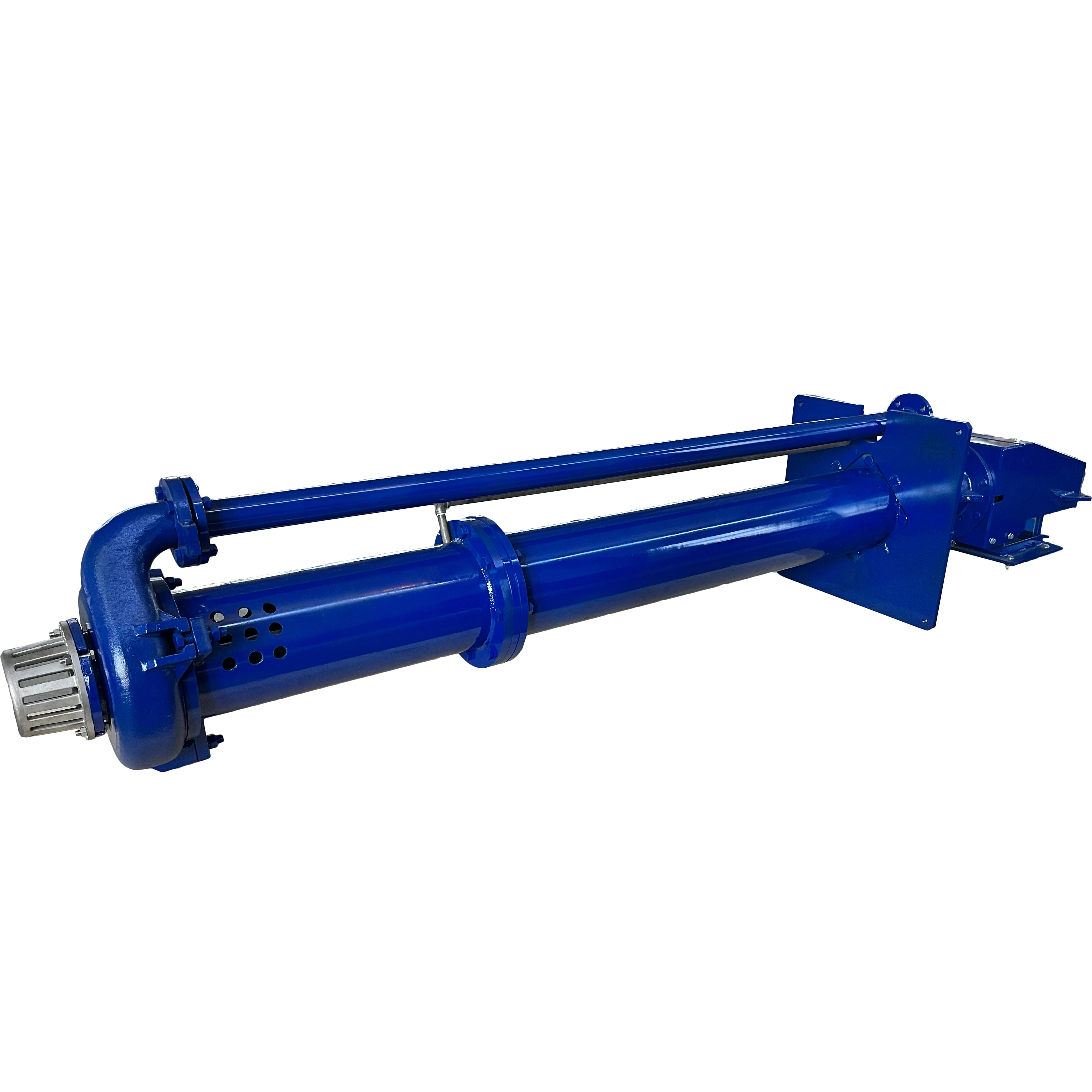

65QVL-SPExtended Shaft Sump Pumps
مضخة الحوض ذات العمود الممتد 65QV-SP هي نوع من معدات النقل المغمورة عالية الكفاءة ومقاومة للتآكل ومقاومة للتآكل، وهي قابلة للتطبيق في مجموعة متنوعة من المجالات الصناعية. إن تصميم العمود الممتد وخصائص التشغيل المغمورة تجعله يعمل بشكل جيد في الآبار العميقة والمسابح العميقة وغيرها من الظروف، وهو الخيار المثالي للتعامل مع الوسائط المعقدة.
Avantajên Product
Extended shaft design enables it to work deep into the liquid, suitable for deep pits, pools and tanks and other submerged environments, effectively solving the problem of conveying deep liquids, which cannot be handled by ordinary pumps.
Vertical design covers a small area, suitable for installation in limited space, especially for mining, metallurgy, chemical industry and other occasions.
Extended shaft design is calibrated by dynamic balance, low vibration and noise during operation, ensuring long-term stable operation of the equipment.
Modular design makes installation and disassembly more convenient, and the extended shaft part can be maintained separately, reducing downtime and maintenance costs.
Capable of conveying medium with high concentration, high viscosity, strong corrosiveness or containing solid particles, widely used in mine tailings, metallurgical slurry, sewage treatment and other fields.
Specifications
Specifications of SP(R) Series Vertical Slurry Pumps | |||||||||||
Cins |
Frame
|
Max.
|
Sump
| Performance for Clear Water | Impeller | ||||||
Capacity Q | Head | Speed | Efficiency | Awa |
No. of
|
Vane Φ
|
Passage
| ||||
m3/hr | m | r/min | % | ||||||||
40PV-SP | PV | 15 | 900 | 10--44 | 5--28 | 1000-2200 | 20-40 | Open | 5 | 188 | 12 |
10--40 | 9--37 | 1400-2600 | 15-32 | Cyclo | 8 | 195 | 26 | ||||
40PV-SPR | PV | 15 | 900 | 10--50 | 8--52 | 1200-3000 | 20-40 | Open | 5 | 188 | 12 |
65QV-SP | QV | 30 | 1200 | 20--120 | 4--56 | 600-2000 | 25-51 | Open | 5 | 280 | 15 |
20--110 | 5--28 | 700-1500 | 20-35 | Cyclo | 8 | 290 | 40 | ||||
65QV-SPR | QV | 30 | 1200 | 20--100 | 8--46 | 700-850 | 20-47.5 | Open | 5 | 280 | 23 |
100RV-SP | RV | 75 | 1500 | 50--300 | 6--50 | 500-1400 | 20-56 | Open | 5 | 370 | 32 |
50--250 | 6--31 | 600-1200 | 20-40 | Cyclo | 8 | 390 | 70 | ||||
100RV-SPR | RV | 75 | 1500 | 50--270 | 9--46 | 600-1400 | 30-60 | Open | 5 | 370 | 40 |
150SV-SP | SV | 110 | 1800 | 100--500 | 7--37 | 500-1000 | 20-55 | Open | 5 | 450 | 45 |
100--450 | 7--37 | 500-1000 | 20-40 | Cyclo | 8 | 480 | 80 | ||||
150SV-SPR | SV | 110 | 1800 | 100--450 | 7--35 | 500-1000 | 20-56 | Open | 5 | 450 | 45 |
200SV-SP | SV | 110 | 1800 | 200--800 | 7--38 | 400-850 | 30-64 | Open | 5 | 520 | 65 |
250TV-SP | TV | 200 | 1800 | 300--1000 | 8--35 | 400-750 | 20-63 | Open | 5 | 575 | 65 |
300TV | TV | 200 | 2100 | 360--1400 | 5--28 | 350-700 | 20-62 | Open | 5 | 610 | 65 |
Material Options of Wet end Parts: A05, A33, A49, A61, R55 | |||||||||||
CONSTRUCTION OFSP(R) Series Vertical Slurry Pumps
Dimension Drawing
Structure Characteristics
Vertical cantilever type, single pump casing structure: without any shaft seal, immersed in the liquid work, suitable for conveying abrasive, coarse particles, high concentration slurry Wear resistant and corrosion resistant materials: the pump casing and impeller are made of wear-resistant and corrosion resistant materials, which can run for a long time under the harsh working environment.
