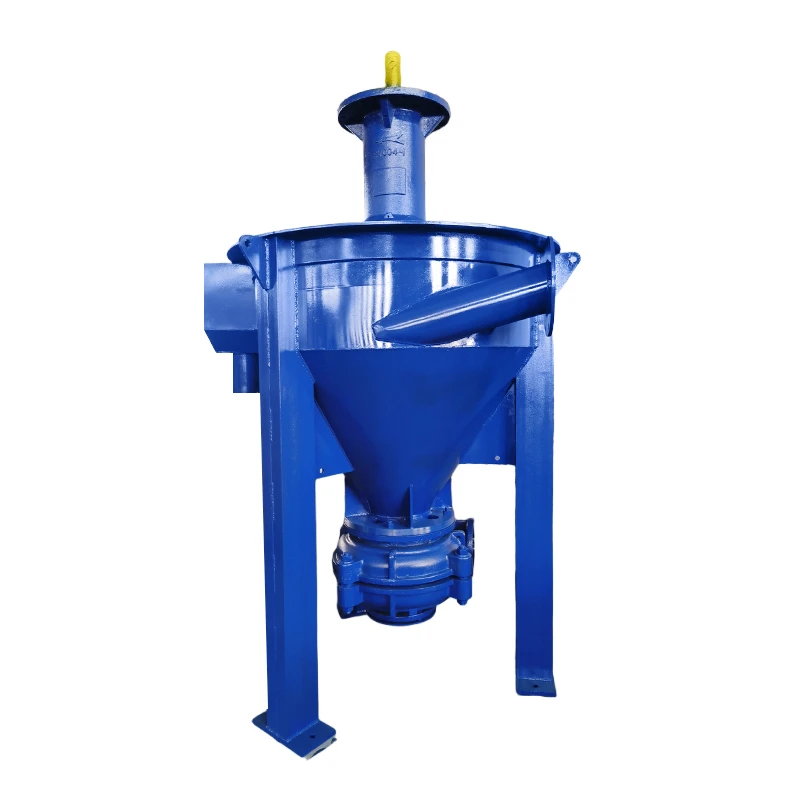

3QV-AF froth pump 1
3QV-AF froth pump 2
3QV-AF froth pump 1
3QV-AF froth pump 2

3QV-AF froth pump

The AF froth pump has a simple structure, high degree of universality, and easy to install and use.  The transmission part of this type of pump is common to that of SP and SPR series slurry.  The bearing housing is equipped with a motor seat, that is direct drive or belt drive can be used.  The belt pulley can be conveniently replaced to change the speed of the pump to meet the changes in working conditions.

AF froth pumps are widely used in chemical, petroleum, pharmaceutical, papermaking, food, water treatment and other industries.  It main function is to mix liquid and gas evenly to form a foamy substance, so as to achieve the purpose of transportation.  When installing the AF froth pump, first ensure the stability and stability of the installation position to avoid failures caused by vibration or instability.  At the same time, it is necessary to ensure that the motor is in alit with the pump shaft to ensure the normal operation of the pump.  In addition, the fastening of each connection part should be checked to prevent leakage or damage caused by loosening.

    وجه الفتاة...!

    لا توجد بيانات المنتج.

    الذهاب إلى الصفحة الرئيسية

    More details

    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 During use, the operating status of the pump, such as bearing temperature, sealing performance, etc., should be checked regularly to ensure the normal operation of the pump  At the same time, pay attention to observe the working noise and vibration of the pump  If there is any abnormality, it should be stopped for inspection immediately  For pumps that have been inactive or backup for a long time, they should be maintained regularly to extend their service life.


    Highly efficient and Wear-resistant: industrial solutions for 12/10ST-AH slurry pumps 3 AF froth pump also needs to be operated safely during use  Before starting the pump, make sure that there is no leakage in the system to avoid accidents  During the operation of the pump, it is strictly forbidden to touch the rotating parts with your hands or other objects to avoid injury  At the same time, it is necessary to ensure that the pump’s inlet and export are unimpeded to prevent damage to the pump caused by blockage.

    未标题-1 (29)

    Specifikace

    Model

    Moc

    Kapacita

    Head

    Speed

    Eff.

    Inlet dia.

    Outlet dia.

    P(KW)

    Q(m 3 /h)

    H(m)

    n(r/min)

    ŋ%

    (mm)

    (mm)

    2QV-AF

    3-15

    6-43

    6-30

    800-1800

    45

    100

    50

    3QV-AF

    3-18.5

    23-78

    5-28

    700-1500

    55

    150

    75

    4RV-AF

    5.5-37

    33-187

    5-28

    500-1050

    55

    150

    100

    6SV-AF

    15-75

    80-393

    5-25

    250-680

    55

    200

    150

    8SV-AF

    37-110

    126-575

    5-26

    350-650

    55

    250

    200

    Structure OF 2QV-AF FROTH PUMP

    1 (80)
    1 (80)
    2 (64)
    2 (64)

    CONSTRUCTION OF 2QV-AF froth pump

    图片 拷贝 (5)

    DIMENSION DRAWING

    微信图片_20250102140752 拷贝 2

    Aplikace

    Froth pump 拷贝 2
    Froth pump 拷贝 2
    微信图片_20241212135346 拷贝
    微信图片_20241212135346 拷贝
    照片 003 拷贝
    照片 003 拷贝
