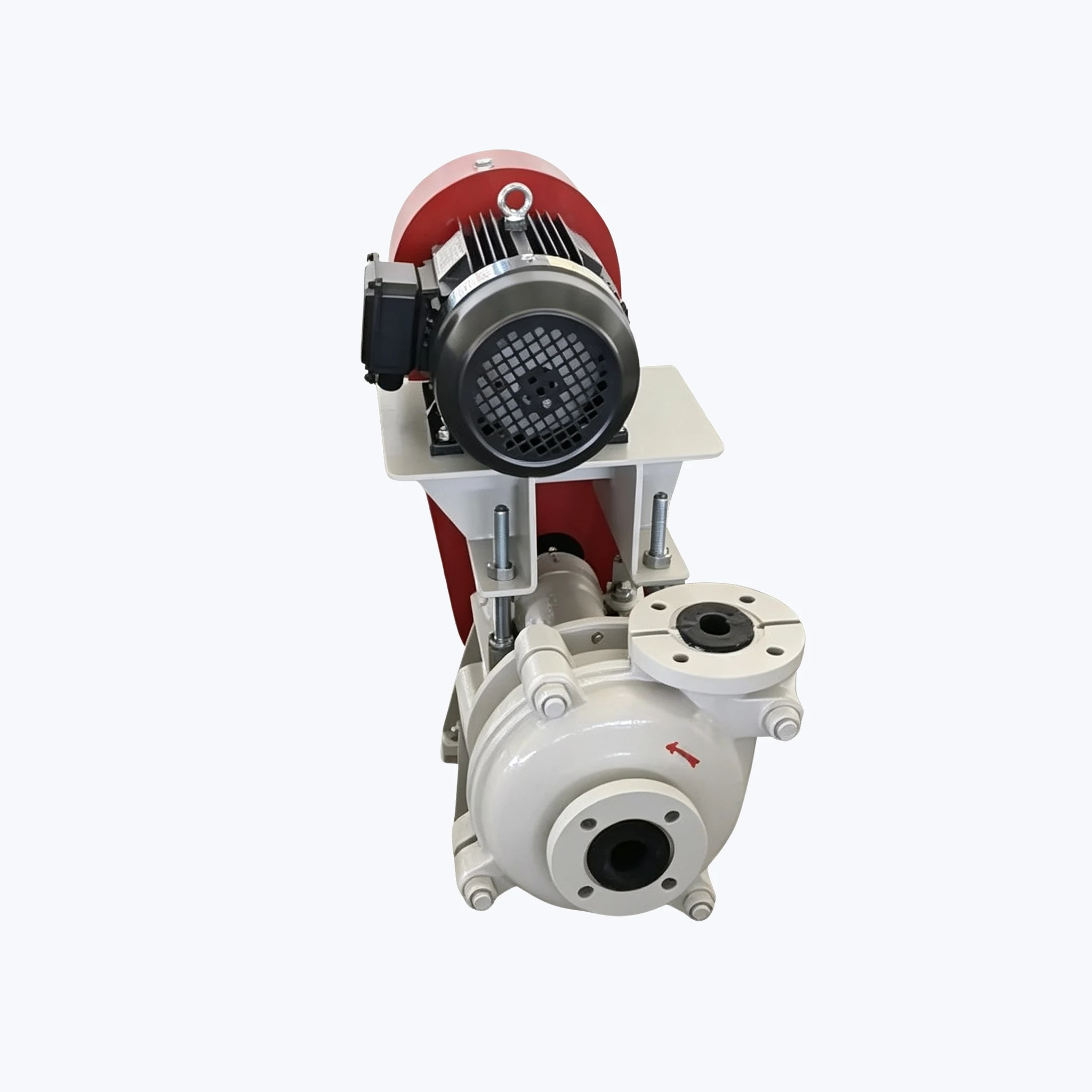

1.5/1B AH slurry pump

Model:1.5/1B AH

Max.Power(kw):15

Meterials:

Liner:Metal;

Impeller:Metal

Clear Water Performance:

Capacity Q(m3/h):12.6-28.8

Head H(m):6-68

Speed n(rpm):1200-3800

Eff. η(%):40

NPSH(m):2-4

Impeller Vane No.:5


    وجه الفتاة...!

    لا توجد بيانات المنتج.

    الذهاب إلى الصفحة الرئيسية

    Thorough defect detection greatly guarantees the product quality.

    1.5/1B-AH Slurry Pump is end-suction, split-case, centrifugal slurry pumps have set the world standard for heavy duty abrasive pumping applications. With large shaft diameters, heavy duty bearing assemblies and robust slurry pumping capacity, Application customization comes standard with this line by applying a wide variety of metallic and elastomeric parts options, an assortment of seal arrangements, and a standard impeller adjustment mechanism incorporated into every base assembly.

    Design Features:


    Slurry Pump wet parts are made of wear-resistant high chromium alloy.

    Slurry Pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication. International famous bearing

    The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.

    The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.

    There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

    Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.

    1.5/1 B AH Slurry Pumps Applications:

    The 1.5/1 B AH Slurry Pumps is used for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc

    CNSME® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.

    CNSME® 1.5/1 B AH slurry pumps and spares are only interchangeable with Warman® 1.5/1 B AH slurry pumps and spares.



    CNSME® is a registered trademark. CNSME® Pumps do not represent a registered trademark of Weir Warman and are not affiliated with Warman® in any way. All names, numbers, symbols and descriptions are for informational purposes only and do not mean that any part or pump listed is a product of Weir pumps.
