Discharge size range: 50mm to 200mm [2’’ ل 8’’]
Flowrates to: 570m3/hr [2,500GPM]
Heads to: 30m [98ft]
Choose a matching froth pump to contact us
KEY FEATURES
Integrated unit for layout flexibility
Smooth operation of the open vortex created in the sump and vertical “wet end” inlet prevents air locking
Cantilever design does not require submerged bearings or shaft seals
The conical tank design with its tangential inlet creates an open vortex
Wear resistant wet-end parts guarantees a long performance life
Pump shaft is carried in grease lubricated anti-friction bearings
تحديد
نموذج | قوة | Capacity | Head | سرعة | Eff. | Inlet dia. | Outlet dia. |
P(KW) | Q(m3/h) | H(m) | n(r/min) | ŋ% | (mm) | (mm) | |
2QV-AF | 3-15 | 6-43 | 6-30 | 800-1800 | 45 | 100 | 50 |
3QV-AF | 3-18.5 | 23-78 | 5-28 | 700-1500 | 55 | 150 | 75 |
4RV-AF | 5.5-37 | 33-187 | 5-28 | 500-1050 | 55 | 150 | 100 |
6SV-AF | 15-75 | 80-393 | 5-25 | 250-680 | 55 | 200 | 150 |
8SV-AF | 37-110 | 126-575 | 5-26 | 350-650 | 55 | 250 | 200 |

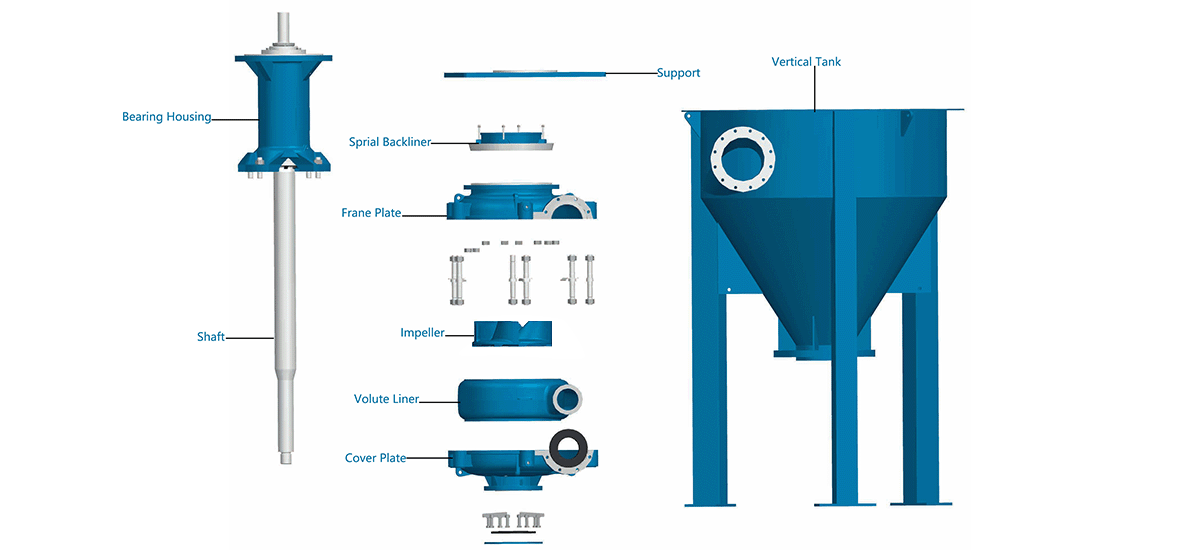

Structure of AF VERTICAL FROTH PUMP
CONSTRUCTION OF AF VERTICAL FROTH PUMP
